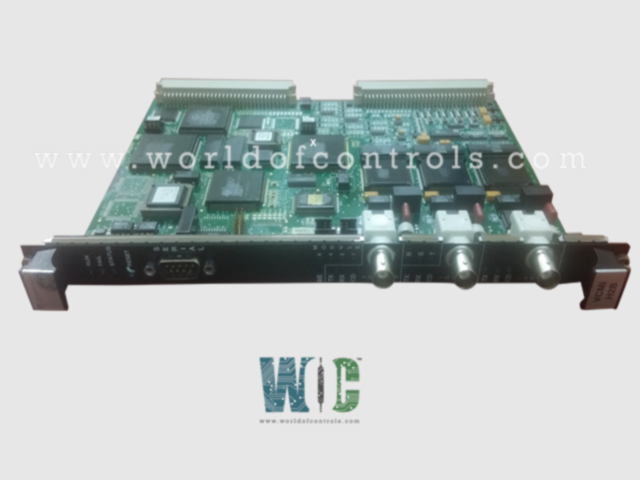

IS200VCMIH2B - VME Bus Master Controller Board

SPECIFICATIONS

Part Number: IS200VCMIH2B
Manufacturer: General Electric
Series: Mark VI
Product function: VME Bus Master Controller Board
Board Type: 6U high VME board
Size: 0.787 inch wide
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

IS200VCMIH2B is a VME bus master controller board developed by GE. It is a part of Mark VI control system. The VCMI board in the control and interface module communicates internally with the I/O boards in its rack and via the IONet with the other VCMI cards. There are two versions, one for simplex systems with one Ethernet IONet port and one for TMR systems with three Ethernet ports. A single cable connects one control module to one or more interface modules in simplex systems. In TMR systems, the VCMI with three separate IONet ports communicates with the three I/O channels Rx, Sx, and Tx, as well as the two other control modules.

Features

• The VCMI board uses Software Implemented Fault Tolerance (SIFT) voting.
• Each of the R, S, and T VCMI boards votes on input data from each of the IONet connections. The results are sent to the controllers' control signal databases via the backplane VME bus.
• IONet can support multiple I/O racks, each with its own VCMI board. A second IONet port on the VCMI can be used as a parallel IONet to increase data throughput for applications requiring low latency.
• Processor: Texas Instruments TMS320C32 32-bit digital signal processor

Memory

• Dual-port memory, 32 Kbytes in 32 bit transfer configuration
• SRAM, 64k x 32
• Flash memory, 128k x 8

Communication

• Three lONet 10 Base2 Ethernet ports, BNC connectors, 10 Mbits/sec
• VME bus block transfers
• 1 RS-232C Serial port, male "D" style connector, 9600, 19,200, or 38,400 bits/sec
• 1 Parallel port, eight bit bi-directional, EPP Version1.7 mode of IEEE 1284-1994

Frame Rate

• 10 ms (100 Hz) for simplex
• 40 ms (25 Hz) for TMR

WOC is happy to assist you with any of your automation requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is IS200VCMIH2B?
It is a VME bus master controller board developed by GE.

What is a VME Bus Master Controller Board?
A VME Bus Master Controller Board is a type of electronic board that serves as a master controller for devices connected to a VME (Versa Module Europa) bus. It is used for high-performance computing applications that require reliable data transfer and real-time processing.

What is the function of the VCMI board in the Mark VI control system?
The VCMI board in the Mark VI control system is a control and interface module that communicates internally with the I/O boards in its rack and via the IONet with the other VCMI cards. It serves as a master controller for devices connected to the VME bus.

What is the IONet in the Mark VI control system?
The IONet is a proprietary communication protocol used to connect the VCMI cards and other devices in the system.

What are the two versions of VCMIH2B VME Bus Master Controller Board?
The two versions of the VME Controller Board are one for simplex systems with one Ethernet IONet port and one for TMR (Triple Modular Redundancy) systems with three Ethernet ports.
