World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
IS200HFPAG1ADC - HF AC Supply Board is available in stock which ships the same day.
IS200HFPAG1ADC - HF AC Supply Board comes in UNUSED as well as REBUILT condition.
To avail our best deals for IS200HFPAG1ADC - HF AC Supply Board, contact us and we will get back to you within 24 hours.
Part No.: IS200HFPAG1ADC
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Product Type: High-Frequency AC supply board
Availability: In Stock
Series: Drive Control

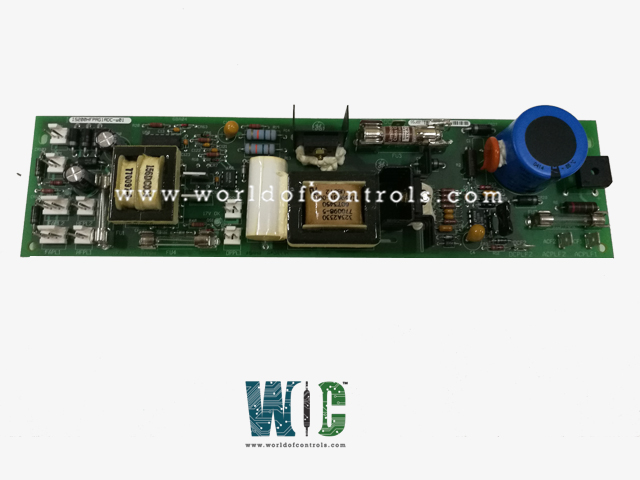

IS200HFPAG1ADC is a High Frequency AC supply board developed by GE. It is a part of Drive Control excitation system. The board stands as a crucial component within the system, designed to receive input voltage, whether in AC or DC form, and convert it into multiple output voltages. This conversion process is facilitated by various features and components integral to the board's functionality.
Equipped with four stab-on connectors, the board caters to voltage inputs from both AC and DC sources. Additionally, it features eight plug connectors designated for output voltages, allowing efficient distribution of the converted voltages.
To safeguard the circuitry, the board integrates four onboard fuses. Furthermore, two LED indicators offer crucial updates on the status of the voltage outputs, facilitating continuous monitoring of the board's functionality.
A self-oscillating power supply inverter is among the key components, pivotal for the voltage conversion process. The board incorporates multiple heat sinks strategically placed to dissipate heat generated by the components, ensuring optimal operational conditions.
The board is distinctly marked with its identification number, the GE logo, and codes aiding in wiring and location identification. However, it does not feature configurable hardware components.
Ensuring safety during replacement procedures, it is imperative to completely remove power from the drive for several minutes, allowing capacitors to discharge fully. Detailed instructions for installation or removal can be found in original manuals or data sheets provided by General Electric.
The four stab-on connectors on the board serve specific purposes, with ACF1 and ACF2 designated for isolated 230VAC inputs, while DCF1 and DCF2 cater to the positive and negative inputs from the DC link. Comprehensive information regarding the usage of these connectors can be found in associated manuals and user guides.
The WOC team is always available to help you with your Drive Control requirements. For more information, please contact WOC.
What is IS200HFPAG1ADC?
It is a High Frequency AC supply board developed by GE under the Drive Control series.
How many stab-on connectors and plug connectors are available on the board, and what are their functions?
The board incorporates four stab-on connectors, catering to both AC and DC voltage inputs, and features eight plug connectors designated for distributing converted output voltages.
Which critical components contribute to voltage conversion, and how is heat managed on the board?
The board includes a self-oscillating power supply inverter essential for voltage conversion. It also integrates multiple heat sinks to dissipate heat generated by the components, ensuring optimal operational conditions.
