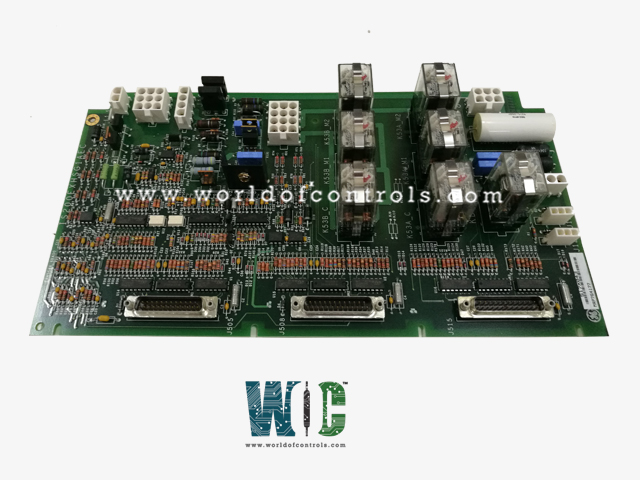

IS200EXHSG1AEC - Exciter High-Speed Relay Driver Board

SPECIFICATIONS:

Part Number: IS200EXHSG1AEC
Manufacturer: General Electric
Series: EX2100
Product Type: Exciter High-Speed Relay Driver Board
Power to Relay Coil: 125 V dc
Operating temperature: -30 to +65°C
Size: 33.02 cm high x 10.16 cm
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEI-100475A

FUNCTIONAL DESCRIPTION:

IS200EXHSG1AEC is an Exciter High-Speed Relay Driver Board manufactured and designed by General Electric as part of the EX2100 Series used in GE Excitation Control Systems. The IS200EXHS Exciter High-Speed Relay Driver (EXHS) board is used in the EX2100 Excitation Control and provides drivers for the dc contactors (41), and pilot relays for de-excitation and field flashing. These boards cable to three IS200EMIO Exciter Main Input/Output Boards (EMIO, redundant control) or one EMIO board (simplex control) through the IS200EBKP Exciter Backplane Board (EBKP). Pilot relays for the flashing relays 53A and 53B are located on the board, plus pilot relays for the de-excitation relay KDEP. De-excitation status signals from the IS200EDEX Exciter De-Excitation Board (EDEX) are conditioned on EXHS and sent to EMIO. Crowbar status signals from the DS200EXDE De-Excitation Control Board (EXDE) are conditioned on EXHS and sent to EMIO.

FEATURES:

• High-Speed Operation: The relay driver board is designed for high-speed applications, ensuring quick and precise relay switching.
• Multiple Relay Outputs: It typically supports multiple relay outputs, allowing control over various devices or circuits.
• Compatibility: The board is often compatible with a range of relay types, providing flexibility in application and integration.
• Input Signal Compatibility: Supports a variety of input signal types, such as digital or analog signals, making it adaptable to different control systems.
• Low Latency: Designed for low latency operation, ensuring minimal delay between the input signal and relay activation.
• Compact Form Factor: Often comes in a compact form factor, making it suitable for applications with space constraints.
• Protection Mechanisms: Incorporates protection features like overcurrent protection, overvoltage protection, and short-circuit protection to safeguard the relay board and connected devices.
