IS200DRLYH1A - Relay Output Terminal Board is available in stock which ships the same day.
IS200DRLYH1A - Relay Output Terminal Board comes in UNUSED as well as REBUILT condition.
To avail our best deals for IS200DRLYH1A - Relay Output Terminal Board, contact us and we will get back to you within 24 hours.
Part Number: IS200DRLYH1A
Manufacturer: General Electric
Series: Mark VI
Product Type: Terminal Board
Repair: 3-5 Days
Product of Origin: United States
Availability: In Stock
Manual: GEH-6421J
IS200DRLYH1A is a Compact Relay Output Terminal Board manufactured and designed by General Electric. It is a part of the Mark VI Series used in Speedtronic Gas turbine control systems. A wall-mountable compact relay output terminal board is called DRLY (not DIN-rail mounting). The board connects to the VCCC or VCRC processor board with a single cable and features 12 form-C dry contact output relays. The larger TRLY terminal board's larger 37-pin cable connector is the same. For a total of 24 contact outputs, two DRLY boards can be coupled to the VCCC or VCRC.
A metal plate that the DRLY board rests upon can be fixed to a wall using four screws. The terminal blocks' odd-numbered screws are directly connected to the 12 relay outputs by wire. The numbered receptacles on the board can accept the high-density Euro-Block type terminal blocks. For the SCOM (chassis ground) connection, which has two distinct screws on TB2, the distance should be as little as possible.

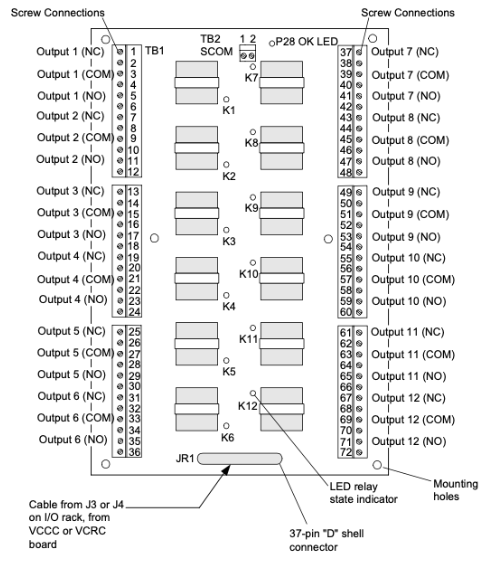

Fig 1: DRLY Wiring and Cabling
The solenoid source power is excluded from DRLY. Per relay, there is a single set of dry contacts with two normally open (NO) contacts connected in series. Contrary to TRLY, there is no relay state monitoring or onboard suppression. A green LED serves as an indicator for the 28 V dc power that the VCCC or VCRC supply to the relay coils. A yellow LED on the board of each relay shows the voltage across the coil. The relays automatically go into a de-energized state when the control cable is disconnected.

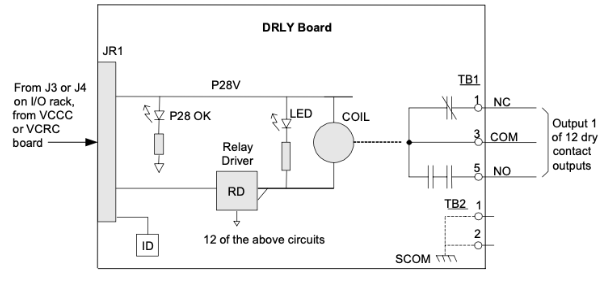

Fig 2: DRLY Board Circuits
WOC has the largest stock of GE Speedtronic Mark VI OEM Replacement Parts. We can also repair your faulty boards. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.
What is IS200DRLYH1A?
IS200DRLYH1A is a Compact Relay Output Terminal Board developed by General Electric and used in gas turbine control systems.
What is the shipping time for a WOC?
WOC maintains a large inventory and can fulfill many orders on the same day. Please contact us for additional information.
How to Check Price and Availability For Terminal Board?
Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.
