World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

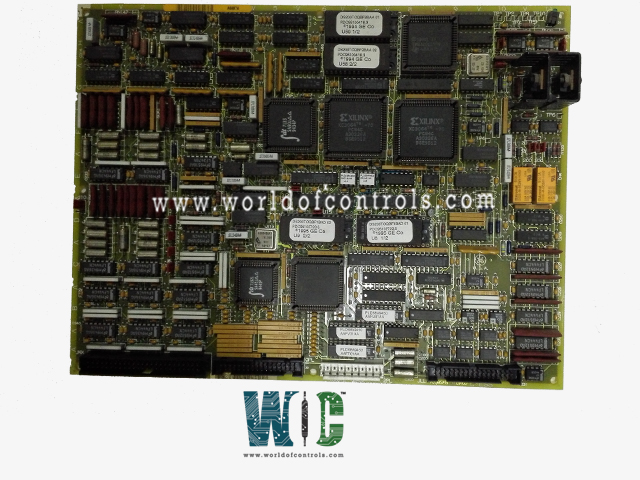

DS200TCQBG1BCA - RST Extended Analog I/O Board is available in stock which ships the same day.
DS200TCQBG1BCA - RST Extended Analog I/O Board comes in UNUSED as well as REBUILT condition.
To avail our best deals for DS200TCQBG1BCA - RST Extended Analog I/O Board, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part Number: DS200TCQBG1BCA
Manufacturer: General Electric
Series: Mark V
Signal Type: Analog (voltage and current)
Product Type: Analog I/O Board
Current Input Range: �20mA
Voltage Input Range: �10V
Output Range: �10V or 0-20mA
Output Range: �10V or 0-20mA
Input Voltage: 24 VDC
Dimensions: 13.50 x 9.00 x 2.00
Weight: 1.80 lbs
Product of Origin: United States
Availability: In Stock
Manual: GEH-6195F
FUNCTIONAL DESCRIPTIONS:
DS200TCQBG1BCA is an RST Extended Analog I/O Board manufactured and designed by General Electric as part of the Mark V Series used in GE Speedtronic gas turbine control systems. The TCQB multifunction card is located in the R, S, and T cores in location 3. For Simplex applications, only one card is required for the
The TCQB card is used in steam Simplex and certain TMR applications where proximity transducers are required. The card features hardware jumpers that must be correctly positioned for inputs 1, 2, & 3, depending on whether proximity transducers or accelerometers are connected. The Mark V system supports both exciting accelerometer vibration sensors and scaling accelerometer feedback signals. The first three input points for proximity transducers or accelerometers (PRX01, PRX02, PRX03) on the TCQB I/O card can be configured to accept accelerometer inputs by adjusting the I/O configuration constants and setting the jumpers appropriately.
WOC has the largest stock of GE Drive Control System Replacement Parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly contact our team by phone or email.
What is the RST Extended Analog I/O Board used for?
The RST Extended Analog I/O Board is used in turbine control systems to expand the number of analog input and output channels. It handles signals from various field devices, such as sensors, actuators, and feedback systems, ensuring real-time data processing and control in industrial and power generation applications.
How does the RST Extended Analog I/O Board communicate with the turbine control system?
The board integrates with turbine control systems, such as the GE Mark V or Mark VI, using standard communication protocols specific to the system. It typically connects via dedicated communication ports or terminals for seamless integration.
How many input/output channels does the RST Extended Analog I/O Board have?
The RST Extended Analog I/O Board typically includes a variety of channels, with the capacity for 16 or more input/output points, depending on the specific configuration. This allows for the handling of multiple analog signals simultaneously.
