World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
DS200TCCAG1B - Common Analog I/O Board is available in stock which ships the same day.
DS200TCCAG1B - Common Analog I/O Board comes in UNUSED as well as REBUILT condition.
To avail our best deals for DS200TCCAG1B - Common Analog I/O Board, contact us and we will get back to you within 24 hours.
Part No.: DS200TCCAG1B
Manufacturer: General Electric
Country/Region of Manufacture: United States of America
Product Type: Common Analog I/O Board
Series: Mark V

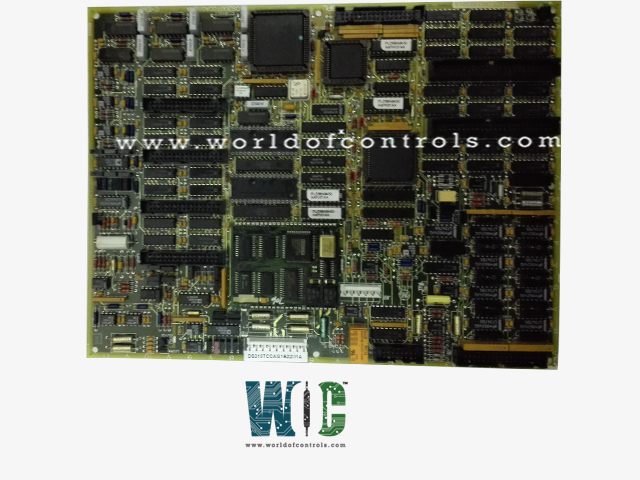

DS200TCCAG1B is a Common Analog I/O Board developed by GE under Mark V series. The CTBA, TBQA, and TBCA terminal boards positioned in the R5 core send analog signals to the Common Analog I/O Board (TCCA), which is situated in the R5 core. 420 mA inputs and outputs, RTD inputs, thermocouple inputs, shaft voltage inputs, and shaft current inputs are some of the signals that make up this group. Through the 3PL connector, the signals are written to the STCA board.
On the board, there are three hardware jumpers labeled J1, JP2, and JP3. The serial RS232 port can be enabled or disabled using J1. For card testing, the oscillator is turned off using JP2. For factory testing, JP3 is used.
The HMI's I/O Configuration Editor is where the settings for the thermocouples, RTDs, mA inputs and outputs, and shaft voltage and current are entered.
The circuitry for the 4-20 mA input signals is provided by the board.
Through the JBB connector, the signals are read from the CTBA terminal board. The voltage drop is measured by the board and written to the I/O Engine via the 3PL connector as the transducer current is reduced across a burden resistor.
The circuitry for driving 420 mA outputs to the CTBA terminal board via the JAA connector is provided by the board. Typically, these signals are utilized to power distant instruments for monitoring.
The circuitry that draws excitation for the RTDs from the TBCA terminal board. When the temperature varies, the resistance changes, causing the voltage on the RTD to change. A constant current is fed through the RTD. The voltage signal is measured, scaled, and adjusted by the board. The board reads the RTD signals from the TBCA terminal board via the JCC and JDD connectors. The 3PL connector is used to transmit the signals to the I/O Engine. I/O configuration constants are used to choose the kind of RTD.
The TBQA terminal board reads the thermocouple inputs. The cold junction circuitry on the TBQA terminal board produces the cold junction signals. It computes the cold junction compensation using these variables. The actual temperature read by the thermocouple is determined using the thermocouple input and compensation value. Through the 3PL connector, the I/O Engine reads the value. I/O configuration constants are used to choose the types and curves of thermocouples.
The board is in charge of monitoring the voltage and current of the turbine shaft. The JBB connector is used to read these signals from the CTBA terminal board. Through the 3PL connector, the signals are written to the I/O Engine.
WOC experts are always available to help you with your GE turbine control component requirements. For more information, please contact WOC.
What is DS200TCCAG1B?
DS200TCCAG1B is a Common Analog I/O Board developed by GE under Mark V series.
Where is this component located?
The component is located in the R5 core.
What is the board's input current rating?
The input current rating is 4-20 mA.
