World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
DS200TBQAG1A - Thermocouple Termination Module is available in stock which ships the same day.
DS200TBQAG1A - Thermocouple Termination Module comes in UNUSED as well as REBUILT condition.
To avail our best deals for DS200TBQAG1A - Thermocouple Termination Module, contact us and we will get back to you within 24 hours.
SPECIFICATIONS
Part Number: DS200TBQAG1A
Manufacturer: General Electric
Series: Mark V LM
Product Type: Terminal Board
Weight: 3 kg
Dimensions: 38 × 36 × 32 cm
Product of Origin: United States
Availability: In Stock
Manual: GEH-6153

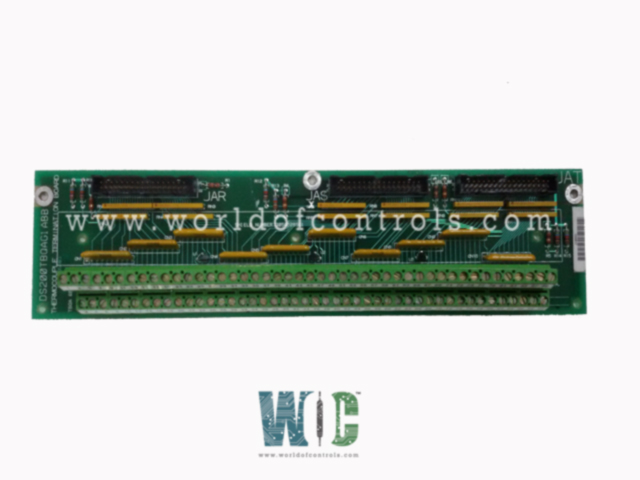

DS200TBQAG1A is a Thermocouple Termination Module manufactured and designed by General Electric as part of the Mark V LM Series used in gas turbine control systems. The R1 and R5 cores contain the TBQA (Thermocouple Termination Module). 45 thermocouple input signals can be received by the TBQA terminal board. The TBQA in R1 distributes its input signals in the following ways: 15 signals (thermocouples #1 through #15) go to the TCQA in R1, 15 signals (thermocouples #16 through #30) go to the TCQA in the core of R2, and 15 signals (thermocouples #31 through #45) go to the TCQA in R3. 42 thermocouple input signals are connected to the TCCA board in "R5" and can be received by the TBQA board in "R5". The circuits for compensating for cold junctions are likewise provided by the TBQA board.
TBQA CONNECTIONS:
JAR - Writes the cold junction signal and the thermocouple signals #1 through #15 to the TCQA board in the core. The thermocouple signals #1 through #15 and the cold junction signal are written to the TCCA board in the core from the core.
JAS - Writes the cold junction signal and thermocouple signals #16 through #30 to the TCQA board in the core. The thermocouple signals #16 through #30 and the cold junction signal are written to the TCCA board in the core from the core.
JAT - Thermocouple signals #31 through #45 and a cold junction signal are written to the TCQA board in the 'R3' core from the 'R1' core. The thermocouple signals #31 through #42 and the cold junction signal are written from the R5> core to the TCCA board in the R5> core.
THERMOCOUPLE INPUTS:
Three groups of 15 people each make up the TBQA terminal board, one group for each core, and each group has its own solid-state cold junction compensation. Typically, control and trip purposes are handled by the thermocouple inputs. 42 thermocouples that are mounted on a TBQA terminal board inside the R5 core can be monitored by the R5 controller. Three groups of fourteen inputs each having a distinct solid-state cold junction correction make up this group of inputs. R5 inputs are usually solely used for monitoring; they are never utilized for control or trip.
WOC has the largest stock of GE Speedtronic Mark V LM OEM Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.
FREQUENTLY ASKED QUESTIONS
What type of signals does the RST Terminal Board have?
A DS200TBQAG1A termination is used for signals from C or RST thermocouples.
What is the number of inputs on the Terminal Board?
There are 42 inputs. The inputs of the board handle thermocouple terminations and cold junction compensation.
