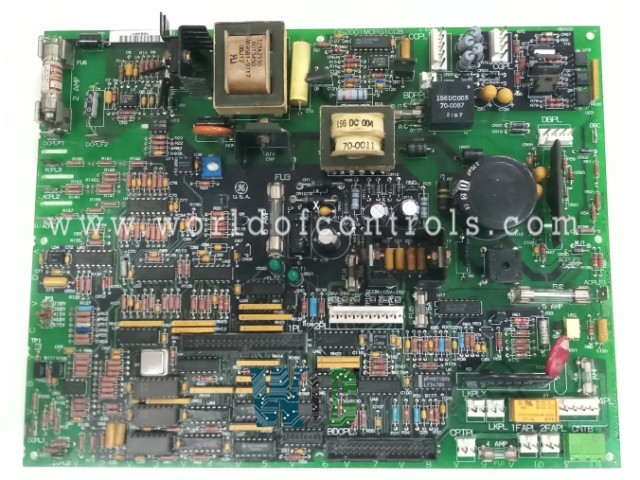

DS200IMCPG1CCB - I/O Power Supply Interface Module

SPECIFICATIONS:

Part Number: DS200IMCPG1CCB
Manufacturer: General Electric
Series: Drive Control
Product Type: I/O Power Supply Interface Module
Power Supply Input: 100-240V AC
Output Voltage: 5V DC, 12V DC, 24V DC
Output Current: 1A - 10A
Power Rating: 10W - 250W
Power supply voltage: 28 V dc
Output Frequency Range: 0 to 500 kHz
Mounting: DIN-rail mounting
Technology: Surface mount
Operating temperature: -10 to +60°C
Size: 15.9 cm high x 17.8 cm
Weight: 0.3 - 1.5 kg
Repair: 3-7 Day
Price: $$$$
Availability: In Stock
Country of Origin: United States

FUNCTIONAL DESCRIPTION:

DS200IMCPG1CCB is an I/O Power Supply Interface Module manufactured and designed by General Electric as part of the GE Speedtronic Mark V Series used in Drive Control Systems. These modules supply regulated power to a variety of devices, including sensors, actuators, and other field equipment, maintaining stable voltage and current levels critical for reliable operation. With support for multiple voltage levels, such as 5V, 12V, and 24V, they cater to diverse industrial requirements, making them an essential part of automation and control setups. The modular design of I/O Power Supply Interface Modules adds to their flexibility and ease of use. These modules can be easily installed, replaced, or expanded, allowing for scalability in industrial systems. Advanced versions include built-in diagnostics that enable real-time monitoring of power supply status, load conditions, and fault detection. Visual indicators, such as LEDs or alarms, make troubleshooting straightforward, reducing downtime and maintenance costs.

FUNCTIONS OF I/O POWER SUPPLY INTERFACE MODULE:

• Power Regulation and Distribution: The I/O Power Supply Interface Module ensures that connected field devices, such as sensors, actuators, and other I/O devices, receive a stable and regulated power supply. It supports various voltage levels (e.g., 5V, 12V, or 24V), which are essential for meeting the diverse operational requirements of these devices. The module efficiently distributes power across the I/O network, ensuring that all connected devices operate within their specified power limits, thereby preventing overloading and maintaining optimal performance.

• Signal Isolation: These modules provide electrical isolation between the control system and the field devices, safeguarding sensitive control systems from noise, voltage spikes, and fault conditions originating from external sources. Isolation is typically achieved using opto-isolators or transformers, which prevent electrical interference from affecting the control system’s operation. This function is crucial in industrial settings where high-voltage equipment or noisy environments can introduce disturbances that impact system performance and safety.

• Current Limiting and Overload Protection: The I/O Power Supply Interface Module is equipped with current limiting features that monitor the power drawn from connected devices. In the event of an overload or short circuit, the module will either limit the current or disconnect the affected device to protect both the power supply and other connected equipment. This protection is vital for preventing potential damage to devices and ensuring the overall reliability and longevity of the system.

• Surge and Fault Protection: The module is designed to protect against transient voltage surges, which can occur due to lightning strikes, power switching events, or electrical faults. By incorporating surge protection mechanisms, the module ensures that power surges do not compromise the integrity of the connected devices or control systems. Fault protection features allow for rapid detection of abnormal conditions, ensuring that the system remains operational and can be restored to normal functioning without significant disruption.

• Diagnostics and Monitoring: Real-time diagnostics and monitoring capabilities are integral to modern I/O Power Supply Interface Modules. These modules continuously track key parameters such as output voltage, current levels, and fault conditions. Diagnostic feedback is typically provided through LED indicators, alarms, or remote monitoring interfaces, enabling quick identification of issues and facilitating efficient troubleshooting and maintenance. This proactive monitoring helps to minimize downtime and ensures the system operates reliably over time.

• Signal Conditioning: In addition to power management, I/O Power Supply Interface Modules often include signal conditioning functions, which prepare the signals from field devices for optimal transmission to the control system. This may involve filtering, amplifying, or adjusting signal levels to ensure the integrity of the data being communicated. Signal conditioning ensures that the control system receives accurate and reliable input from the field, enhancing overall system performance.

WOC has the largest stock of GE Drive Control System Replacement Parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is an I/O Power Supply Interface Module?

An I/O Power Supply Interface Module is a device used in industrial control systems to provide regulated power to input/output devices, such as sensors and actuators while ensuring electrical isolation, surge protection, and reliable communication between the field devices and the central control system.

What are the key functions of an I/O Power Supply Interface Module?

The key functions of an I/O Power Supply Interface Module include power regulation, signal isolation, current limiting, overload protection, surge and fault protection, signal conditioning, diagnostics and monitoring, and modular expandability.

Why is signal isolation important in an I/O Power Supply Interface Module?

Signal isolation is crucial to prevent electrical noise, voltage spikes, and faults from transferring between field devices and the control system. It protects the sensitive control equipment and ensures that the system operates reliably, even in environments with high electrical noise.

How does current limiting work in an I/O Power Supply Interface Module?

Current limiting helps to protect the system by monitoring the power draw from connected devices. If the current exceeds a predefined limit, the module either limits the current or disconnects the affected device to prevent damage to the power supply and other connected equipment.
