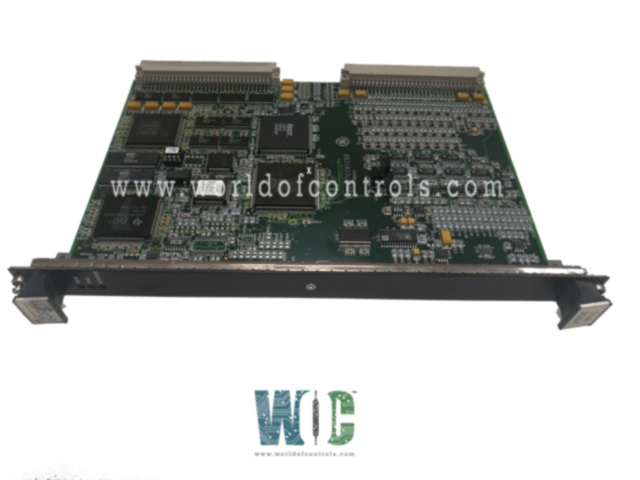

IS200VTCCH1CBB - Thermocouple Processor Board

SPECIFICATIONS:

Part Number: IS200VTCCH1CBB
Manufacturer: General Electric
Series: Mark VI
Function: Thermocouple Processor Board
Number of Channels: 12
Thermocouple Types: E, J, K, S
Span: -8 mV to +45 mV
A/D Converter: 16-bit
Common Mode Voltage: +5 Volts
Normal Mode Rejection: 250mV
Microprocessor: AMD-K6 300 MHz
Operating temperature: -30 to 65 °C
Size: 8.26 cm wide x 4.19 cm
Technology: Surface Mount
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEH-6421V

FUNCTIONAL DESCRIPTION:

IS200VTCCH1CBB is a Thermocouple Processor Board manufactured and designed by General Electric as part of the Mark VI Series used in GE Speedtronic Control Systems. The Thermocouple Input (VTCC) board accepts 24 thermocouple inputs. These inputs are wired to the TBTC or DTTC terminal boards. Cables with molded plugs connect the terminal board to the VME rack where the VTCC thermocouple processor board is located. The TBTC can provide both simplex (TBTCH1C) or triple module redundant (TMR) control (TBTCHIB). Two groups of the VTCC provide different temperature ranges optimized for gas turbine control applications (VTCCH1) and general-purpose applications (VTCCH2). The same terminal boards are used with both groups of the VTCC.

• VTCCH1 supports E, J, K, S, and T types of thermocouples and mV inputs. The mV span is -8 mV to +45 mV.
• VTCCH2 supports E, J, K, S, and T as well as B, N, and R types of standard thermocouples and mV inputs. The mV span for VTCCH2 is -20 mV to +95 mV.

INSTALLATION:

• Power down the VME processor rack
• Slide in the VTCC board and push the top and bottom levers in with your hands to seat its edge connectors
• Tighten the captive screws at the top and bottom of the front panel

OPERATION:

Type E, J, K, S, and T thermocouples can be used with VTCCH1, and they can be grounded or ungrounded. Type E, J, K, S, T, B, N, and R thermocouples can be used with VTCCH2, and they can be grounded or ungrounded. They can be located up to 300 m (984 ft) from the turbine control cabinet with a maximum two-way cable resistance of 450 Ω. High-frequency noise suppression and two cold junctions (CJ) reference devices are mounted on the terminal board. Linearization for individual thermocouple types is performed in software by VTCC. A thermocouple that is determined to be out of the hardware limits is removed from the scanned inputs to prevent adverse effects on other input channels.

COLD JUNCTIONS:

If both CJ devices are within the configurable limits, then the average of the two is used for CJ compensation. If only one CJ device is within the configurable limits, then that CJ is used for compensation. If neither CJ device is within the configurable limits, then a default value is used. The thermocouple inputs and cold junction inputs are automatically calibrated using the filtered calibration reference and zero voltages.

WOC has the largest stock of Replacement parts for GE Speedtronic Turbine Control Systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

Can a Thermocouple Processor Board be used for multiple thermocouples?

Yes, many Thermocouple Processor Boards are designed to handle multiple thermocouples simultaneously, either by having multiple input channels or through the use of multiplexers to select different thermocouples for measurement.

What is cold-junction compensation in Thermocouple Processor Boards?

Cold-junction compensation is a technique used to account for the temperature of the connection point where the thermocouple is connected to the processor board. Since thermocouples measure the difference in temperature between the measurement junction and the reference junction, the processor board adjusts for the temperature at the cold junction to ensure accurate readings.

What is the typical output of a Thermocouple Processor Board?

The output is usually a digital representation of the temperature measurement, often in the form of an analog-to-digital conversion (ADC) value, which can then be read by a microcontroller or displayed on a digital output device.
