SPECIFICATIONS

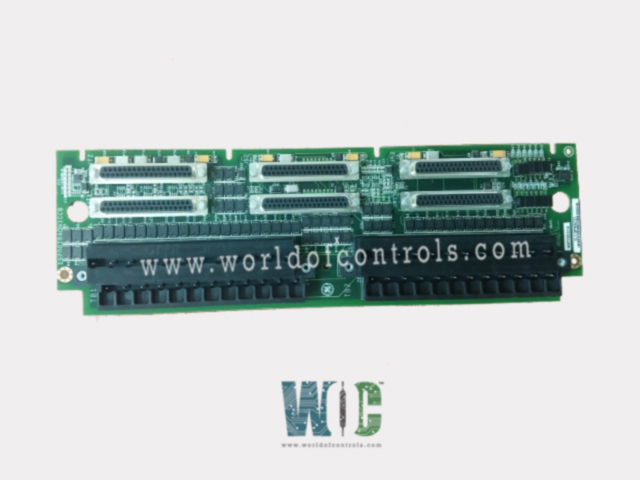

Part No.: IS200TBAQH1C
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Technology: Surface mount
Temperature -30 to 65 oC
Size: 10.16 cm wide x 33.02 cm high
Product Type: Terminal Board
Availability: In Stock
Series: Mark VI
Functional Description
IS200TBAQH1C is a Terminal Board developed by GE. It is a part of the Mark VI control system. The terminal block features incorporated into the 24-position pluggable barrier terminal block offer a combination of durability, safety, and ease of use, making them ideal for use in the Mark VI control system. With their high temperature rating, precise construction, and adherence to industry standards, these terminal blocks provide reliable connectivity solutions essential for the efficient operation of control systems.
Features
- Terminal boards utilized in the Mark VI often incorporate a 24-position pluggable barrier terminal block (179C9123BB), renowned for its reliability and durability in industrial applications. These terminal blocks boast several key features designed to ensure optimal performance and safety within the control system.
- Material Composition: Crafted from a robust polyester resin material with a high temperature rating of 130°C, ensuring resilience and stability even in demanding operational environments.
- Terminal Rating: Terminal blocks are rated for a maximum voltage of 300 V and a current of 10 A, meeting UL class C general industry standards. Additionally, the terminal blocks feature a creepage distance of 0.375 inches and a strike distance of 0.250 inches, ensuring compliance with safety regulations and industry standards.
- Certifications: UL and CSA code approval guarantees compliance with stringent safety and quality standards, providing assurance of reliable performance and adherence to regulatory requirements.
- Surface: Terminal block screws are meticulously finished in zinc clear chromate, offering corrosion resistance and durability, essential for long-term reliability in industrial environments. Contacts are coated in tin, further enhancing conductivity and minimizing the risk of oxidation.
- Number Labeling: Each block screw is clearly labeled with numbers 1 through 24 or 25 through 48 in white, facilitating easy identification and organization during installation and maintenance procedures.
- Recommended Tightening Torque: The recommended screw tightening torque is specified at 8 in lbs, ensuring uniform and secure connections without over-tightening, which could potentially damage the terminal block or components.
Terminal Board Disconnect Switch
- The Terminal Board Disconnect Switch (TBSW) plays a pivotal role in the Mark VI control system by providing individual disconnect switches for each of the 48 customer I/O points on Mark VI terminal boards. This essential component enables various procedures such as continuity checking, isolation for testing, and other maintenance tasks, ensuring efficient operation and troubleshooting within the control system.
- Functionality and Installation: The TBSW assembly consists of two individual disconnect switches, each designated for a specific range of I/O points on the terminal board. One TBSW assembly is numbered 1-24, while the other is numbered 25-48. These assemblies, identified by GE part numbers 336A4940CHG1 and 336A4940CHG2 respectively, are designed to fit and connect seamlessly into the terminal boards' 24-point pluggable barrier terminal block receptacles.
- Benefits and Applications:
- The presence of TBSW assemblies offers several benefits: Convenience: The individual disconnect switches provide a convenient means of isolating specific I/O points for testing or maintenance purposes, without affecting the overall system operation.
- Safety: By allowing for individual disconnection of I/O points, the TBSW assemblies enhance safety during maintenance procedures, minimizing the risk of accidental electrical contact or short circuits.
- Efficiency: The availability of disconnect switches streamlines troubleshooting and maintenance tasks, reducing downtime and enhancing overall system efficiency.
- Compatibility and Integration: The TBSW assemblies are designed to seamlessly integrate with the terminal boards' 24-point pluggable barrier terminal block receptacles, ensuring compatibility and ease of installation. This standardized interface enables straightforward integration into the Mark VI control system architecture, facilitating quick and hassle-free deployment.
The WOC team is always available to help you with your Mark VI requirements. For more information, please contact WOC.
Frequently Asked Questions
What is IS200TBAQH1C?
It is a terminal board developed by GE under the Mark VI series.
What material is the 24-position pluggable barrier terminal block made of?
The terminal block is crafted from a robust polyester resin material with a high temperature rating of 130oC, ensuring resilience and stability even in demanding operational environments.
What are the voltage and current ratings of the terminal block?
The terminal block is rated for a maximum voltage of 300 V and a current of 10 A, meeting UL class C general industry standards. Additionally, it features a creepage distance of 0.375 inches and a strike distance of 0.250 inches, ensuring compliance with safety regulations and industry standards.
Does the terminal block have any certifications?
Yes, the terminal block holds UL and CSA code approval, guaranteeing compliance with stringent safety and quality standards. These certifications provide assurance of reliable performance and adherence to regulatory requirements.
