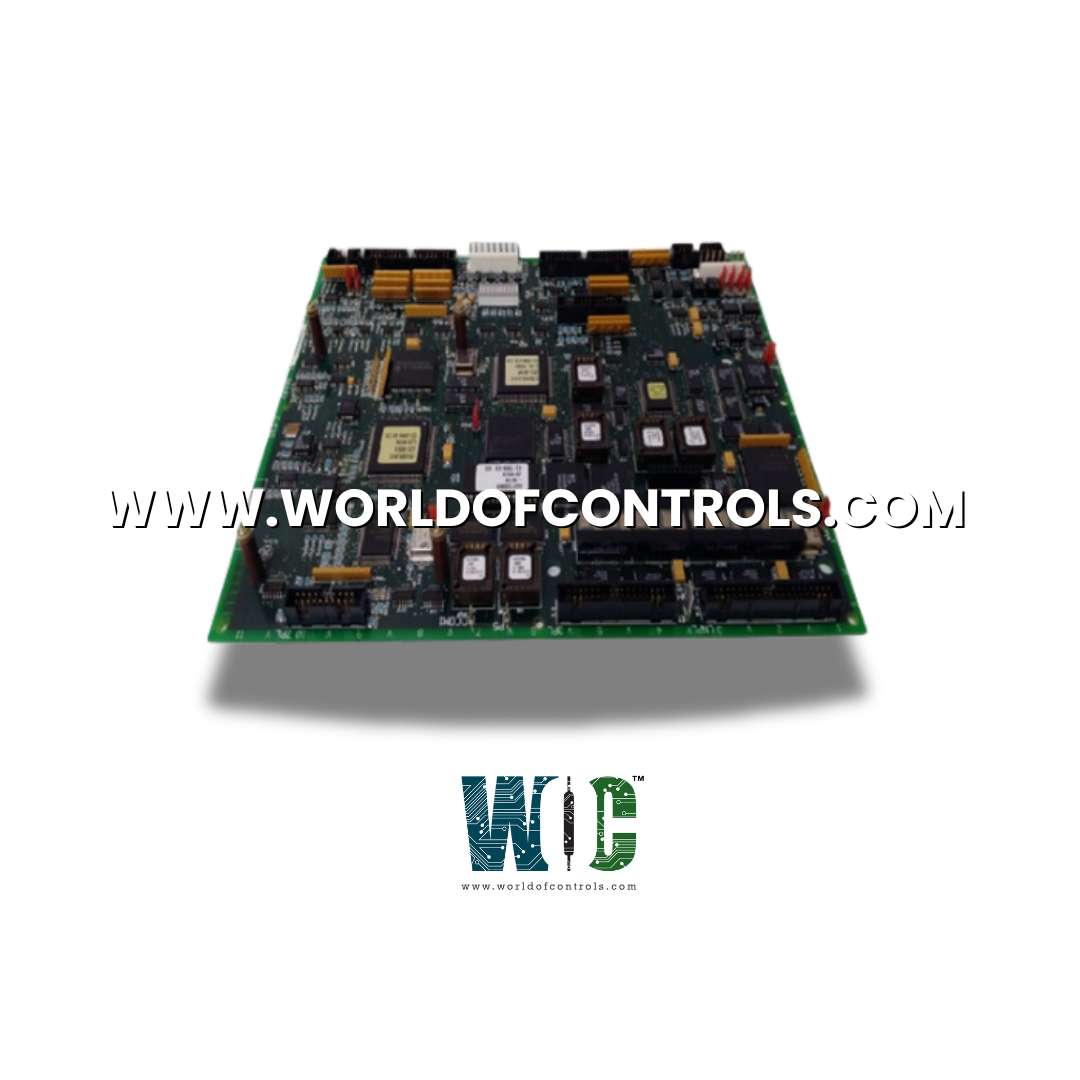

IS200SHRAH2ABC - HART Enabled Analog Input/Output Terminal Board

SPECIFICATIONS:

Part Number: IS200SHRAH2ABC
Manufacturer: General Electric
Series: Mark VIe
Function: HART Enabled Analog Input/Output Terminal Board
Number of channels: 12 channels
Input span, transmitters: 1 - 5 V dc
Maximum lead resistance to transmitters: 15 Ohm max
Load on output currents: 800 Ohm
Outputs: 24 V dc
Input voltage: 230V AC
Output voltage: 2.5-7.5V, current up to 4A
Technology: Surface-mount
Output voltage noise: < 5 mV RMS
Dimension: 15.9 cm high x 17.8 cm
Temperature: -30 to 65°C
Weight: 2.95 kg
Repair: 3-5 Days
Availability: In Stock
Country of Manufacture: United States (USA)
Manual: GEH-6721L

FUNCTIONAL DESCRIPTION:

IS200SHRAH2ABC is a HART Enabled Analog Input/Output Terminal Board manufactured and designed by General Electric as part of the Mark VIe Series used in GE Distributed Control Systems. The SHRA board is a compact analog input terminal that connects to the PHRA pack, supporting 10 analog inputs and two 4-20 mA analog outputs. It enables HART communication between the PHRA and a HART-enabled field device. The inputs accommodate two-wire, three-wire, four-wire, or externally powered transmitters. Featuring high-density Euro-block terminal blocks, the board includes an ID chip for system diagnostics. Only a simplex version is available. In Mark VIe systems, the PHRA I/O pack works with the SHRA. The I/O pack plugs into the D-type connector and communicates with the controller over Ethernet. Only simplex systems are supported. All revisions of SHRA are compatible with all PHRAs.

INSTALLATION:

The SHRA, along with a plastic insulator, mounts on a sheet metal carrier, which can be attached to a DIN rail. Alternatively, it can be mounted on a sheet metal assembly and bolted directly to a cabinet. Two types of Euro-block terminal blocks are available:

• SHRAH1 has a permanently mounted terminal block with 48 terminals.
• SHRAH2 has a right angle header accepting a range of commercially available pluggable terminal blocks, with 48 terminals.

Typically #18 AWG wires (shielded twisted-pair) are used. I/O cable shield termination is provided adjacent to the terminal blocks. The following types of analog inputs/outputs can be used:

• Analog input, two-wire transmitter
• Analog input, three-wire transmitter
• Analog input, four-wire transmitter
• Analog input, externally powered transmitter
• Analog input, voltage ±5 V dc
• Analog output, 4-20 mA current

OPERATION:

24 V dc power is available on the terminal board for all the transmitters (transducers). There is a choice of current or voltage inputs using jumpers. HART communication is only possible with the inputs set as 4-20 mA inputs, it will not take place on an input set as ±5 V dc or ±1 mA. The two analog output circuits are 4-20 mA. There is only one cable connection, so the terminal board cannot be used for TMR applications. The following table displays the analog input/output capacity of the SHRA terminal board.

CONFIGURATION:

Configuration of the terminal board is using jumpers. For the location of these jumpers refer to the installation diagram. The jumper choices are as follows:

• Jumpers JP1A through JP8A select either current input or voltage input
• Jumpers JP1B through JP8B select whether the return is connected to common or is left open
• Jumpers JP9A and JP10A select either 1 mA or 20 mA input current
• Jumpers JP9B and JP10B select whether the return is connected to common or is left open.

WOC holds the largest GE Distributed Control System Replacement Parts inventory, offering both unused and rebuilt components, all backed by a warranty. Our expert team is available 24/7 to support your OEM needs and assist with any automation requirements. For pricing and availability of parts or repair services, contact us by phone or email.

FREQUENTLY ASKED QUESTIONS:

What are the input and output specifications of the SHRA board?

The SHRA board supports 10 analog inputs and two analog outputs. The inputs are designed to accommodate two-wire, three-wire, four-wire, or externally powered transmitters. The outputs operate in the 4-20 mA range, making them suitable for industrial automation and control applications.

How does the SHRA board facilitate HART communication?

The SHRA board enables the transmission of HART messages between the PHRA pack and HART-enabled field devices. This allows digital communication over standard analog signals, providing advanced diagnostics and configuration capabilities.

What types of transmitters are supported?

The board supports a variety of transmitters, including two-wire, three-wire, four-wire, and externally powered types. This flexibility makes it suitable for different industrial applications requiring diverse input configurations.
