SPECIFICATIONS
Part No.: IS200PSCDG1ACB
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Size 26.04 cm high x 1.99 cm, wide x 18.73 cm, deep
Product Type: Power Supply / Contactor Driver board
Availability: In Stock
Series: EX2100
Functional Description

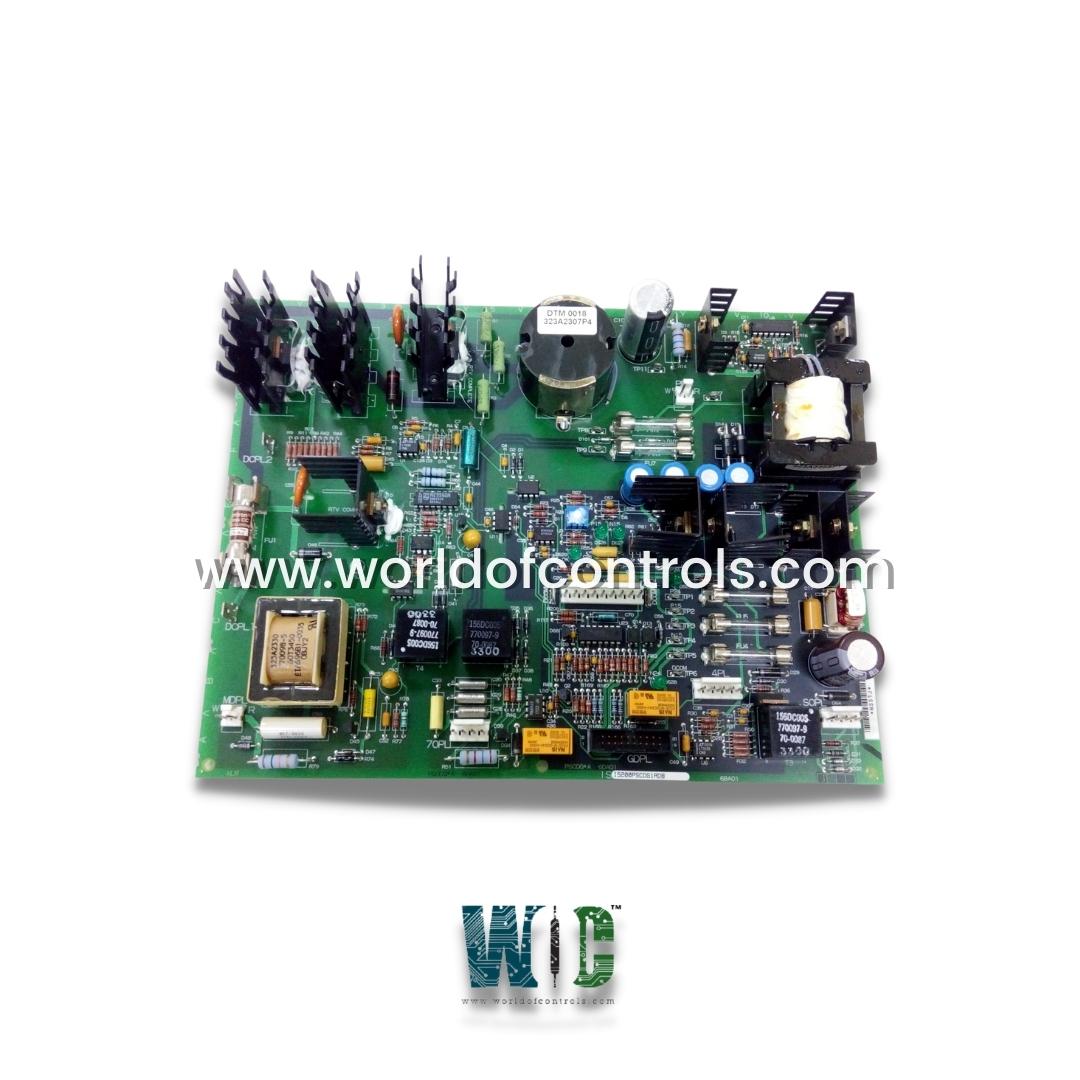

IS200PSCDG1ACB is a Power Supply / Contactor Driver board developed by GE. It is a part of EX2100 control system. The primary function of the Power Supply/Contactor Driver board is to manage control power distribution, power supply sensing, and contactor control within the exciter system. It acts as a central hub for regulating power and coordinating the operation of various components.
Features
- Power Source and Input Range: The board draws power from the DC link via stab-on terminals DCPL1 (+) and DCPL2 (-). It operates within a wide input voltage range, typically ranging from 80 to 400 V DC as nominal inputs. Additionally, transient operation up to 600 V DC is achievable during maximum dynamic discharge operation, ensuring adaptability to varying operational conditions.
- Control Power Production: One of the primary tasks of the Power Supply/Contactor Driver board is to generate control power for distribution to other control module cards within the system. It produces various voltage outputs essential for the operation of control boards, including +/- 24 V, +/-15 V, and +5 V.
- Distribution of Power: To facilitate power distribution, the board generates a 17.7 V AC square wave distributed through high-frequency transformers. This power is supplied to the gate driver and LAN Terminal Board (LTB) inputs, ensuring proper functioning of these critical components.
- Auxiliary Power Supplies:In addition to the main power supply outputs, the board features auxiliary supplies for generating isolated 70 V DC, sufficient to power up to 13 LUP (Low Voltage Under Protection) inputs. It also provides isolated SHWSHVM power for potential future applications, ensuring scalability and adaptability to evolving system requirements.
Indicators
- LED PS OK (DS29): This LED, identified as PS OK and located at DS29 on the board, illuminates to indicate that the power supply is operating within normal parameters. Its illumination assures operators of the overall health and functionality of the power supply.
- LED P15 (DS26): The LED labeled P15 and situated at DS26 on the PSCD board illuminates to signify normal operation of the P15 power supply. Its illumination provides assurance that the P15 power supply is functioning correctly and delivering power as expected.
- LED N15 (DS27): Situated at DS27 on the PSCD board, the LED named N15 lights up to indicate normal operation of the N15 power supply. Its illumination assures operators that the N15 power supply is operating correctly and supplying power reliably to the system.
- LED N24 (DS28): Located at DS28 on the PSCD board, the LED N24 illuminates to indicate normal operation of the N24 power supply. Its illumination assures operators that the N24 power supply is functioning properly, ensuring system integrity and reliability.
- LED P24 (DS25): At DS25 on the PSCD board, the LED P24 lights up to indicate normal operation of the P24 power supply. Its illumination assures operators that the P24 power supply is operating as expected, providing stable power to designated components.
Fuses
- FUSE FU1: This fuse, labeled FU1 , is a 2 A, 600 V fuse designed for the DC link input. It serves to protect the input from overcurrent situations, safeguarding the system against potential damage. Recommended equivalent fuse: Bussmann Limitron KTK-R-2 or equivalent.
- FUSE FU3: Located on the board, FU3 is a 1.5 A, 250 V fuse dedicated to protecting the P24 output. Its role is crucial in ensuring the integrity of the P24 power supply and preventing damage due to excessive current. Recommended equivalent fuse- Bussmann AGC 1.5 A 250 V or equivalent.
- FUSE FU4: FU4 is a 1 A, 250 V fuse designated for the N24 output. It plays a vital role in safeguarding the N24 power supply from overcurrent conditions, thereby maintaining system stability and reliability. Recommended equivalent fuse: Bussmann AGC 1 A 250 V or equivalent.
- FUSE FU5: This fuse, denoted as FU5 on the PSCD board, is a 5 A, 125 V fuse protecting the P5 output. Its purpose is to safeguard the P5 power supply from excessive current, ensuring uninterrupted power delivery to the designated components. Recommended equivalent fuse: Bussmann AGC 5 A 250 V or equivalent.
- FUSE FU6: Located on the board, FU6 is a 1 A, 250 V fuse dedicated to protecting the 17.7 V AC output. Its role is crucial in ensuring the integrity of the AC output and preventing damage due to overcurrent situations. Recommended equivalent fuse: Bussmann AGC 1 A 250 V or equivalent.
- FUSE FU7: The FU7 fuse on the board is a 1 A, 250 V fuse safeguarding the 70 V DC power supply input. Its purpose is to protect the input from overcurrent conditions, ensuring stable and reliable operation of the power supply. Recommended equivalent fuse: Bussmann AGC 1 A 250 V or equivalent.
The WOC team is always available to help you with your EX2100 requirements. For more information, please contact WOC.
Frequently Asked Questions
What is IS200PSCDG1ACB?
It is a Power Supply / Contactor Driver board developed by GE under the EX2100 series.
What is the purpose of Connector PPL on the board?
Connector PPL links to the board and provides high-frequency control power to the GDDD board.
What does Connector MDPL connect to, and what functionality does it serve?
Connector MDPL interfaces with the DC contactor coil, facilitating control of the contactor.
What is the role of Connector SQPL, and when is it utilized?
Connector SQPL, though optional, connects to the optional SHVM or SHVI board, enabling power distribution to the voltage-controlled oscillators.
What components are connected via Connector 2PL, and what function does it fulfill?
Connector 2PL links to the LDCC and TCCB boards, providing power distribution to these components.
What is the purpose of Connector 4PL, and what devices does it power?
Connector 4PL interfaces with the 3TB/NTB board, distributing power to the control on input and auxiliary contacts.
