SPECIFICATIONS
Part No.: IS200JPDHG1AAA
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Temperature: -30 to 65oC
Board Size: 15.875 cm high x 10.795 cm wide
Mounting: DIN-Rail
Product Type: High Density Power Distribution Board
Availability: In Stock
Series: Mark VIe
Functional Description

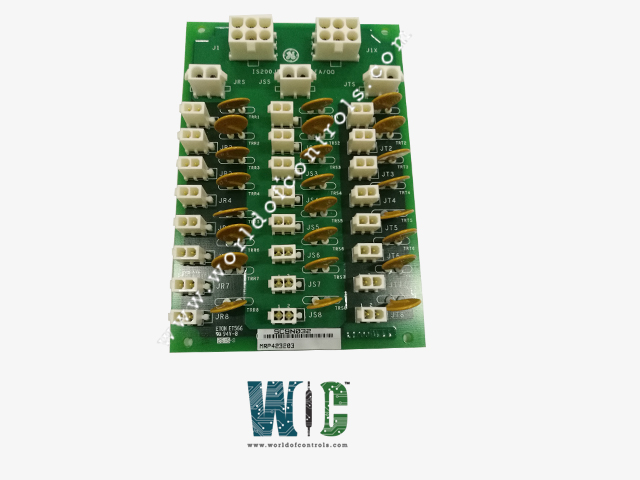

IS200JPDHG1AAA is a High Density Power Distribution Board developed by GE. It is a part of Mark VIe control system. The High-Density Power Distribution (JPDH) board facilitates distribution of 28 V dc power to multiple I/O packs and Ethernet switches. Each board is designed to supply power to 24 Mark VIe I/O packs and 3 Ethernet switches from a single 28 V dc power source.
Features
- To accommodate larger systems, multiple boards can be interconnected in a daisy-chain configuration, allowing for the expansion of power distribution to additional I/O packs as needed.
- One of the key features of the board is its built-in circuit protection mechanism for each I/O pack connector. To safeguard against potential overloads or faults, each circuit is equipped with a positive temperature coefficient (PTC) fuse device. These PTC fuse devices are designed to automatically limit the current flow in the event of an overcurrent condition, effectively protecting the connected I/O packs and ensuring the integrity of the power distribution system.
Installation
- Mounting Surface Selection: Choose a suitable vertical surface for mounting the board.
- Screw Installation: Insert #6 machine screws through the mounting holes located at each corner of the board.
- Secure Placement: Ensure that the screws are securely fastened to firmly hold the JPDH board in place on the chosen surface.
- Mate-N-Lok Connector Placement: Refer to the provided figure for guidance on inserting Mate-N-Lok connectors into the appropriate slots on the JPDH board.
- Connector Ratings: Note that the 6-pin and larger 2-pin connectors are rated for a nominal voltage of 600 V and a current of 13 A. In contrast, the smaller two-pin connectors have a nominal voltage rating of 600 V, with a maximum current limited by fuse rating to 0.8 A.
- Caution: Exercise caution to avoid exceeding the maximum current ratings specified for each connector type to prevent potential damage or hazards.
Safety Standards Compliance
- UL 508A Safety Standard for Industrial Control Equipment
- Scope: This standard outlines safety requirements for industrial control panels and related assemblies.
- Compliance: The equipment meets the specifications outlined in UL 508A, ensuring it meets safety criteria for industrial use.
- Key Areas Covered: Protection against electrical hazards, component selection, wiring methods, grounding, and construction requirements.
- CSA 22.2 No. 14 Industrial Control Equipment
- Scope: CSA 22.2 No. 14 sets forth safety requirements for industrial control equipment to prevent electrical hazards.
- Compliance: The equipment adheres to the guidelines established in CSA 22.2 No. 14, ensuring its safety and reliability for industrial applications.
- Key Areas Covered: Electrical insulation, component ratings, environmental conditions, and safety precautions during installation and operation.
- EN 61010-1 Safety of Electrical Equipment, Industrial Machines (Low Voltage Directive)
- Scope: EN 61010-1 focuses on safety requirements for electrical equipment used in industrial environments, in accordance with the Low Voltage Directive.
- Compliance: The equipment conforms to the safety standards specified in EN 61010-1, ensuring it meets the necessary safety regulations for industrial machinery.
- Key Areas Covered: Protection against electric shock, insulation requirements, temperature limits, mechanical strength, and safety precautions during installation and use.
Inputs
- The system features one 6-pin connection designated for 28 V DC power input.
- This connection utilizes the Mate-N-Lok standard, capable of withstanding voltages up to 600 V and currents up to 13 A. This input serves as the primary power source for the system, ensuring its operational functionality.
Outputs
- Ethernet Switch Connections: The system provides three 2-pin connections tailored for Ethernet switches. Utilizing the Mate-N-Lok standard, these connections are engineered to handle voltages up to 600 V and currents up to 13 A. They serve as the interfaces for linking Ethernet switches, facilitating communication within the network infrastructure.
- I/O Pack Connections: Additionally, the system offers twenty-four 2-pin connections dedicated to I/O packs. These connections adhere to the Mate-N-Lok standard, engineered to handle voltages up to 600 V and currents up to 0.8 A. They serve as the interfaces for connecting various I/O packs, enabling data exchange between the system and external devices or sensors.
The WOC team is always available to help you with your Mark VIe requirements. For more information, please contact WOC.
Frequently Asked Questions
What is IS200JPDHG1AAA?
It is a High Density Power Distribution Board developed by GE under the Mark VIe series.
How can additional JPDH boards be connected?
Additional boards can be connected in a daisy-chain arrangement through the unfused J1X connector. However, users must ensure suitable branch circuit protection when connecting multiple JPDHs.
What is the current rating for each pin on the board?
Each pin on the board is rated at 13 A, ensuring reliable power distribution within the system.
How does the 6-pin J1 connector distribute power?
The 6-pin J1 connector on the board brings in three separate 28 V dc feeds on three different pins for triple redundancy. The return current, common among the TMR and daisy-chain feeds, is brought in on the remaining three pins.
