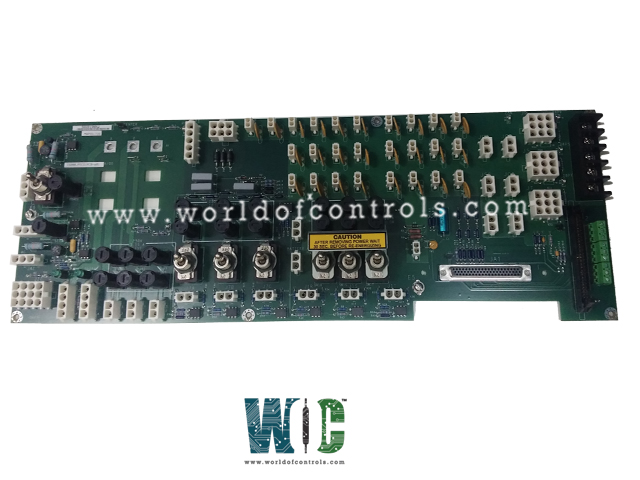

IS200JPDCG1AEC - POWER SUPPLY

SPECIFICATIONS

Part No.: IS200JPDCG1AEC
Manufacturer: General Electric
Product Type: 28VDC Power Distribution Board
Series: Mark VIe

The IS200JPDCG1AEC is a 28VDC power distribution board that comes under GE Mark VIe. The Mark VIe control system is a versatile platform that may be used in a variety of applications. Its architecture allows for the creation of custom engineered solutions for a wide range of major industrial applications. It supports Simplex, Dual, and Triple Modular Redundant (TMR) systems with high-speed, networked input/output (I/O). For I/O, controllers, and supervisory interfaces to operator and maintenance stations, as well as third-party systems, industry-standard Ethernet connections are used.

• JPDC is the terminal board for the PPDA I/O pack. The PDDA I/O pack is mounted to either JPDG, JPDS, JPDM, or a JPDC board.
• Additional boards are connected using 15 pin ribbon cables that are wired pin 1 to 1.
• PPDA can read feedback signals from different power distribution boards like JPDS, JPDM, JPDC, JPDG, JPDB, JPDE, and JPDF.
• JPDC power distribution module combines input and output functions from several previous designs to provide a distribution of 125VDC, 115/230VAC, and 28VDC to other boards within a turbine control system.

The most extensive assortment of GE Speedtronic Mark VIe control replacement components can be found at World of Controls. Our experts are available to assist you with your Mark VIe requirements at any time. For any additional information, please contact WOC.



Frequently Asked Questions



What is IS200JPDCG1AEC?

The IS200JPDCG1AEC is a 28VDC power distribution board under the Mark VIe series



How to Obtain IS200JPDCG1AEC?

WOC provides IS200JPDCG1AEC as well as other turbine control products. Contact World of Controls.
