World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
IS200HSLAH2A - High-speed Serial Link Interface Board is available in stock which ships the same day.
IS200HSLAH2A - High-speed Serial Link Interface Board comes in UNUSED as well as REBUILT condition.
To avail our best deals for IS200HSLAH2A - High-speed Serial Link Interface Board, contact us and we will get back to you within 24 hours.
SPECIFICATIONS
Part No.: IS200HSLAH2A
Manufacturer: General Electric
Product Type: High-speed Serial Link Interface Board for Host Application Boards
Function: Serial Communication Interface
Series: EX2100e
Availability: In Stock
Country of Origin: United States(USA)

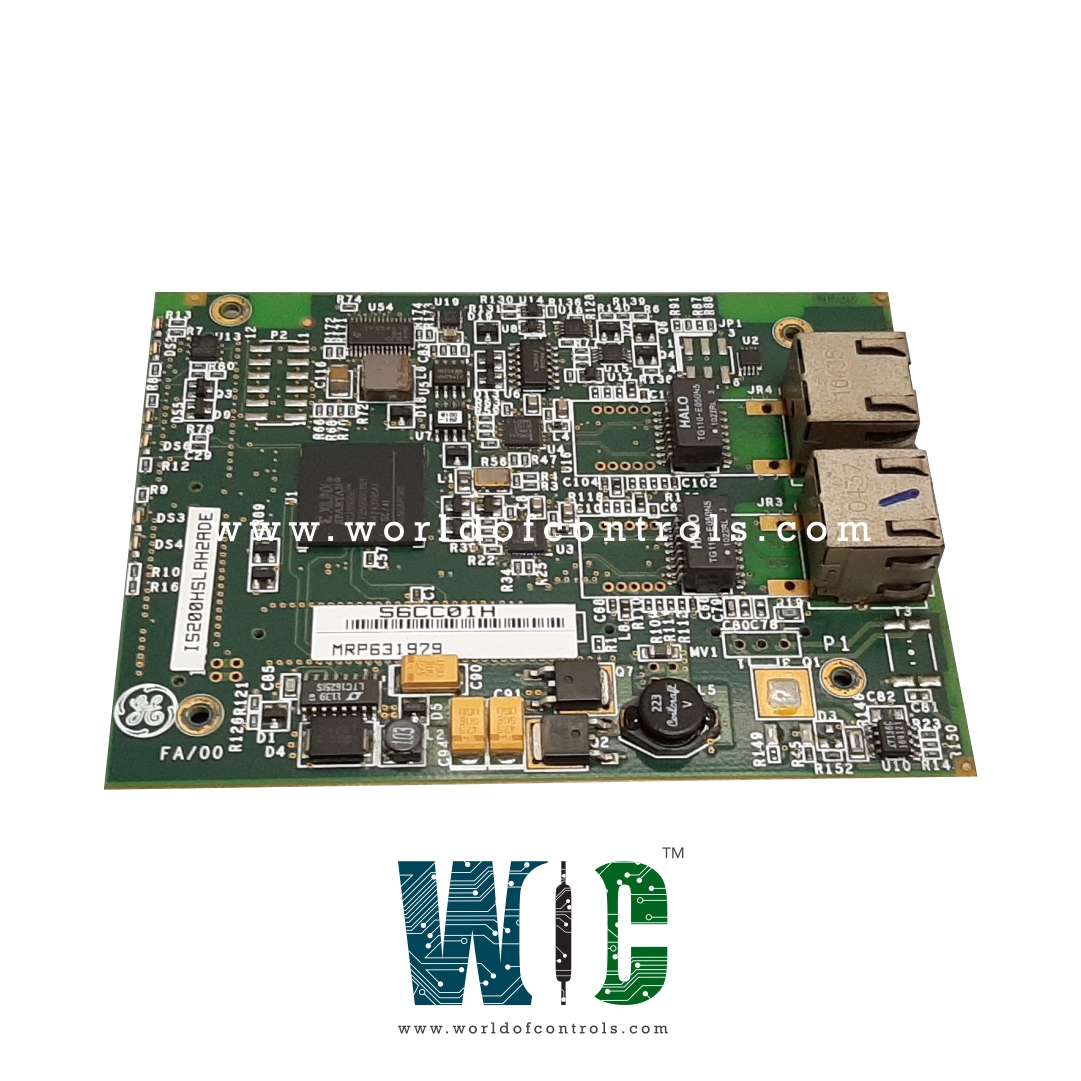

IS200HSLAH2A is a High-speed Serial Link Interface Board for Host Application Boards manufactured by General Electric and is a part of the EX2100e regulator dual control system. The card is serially connected to the EX2100e ERAX M1 and M2 to UCSB CPU M1 and M2. The board has two jack inputs and outputs on its top surface. These are placed side by side along with one of the board's short edges. The board has two Halo TG 110-EO 50N5 transformers. Over twenty integrated circuits make up the board, including an FPGA (field-programmable gate array) at U1. There are two more (female) connectors on the bottom of the board. The FA/00 code is penned on the PCB. Multiple conduction sensors are integrated onto the card.

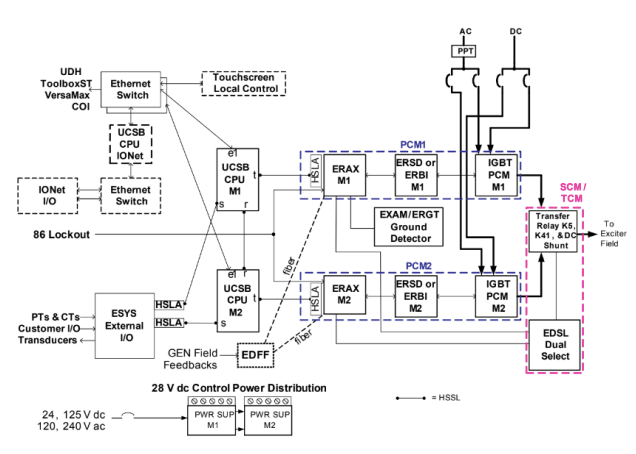

Fig 1: EX2100e regulator dual control system Block Diagram
The EX2100e control software provides high performance and aids in the understanding, installation, commissioning, tuning, and maintenance of the excitation control system by customers and field engineers. The exciter software is configured and loaded in the controllers using the ToolboxST application. On the ToolboxST Component Editor screen, the program is represented as control blocks that are coupled together to depict the signal flow.
The software transducer system's output comprises the following:
1. The voltage of the generator
2. Current generated by the generator (average in phase with watts)
3. Reactive current generated by the generator (average in phase with reactive power, VARs)
4. The frequency of the generator (current)
5. Make a mistake (signal representing the change in the rotor speed)
The output is used by the transducer system to calculate the following:
1. VARs and generator power
2. Generator flux magnitude (V/Hz)
3. Power factor and phase angle
WOC has the largest stock of Speedtronic Mark VI & Excitation control spare parts and we can repair your faulty parts with a warranty. WORLD OF CONTROLS can also supply UNUSED and REBUILT backed up with a warranty of up to 24 months. Our team of experts is available round the clock to support your needs. Our sales team atWOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.
What is GE EX2100e IS200HSLAH2A?
The IS200HSLAH2A is a host application board with a high-speed serial link interface.
What are the benefits of using a serial interface?
A serial interface is a communication interface that sends data as a sequence of voltage pulses down a wire between two digital systems.
How to Check Price and Availability For Serial Link Interface Board?
Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.
