World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
IS200EROCH1A - Exciter Regulator Options Card is available in stock which ships the same day.
IS200EROCH1A - Exciter Regulator Options Card comes in UNUSED as well as REBUILT condition.
To avail our best deals for IS200EROCH1A - Exciter Regulator Options Card, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part Number: IS200EROCH1A
Manufacturer: General Electric
Series: Excitation
Product Type: Exciter Regulator Options Card
Number of channels: 24 channels
Operating temperature: 0 to +45°C
Size: 15.9 cm high x 17.8 cm
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEI-100526A
FUNCTIONAL DESCRIPTION:

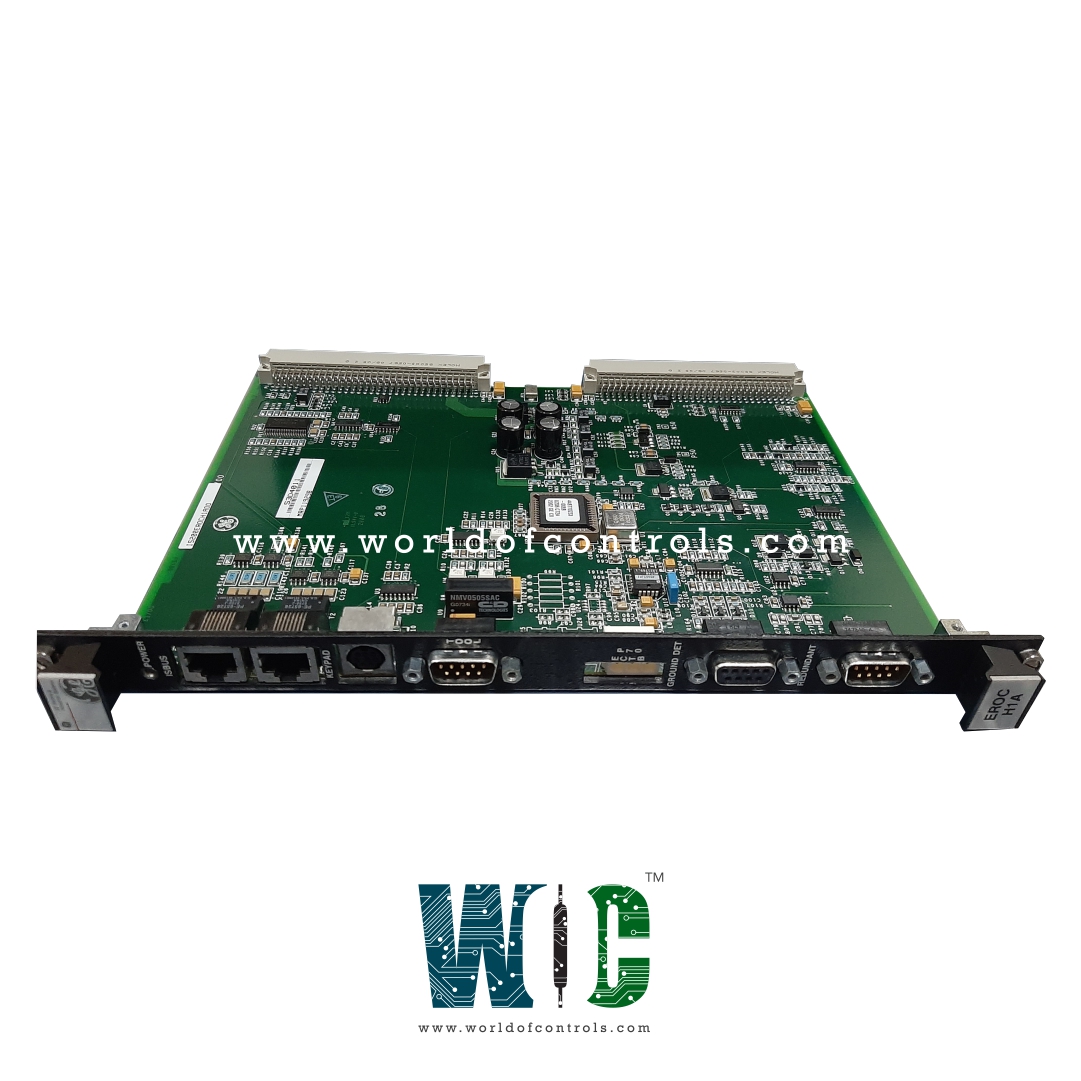

IS200EROCH1A is an Exciter Regulator Options Card manufactured and designed by General Electric as part of the EX2100 Series used in GE Excitation Turbine Control Systems. The IS200EROCH_A Exciter Regulator Options Card (EROC) is used in EX2100 regulator control systems (simplex and redundant) to provide support for the regulator functions. The EROC mounts in a single slot of the IS200ERBP Exciter Regulator Backplane (ERBP) and IS200ERRB Exciter Regulator Redundant Backplane (ERRB). The EROC includes a board identification (ID) device that interfaces to the M1 or M2 control associated with the specific backplane slot. The ID device includes the barcode serial number, board type, and hardware revision. A green LED on the EROC faceplate illuminates when power is applied. There are two versions or groups of the EROC board, EROCH1 and EROCH2. The differences are described in the following sections. Functions include GE and third-party ground detectors, keypad interface, tool interface, and terminal board power connection. Other functions of the EROC are only used in redundant applications that are described separately in this section. Simplex functions are shown below.
FUNCTIONS AND FEATURES:
A Keypad Connector: It’s provided on the EROC faceplate and another on the backplane (ERBP simplex and ERRB redundant). The EROC provides keypad data transmission to both connectors. Only one keypad can be connected at a time. The keypad connectors support the bezel-mounted keypad(s). The two locations are to support mounting variations of the EX2100 regulator control.
The Tool Connector: The EROC faceplate interfaces an external computer to the IS200DSPX Digital Signal Processor Control board (DSPX) through a 9-pin plug connector. The tool connector supports M1/M2 and uses RS-232C (1200 to 38.4 K baud).
The ECTB Connector: supplies positive 70 V DC power to the contact output section of the IS200ECTB Exciter Contact Terminal board (ECTB).
Ground Detector: The GE ground detector may be used as a simplex ground detector in other exciter applications. The ground detector connector supports connecting a GE ground detector or a third-party ground detector.
GE Simplex Ground Detector: is controlled by the M1 DSPX. This configuration uses the ERBP backplane, the M1 EROC, and the M1 IS200EPSM Exciter Power Supply Module (EPSM).
GE Redundant Ground Detector: is controlled by the M2 DSPX. This configuration uses the ERRB backplane, the M2 EROC, and the M2 EPSM. The 9-pin ground detector cable is connected to the EROC in the redundant rack. No cable is connected to the M1 EROC ground detector connector.
WOC has the largest stock of GE Excitation Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.
What is an Exciter Regulator Options Card?
An Exciter Regulator Options Card is a component used in electrical systems to control the output of an exciter, which supplies field current to an alternator or generator. The card provides various settings or options for customizing the behavior of the exciter regulator.
What is the purpose of an Exciter Regulator Options Card?
The purpose of the card is to allow users to adjust voltage levels, frequency response, or other parameters of the exciter regulator to suit specific applications or requirements. It offers flexibility and customization in controlling electrical systems.
What features can be adjusted using an Exciter Regulator Options Card?
Depending on the model and design, users can typically adjust parameters such as voltage setpoints, frequency response curves, regulation modes, and protection settings.
