World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
IS200ERGTH1A - Exciter Regulator Third-party Ground Detector Terminal Board is available in stock which ships the same day.
IS200ERGTH1A - Exciter Regulator Third-party Ground Detector Terminal Board comes in UNUSED as well as REBUILT condition.
To avail our best deals for IS200ERGTH1A - Exciter Regulator Third-party Ground Detector Terminal Board, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part Number: IS200ERGTH1A
Manufacturer: General Electric
Series: EX2100
Board Type: Exciter Regulator Third-party Ground Detector Terminal Board
Analog output current: 0-20 mA
Excitation voltage: 24 V dc
Maximum Lead Resistance: 15Ω
Processor: 32-bit digital signal processor
Analog output current: 0-20 mA
Operating temperature: 30 to 50 °C
Size: 17.8 cm high x 33.02 cm
Frequency: 50 or 60 Hz
Repair: 3-7 Day
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States
Manual: GEI-100531
FUNCTIONAL DESCRIPTION:
IS200ERGTH1A is an Exciter Regulator Third-party Ground Detector Terminal Board manufactured and designed by General Electric as part of the EX2100 Series used in GE Excitation Turbine Control Systems. The Exciter Regulator Third-party Ground Detector Terminal Board (ERGT) is a component of the EX2100 regulator control systems, available in both simple and redundant configurations. Its primary function is to facilitate the connection between the Exciter Regulator Options Card (EROC) and a third-party ground detector. The ERGT achieves this by converting signals from the EROC’s 9-pin connector into terminal screw connections suitable for the third-party ground detector. The EROC can manage a single third-party ground detector through the ERGT, providing up to three outputs:

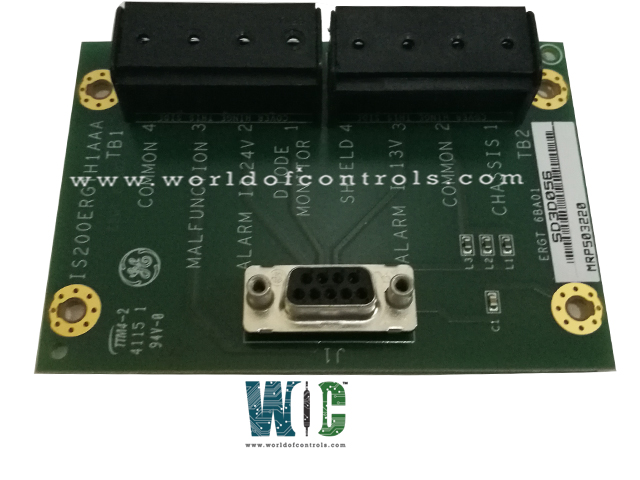

The ERGT has no fuses, test points, LEDs, or adjustable hardware. It interfaces to the EROC through a vertical 9-pin plug connector (J1) and to the third-party ground detector through two four-position terminal strips (TB1 and TB2). When not DIN-rail mounted, mounting hardware through holes E1 – E4 provides chassis ground.
WOC has the largest stock of OEM replacement parts for GE Excitation Control Systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.
What is the Exciter Regulator Third-party Ground Detector Terminal Board?
It is a terminal board used in EX2100 regulator control systems to interface with third-party ground detectors. It converts signals from the Exciter Regulator Options Card (EROC) to terminal screw connections for the ground detector.
In which applications can the ERGT be used?
The ERGT can be used in both simplex and redundant applications within the EX2100 regulator control systems.
What is the purpose of the ERGT?
The ERGT facilitates the connection between the EROC and a third-party ground detector, ensuring proper signal conversion and communication.
