IS200EDCFG1B - EX2100 FEEDBACK DC EXCITER CARD GE

SPECIFICATIONS

Part Number: IS200EDCFG1B
Manufacturer: General Electric
Series: Mark VI
Function: Printed Circuit Board

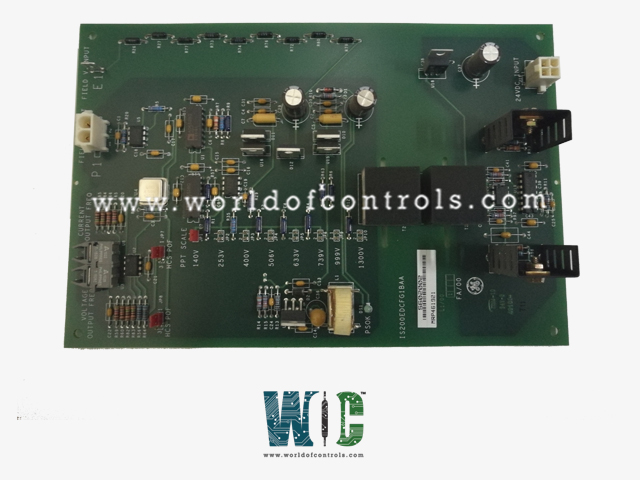

General Electric Speedtronic Mark VI IS200EDCFG1B is a Direct Current Feedback Card (EX2100). The function of IS200EDCFG1B is to manage bridge dc voltage and current feedback. At the SCR bridge, the board measures field voltage and field current. Voltage isolation and noise immunity are provided through a fiber-optic link between the EISB board in the control panel. There are two plug connectors on the IS200EDCFG1B. As an input, these are denoted P2 (two-position plug) (4 position plug.) There are multiple high-voltage electrolytic capacitors on the board, as well as other types of capacitors.

• Six integrated circuits, a coil inductor, several transistors, and two relays are included on the board. Two heat sinks are added to the board to allow excess heat to be quickly dissipated. It's also worth noticing that the board has seven bridge voltage scale-down selectors marked on it.

• WOC has the largest stock of Speedtronic Mark VI control spares and we can repair your faulty IS200EDCFG1B with a warranty of 12 months.

• WORLD OF CONTROLS can also supply UNUSED and REBUILT IS200EDCFG1B backed up with a warranty of 24 months. Our team of experts is available round the clock to support your IS200EDCFG1B needs.

• Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is the function of IS200EDCFG1B?

IS200EDCFG1B is used to control bridge dc voltage and current feedback.

Does the IS200EDCFG1B have a Warranty?

WOC can also supply UNUSED and REBUILT IS200EDCFG1B backed up with a warranty of 24 months.

How long does it take for a WOC IS200EDCFG1B to Ship?

WOC maintains a large inventory and can fulfill many orders on the same day. Please contact us for additional information.
