IS200EACFG3B - Exciter AC Feedback Board

SPECIFICATIONS

Part Number: IS200EACFG3B
Manufacturer: General Electric
Series: EX2000
Product Type: Feedback Board
Location: Auxiliary Cabinet
Dimensions: 16cm x16cm x12cm
Voltage Measurement: Up to 1400 VRMS
Weight: 0.8kg
Repair: 3-5 Days
Product of Origin: United States
Availability: In Stock
Manual: GEI-100465A

FUNCTIONAL DESCRIPTION:

IS200EACFG3B is an Exciter AC Feedback Board manufactured and designed by General Electric as part of the EX2000 Series used in Excitation Control Systems. The EX2100 Excitation Control's exciter PPT ac supply voltage and current are measured by the IS200EACF Exciter Ac Feedback board (EACF). The terminal board comprises terminals for two Flux/Air core coils as well as transformers for three-phase voltage measurement. Three DB9 connectors are used to link the voltage and current circuit outputs to the controllers M1, M2, and C. Up to 90 m of cable can be used to connect the EBKP backplane board to the EACF. The EACF board is located in the exciter auxiliary cabinet.

The board is available in three different versions: EACFG1, EACFG2, and EACFG3, each of which can handle inputs up to 480, 1000, and 1300 V rms. The input voltage rating for revisions EACFG3BAA and later is 1400 V rms. The flux/air core input signals are given with high-frequency noise reduction close to the site of the signal entrance. Where applicable, the input screws are three inches or less from the cable shield terminal screws that are connected to the chassis ground.

EXCITER VOLTAGE MEASUREMENT:

• The nominal range of the G1 version's single three-phase input voltage is up to 480 V rms +20% at 50/60 Hz.

• The nominal range of the G2 version's single three-phase input voltage is up to 1000 V rms +20% at 50/60 Hz.

• The G3 version supports a single three-phase input voltage in the nominal range up to 1300 V rms +20% at 50/60 Hz

• The nominal 1.6 V rms from their secondary outputs is provided by the potential transformers on both boards.

• The nominal secondary output voltage range of the air core current transformers is 0 to 0.8 V rms at 50/60 Hz.

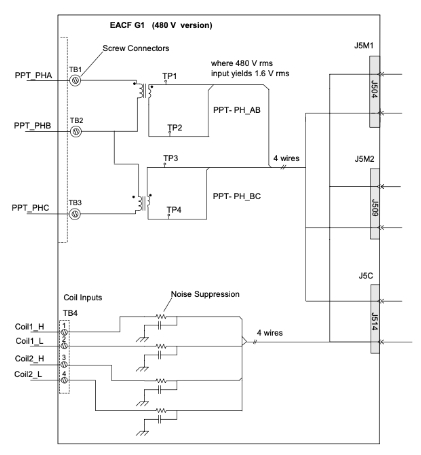

Fig 1: EACF Terminal Board

APPLICATION DATA

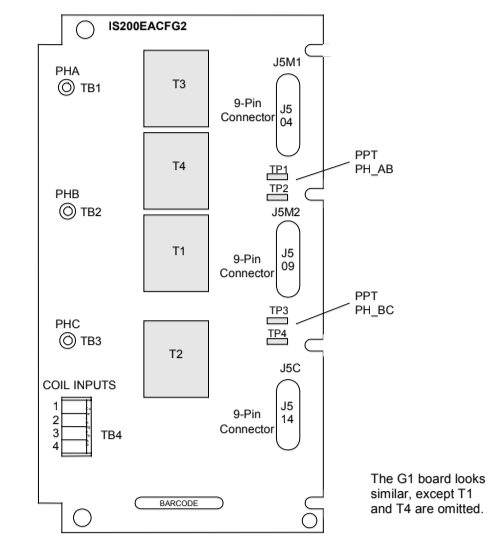

The image below depicts the EACF board's layout. Three-phase voltage transformers T1 through T4 are used. For the voltage inputs, use TB1, TB2, and TB3 individual screw connectors. The two Flux/Air core coils are wired through terminal block TB4. Cables for the EMIO boards are connected to the EBKP backplane using the three 9-pin sub-D connectors J504, J509, and J514.

Fig 2: EACF Board Layout

The voltage test rings TP1-4 are used to gauge the potential transformers' output phase voltage as follows:

• Determine the Phase to Phase (or Line) Voltage AB between TP1 and TP2.

• Get the Phase to Phase Voltage BC using TP3 and TP4.

• Obtain the Phase to Phase Voltage CA between TP4 and TP1.

WOC has the largest stock of GE Excitation EX2000 Series OEM Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.

FREQUENTLY ASKED QUESTIONS

What is GE Mark VI IS200EACFG3B?

It is a 1300V AC Feedback Card from the General Electric EX2000 series, which is used in excitation control systems.

What is Positive Feedback in an Amplifier?

The effective input to the circuit is increased when the feedback signal is in phase with the input signal, and this sort of feedback is known as positive, regenerative, or direct feedback.
