World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

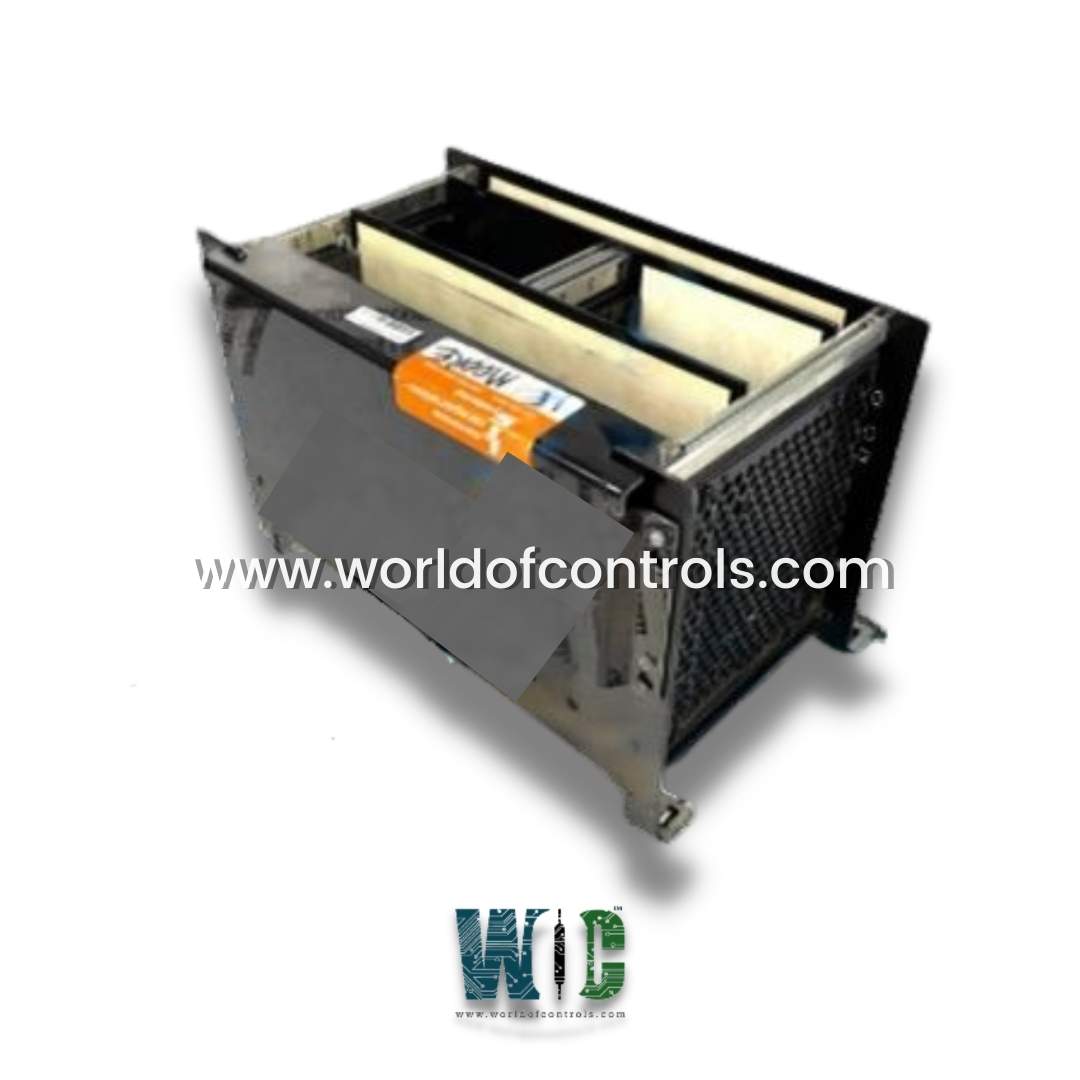

IS200CABPG1A - Control Assembly Backplane (CABP) Board is available in stock which ships the same day.
IS200CABPG1A - Control Assembly Backplane (CABP) Board comes in UNUSED as well as REBUILT condition.
To avail our best deals for IS200CABPG1A - Control Assembly Backplane (CABP) Board, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part Number: IS200CABPG1A
Manufacturer: General Electric
Series: Drive Control
Product Type: Control Assembly Backplane (CABP) Board
Power Requirements: +5 V dc, 6 A
Operating temperature: -30 to +65°C
Backplane Connectors - P1, P2
Size: 30.48cm High x 21.33cm
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEI-100270
FUNCTIONAL DESCRIPTION:
IS200CABPG1A is a Control Assembly Backplane (CABP) Board manufactured and designed by General Electric as part of the Mark VI Series used in GE Drive Control Systems. The IS200CABP Control Assembly Backplane (CABP) board is a multi-layer printed wiring board that provides the interconnections for the printed wiring boards inserted into it and interfaces to external signals. The boards inserted will vary with the power level and application of the Innovation Series drive that the CABP board is part of. Connectors are also provided for various external interfaces such as user control inputs/outputs (I/O), four front panel meters, diagnostic/configuration tools, a front panel keypad, four ISBus ports, and power supply inputs. The CABP board is mounted to the Innovation Series board rack that provides the mounting points for the individual boards.
The CABP board is powered from a single IS200HFPA High-Frequency AC/Fan Power Supply Board (HFPA). Power connections are via a twisted/shielded pair cable for the 48 V AC power and a separate isolated twisted pair cable for the 17 V AC power. Isolation for these cables is 1000 V dc. The CABP board connects the isolated power returns to the control cabinet common (CCOM) either through an impedance (resistor/capacitor) or directly. It also connects DCOM to CCOM. Provisions are available to tie cable shields (when applicable) to the chassis directly. There are two application-specific stab-on connectors each for CCOM and Chassis Ground (GND). GND is tied to the board rack chassis through the mounting screws. CCOM and GND are tied together through a capacitor. The CABP board CCOM is connected to the control cabinet CCOM via the stab-on connectors.
WOC has the largest stock of GE Drive Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.
What is a Control Assembly Backplane (CABP) Board?
The CABP Board is a crucial component in electronic systems, serving as a platform for connecting and interconnecting various control assemblies in a centralized manner.
What is the primary function of the CABP Board?
The main function of the CABP Board is to provide a physical and electrical platform for connecting control modules, facilitating communication and coordination within a larger electronic system.
Does WOC Provide a Warranty Certificate For their Products?
WOC provides warranty certificates depending on the Parts.
