SPECIFICATIONS
Part No.: IC200MDL742
Manufacturer: General Electric
Output points: 32
Country of Manufacture: United States of America (USA)
Product Type: Discrete Output Module
Availability: In Stock
Series: VersaMax
Functional Description

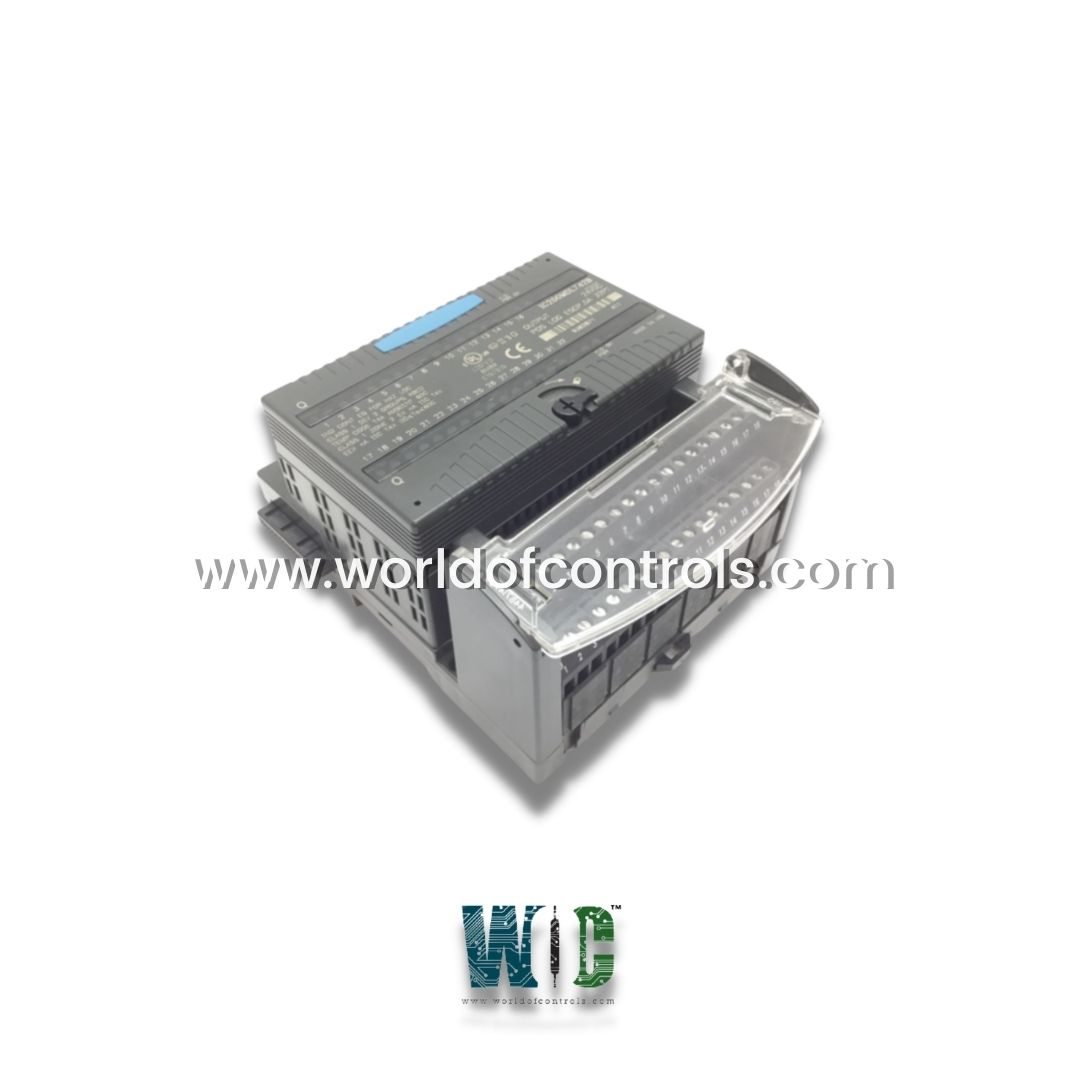

IC200MDL742 is a Discrete Output Module developed by GE. The module is part of the VersaMax series of Programmable Logic Controller (PLC) components. It features a total of 32 discrete output points, which are essential for controlling various devices in industrial automation systems. The 32 output points are divided into two groups of 16, each capable of handling load switching and providing load current.
Features
- Positive Logic Output Configuration: Uses a positive logic configuration for all its output points. In this configuration, when the output is active, it supplies current to the load, and the current is then returned via the common terminal. This positive logic is widely used in industrial systems for controlling devices such as relays, solenoids, and other electrical components.
- Power Requirements: The module requires power from a secondary supply to function. When connected to a 5V output backplane, it consumes a maximum of 150 milliamps of current. The backplane power is essential for driving the internal circuitry of the module, ensuring that the module operates reliably in its intended environment.
- Wide Operating Voltage Range: The module is designed with a flexible operating voltage range, capable of handling input voltages from 18 to 30 volts DC, with a nominal operating voltage of 24 volts DC. This flexibility allows it to be used across a wide range of applications without needing additional voltage regulation. The nominal 24V DC is a standard voltage in industrial control environments, ensuring compatibility with most systems.
- Low Voltage Drop and Leakage Current: The module is engineered to minimize voltage loss during operation. The output voltage drop is rated at a maximum of 0.5 volts, ensuring efficient power delivery to the connected load. Furthermore, when operating at 30 volts DC, the output point leakage current is limited to just 0.5 milliamps, helping reduce energy waste and preventing interference with sensitive devices.
- Fast Switching Response: The module is capable of rapid switching, with a response time of 0.5 milliseconds for both "on" and "off" states. This fast response time is critical in applications where precise control and quick timing are required, such as in real-time industrial processes.
- Load Handling Capabilities: Each output point on the module can handle a resistive load current of 0.5 amperes per point at 30 volts DC. It also supports an inrush current of up to 2.0 amperes for 100 milliseconds, which is essential for accommodating the surge currents of inductive loads such as motors or solenoids during startup.
- Group-to-Group Isolation: While it does not support channel-to-channel or point-to-point isolation, it does offer group-to-group isolation. This isolation is rated for continuous operation at 250 volts AC and can withstand up to 1500 volts AC for one minute.
- Thermal Derating: The module supports thermal derating, which is a process of reducing the maximum allowable output current or the number of active outputs based on ambient temperature and operational conditions. This feature is essential to prevent overheating and to maintain the long-term reliability of the module, especially in environments with high temperatures.
Protection Features
- Electronic Short Circuit Protection automatically interrupts the current flow in the event of a short circuit, preventing damage to the module and connected devices.
- Free-wheeling diodes are included to protect the module from voltage spikes generated by inductive loads during switching operations. This protects both the module and the connected devices, enhancing their longevity.
- The module is designed with overcurrent protection that limits the current to safe levels, preventing potential damage from excessive current draw by the connected devices.
Status Indicators and Diagnostics
- Each output point on the module is mapped to an individual status LED.
- These LEDs provide real-time visual feedback on the "on" or "off" state of each output, allowing operators to monitor the module's performance quickly.
- Additionally, the module includes onboard diagnostics that report the status of any overloaded points, helping users identify and address issues promptly.
The WOC team is always available to help you with your Mark I and II requirements. For more information, please contact WOC.
Frequently Asked Questions
What is IC200MDL742?
It is a discrete output module developed by GE under VersaMax series.
What type of logic do the output points use?
All output points on the module use positive logic. This means that the module supplies current to the load when the output is active, with the current returning via the common terminal.
What power does the board require?
The module draws power from a secondary supply. When connected to a 5V output backplane, it consumes a maximum of 150 milliamps.
What is the operating voltage range for this module?
The operating voltage range is from 18 to 30 volts DC, with a nominal operating voltage of 24 volts DC.
What is the output voltage drop for?
The output voltage drop for the module is rated at a maximum of 0.5 volts, ensuring efficient power delivery to connected devices.
