Part No.: IC200MDL650
Manufacturer: General Electric
Number of Inputs: 32
Input Voltage Range: 0 to 30 Volts DC
Isolation: 1500 Volts AC
Backplane Current Consumption: 50 milliamps, 5 Volts
External Power Supply: None
Configurable Filter Time: 0 ms, 1 ms, or 7 ms
Country of Manufacture: United States of America (USA)
Product Type: Input Module
Availability: In Stock
Series: VersaMax

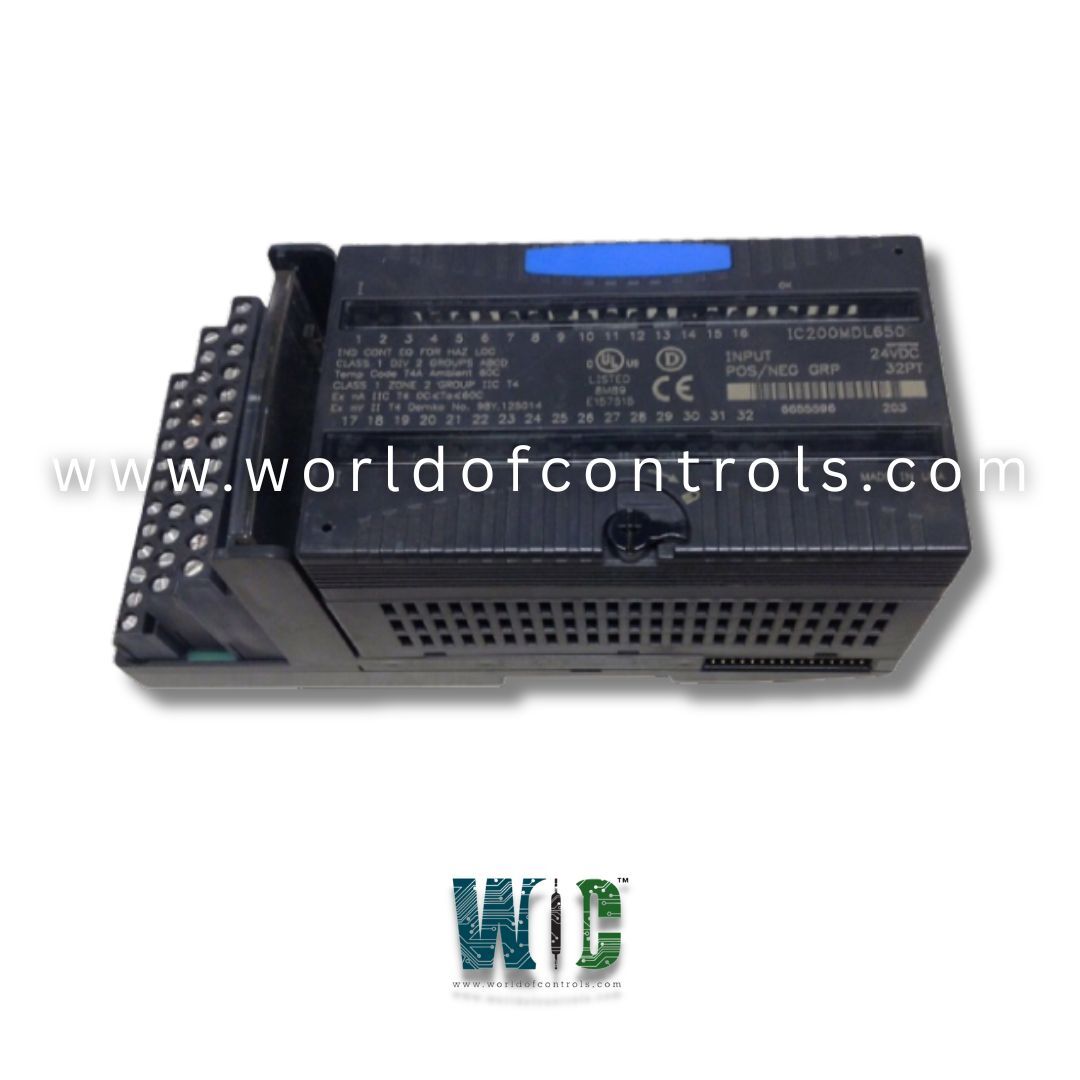

IC200MDL650 is an Input Module developed by GE. The module is part of the VersaMax series of Programmable Logic Controller (PLC) components. It features 32 discrete input points that are organized into four groups of eight. Each input can support both positive and negative logic depending on the application requirements. This module is used in industrial automation and control systems, offering flexible input configurations and reliable performance. The module is equipped with two green indicator LEDs, which provide visual status information about the module’s operation. These LEDs help operators easily identify the working status of the module in real-time.
32 input points are divided into four groups of eight, each of which can be individually configured to operate in either positive logic or negative logic mode. Positive logic, which is the most common configuration, involves current flowing from the input device to the common line. In contrast, negative logic involves current flowing from the common line to the input device. To enable negative logic functionality, the module must be upgraded to this version or higher. This flexibility allows users to adapt the module to meet the specific requirements of their control system, whether they need to interface with devices that operate under positive or negative logic conditions.
The module is powered directly through the rack-mounted backplane, eliminating the need for an external power supply. This integration simplifies installation and ensures reliable power delivery to the module. The key power specifications include an input voltage range of 0 to 30 volts DC, with a nominal operating voltage of 24 volts DC, which is typical for many industrial applications. The module consumes 50 milliamps from the 5V backplane, ensuring efficient use of power resources. Additionally, it has an input impedance of up to 10k Ohms, which affects the current draw from each input point. This low current consumption ensures that the module operates efficiently without placing unnecessary strain on the power supply.
Supports thermal derating, a critical feature when the module operates at higher voltages or in environments with higher ambient temperatures. Thermal derating becomes important when the module operates at 30 volts DC, as the number of active input points may be limited by factors such as ambient temperature, external voltage, and module orientation. For operation at 24 volts DC, thermal derating is not required, ensuring that the module can maintain its full performance in typical industrial settings. This ensures that the module remains operational and reliable even under challenging environmental conditions.
Offers a default input response time of 0.5 milliseconds, providing quick processing of input signals. This rapid response ensures that the system can react quickly to changes in the input state, which is crucial for real-time control and monitoring in industrial automation systems. Additionally, the module features configurable input filtering to optimize signal processing for different applications. Users can select from three filter options: 0 milliseconds, 1 millisecond, and 7 milliseconds, depending on the nature of the input signal and the specific requirements of the application. These settings can be adjusted through the CPU software configuration, providing flexibility in fine-tuning the module's performance.
Designed with a set of key characteristics that ensure reliable operation in industrial environments. The on-state voltage is rated between 15 to 30 volts, ensuring compatibility with a wide range of input devices. The on-state current ranges from 2 to 5.5 milliamps, which ensures that the module draws minimal current while still reliably detecting input signals. To protect the system from voltage surges and other electrical disturbances, the module offers 1500 volts AC of isolation. This high level of isolation provides enhanced safety and ensures the module can operate effectively even in environments with significant electrical noise or other hazards. Finally, with a maximum response time of just 0.5 milliseconds, ensures rapid and accurate processing of input signals, enabling real-time control in complex industrial applications.
