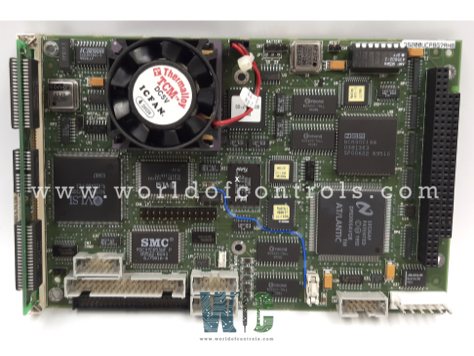

DS200UCPBG7AHB - UC2000 Central Processing Unit Daughterboard

SPECIFICATIONS:

Part Number: DS200UCPBG7AHB
Manufacturer: General Electric
Series: Drive Control
Product Type: UC2000 central Processing Unit Daughterboard
Power Requirements: +5 V dc, 6 A
Number of relay channels: 12
Power supply voltage: 28 V dc
Mounting: DIN-rail mounting
Technology: Surface mount
Operating temperature: -30 to +65°C
Size: 15.9 cm high x 17.8 cm
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEI-100199

FUNCTIONAL DESCRIPTION:

DS200UCPBG7AHB is a UC2000 central Processing Unit Daughterboard manufactured and designed by General Electric as part of the Mark V Series used in GE Drive Control Systems. It functions as an auxiliary board that connects to the main CPU, providing additional processing power and interfaces to manage various subsystems of the turbine. The daughterboard is responsible for processing real-time data from sensors and devices, such as temperature, pressure, and flow sensors, and converting that data into actionable information for system control.

It helps execute control algorithms (like PID controllers) that regulate key turbine operations such as throttle control, speed adjustments, and power generation settings. The UC2000 CPU Daughterboard also ensures effective communication between the main CPU and other connected systems, enabling synchronized operations across multiple components. It improves system reliability by offering redundancy in processing and communication, reducing the risk of system failures. Furthermore, it aids in diagnostics, and logging operational data for maintenance and troubleshooting purposes.

FUNCTIONS OF UC2000 CENTRAL PROCESSING UNIT DAUGHTERBOARD:

• Real-Time Data Processing: The UC2000 Daughterboard processes real-time input from various sensors, such as temperature, pressure, and flow meters. This data is crucial for monitoring turbine performance and ensuring it operates within safe limits.

• Control Algorithm Execution: It executes control algorithms, such as PID (Proportional-Integral-Derivative) controllers, which adjust turbine parameters like speed, pressure, and temperature to maintain optimal performance.

• Communication Interface: The daughterboard facilitates communication between the main CPU and other subsystems within the turbine control system. It ensures smooth data exchange and coordination between different components of the system.

• Signal Conditioning: It conditions signals from sensors and devices to ensure that the data received by the main CPU is accurate and within the expected range, helping prevent errors and malfunctions.

• System Redundancy: The UC2000 Daughterboard provides redundancy, ensuring backup processing and communication paths in case of failure in the main CPU or other parts of the system. This enhances system reliability and minimizes downtime.

• Integration with Distributed Control Systems (DCS): The UC2000 Daughterboard integrates with the broader Distributed Control System (DCS), allowing for centralized monitoring and control of the turbine and other connected subsystems.

WOC has the largest stock of GE Drive Control System Replacement Parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is the UC2000 CPU Daughterboard used for?

The UC2000 CPU Daughterboard is primarily used in turbine control systems and other industrial applications to enhance the processing capabilities of the central CPU. It handles real-time data processing, executes control algorithms, ensures communication between subsystems, and provides system redundancy and safety features.

How does the UC2000 Daughterboard process data?

The daughterboard processes data received from sensors (such as temperature, pressure, and flow sensors) in real time. It converts raw signals into useful information that can be used by the main CPU to control turbine operations and maintain safe, optimal performance.

What types of control algorithms can the UC2000 Daughterboard handle?

The UC2000 Daughterboard is capable of executing various control algorithms, including PID (Proportional-Integral-Derivative) controllers, which regulate critical parameters like turbine speed, temperature, pressure, and other key performance indicators.
