SPECIFICATIONS:
Part Number: DS200UCPBG7AFB
Manufacturer: General Electric
Series: Mark V LM
Product Type: Unit Controller Central Processing Daughter Board
Power Requirements: +5 V dc
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEI-100199
FUNCTIONAL DESCRIPTION:

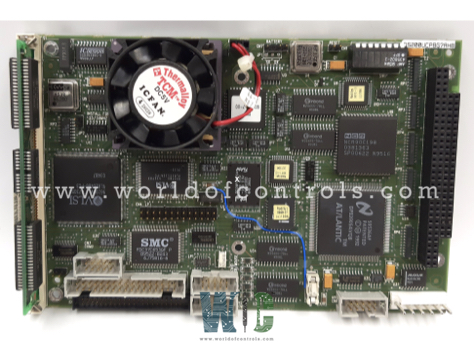

DS200UCPBG7AFB is a Unit Controller Central Processing Daughter Board manufactured and designed by General Electric as part of the Mark V LM Series used in GE Speedtronic Control Systems. The UCPB board operates on 5 V dc power (4.75 V to 5.25 V). The 5 V power is supplied to the board through an extended PC/104 bus connector. Other features such as LPT1 (parallel printer port), FLOPPY disk drive, IDE(hard disk drive), and KB(keyboard) are shown on the board layout but are not used in this application. The IO Engine CPU board (UCPB) is the daughterboard that is mounted on the STCA of the IO Engines. The UCPB board includes an 80486DX processor (CPU), a single inline memory module (SIMM) socket with DRAM, a flash erasable programmable read-only memory (EPROM) with ROM BIOS, an I/O mapped flash EPROM, two RS-232 serial ports, and an ARCNET driver. Each IO Engine (R1, R2, R3, and R5) has one UCPB installed. The UCPB has a PCM daughterboard fitted for serial connection with FMVED motor controllers.
UCPB CONFIGURATION:
Hardware: There are three hardware jumpers on the UCPB board. JP1 and JP3 are used for factory testing. JP2 determines the 486 local bus speed. To reboot, use the power on/off switch for the IO core in the core. This is the preferred way. DIP switches are used to configure the COREBUS address for a certain IO Engine. Appendix A contains information on the hardware jumper settings for this board. If the serial connection with a GE Industrial Systems motor controller is necessary, the hardware jumpers on the PCM must be adjusted following the FMVED commissioning instructions.
Software: TMIA is the IO Engine's software package, which includes the IO configuration data for the FMVED serial download software, WATT/VAR input, and three pulse rate inputs.
