DS200TCTGG1AFF

DS200TCTGG1AFF - Simplex Trip Board

DS200TCTGG1AFF - Simplex Trip Board DS200TCTGG1AFF - Simplex Trip Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200TCTGG1AFF - Simplex Trip Board is available in stock which ships the same day.

DS200TCTGG1AFF - Simplex Trip Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200TCTGG1AFF - Simplex Trip Board, contact us and we will get back to you within 24 hours.

Request For Quote
Contact Us

Featured Product

SPECIFICATIONS

Part Number: DS200TCTGG1AFF
Manufacturer: General Electric
Function: Medium Trip Board
Series: Mark V

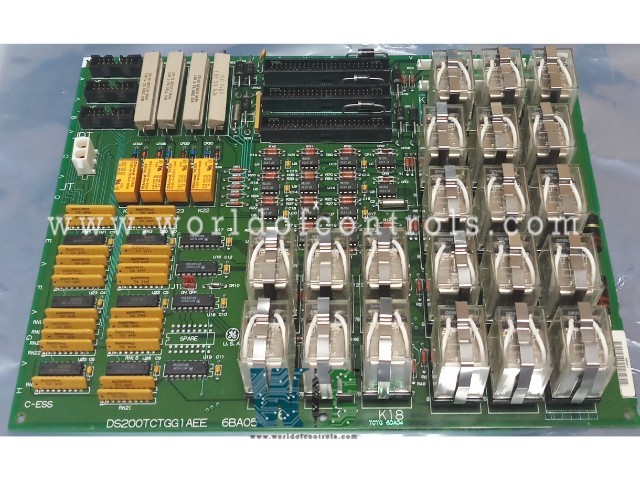

The DS200TCTGG1AFF is a Simplex Trip Board and is part of the GE Speedtronic Mark V gas turbine control systems. The Simplex Trip board functions as a medium trip board. There are 21 plug-in relays on the Simplex Trip Board DS200TCTGG1AFF. The board also includes three 50-pin connectors and two 12-pin connectors. JLY, JLX, and JLZ are the IDs allocated to the 50-pin connectors. JN and JM are the IDs assigned to the 12-pin connectors. The 21 plug-in relays have IDs that begin with K and end with a number.

  • The numbers are in ascending order, starting with 1. K1, K5, K10, and K21 are some of the IDs. Metal straps hold the relays in place as they snap into place on the board. Detach the metal strap from the relay and pull it out of the connector to remove it.
  • Align the relay with the connector and press it into the connector to install it. After that, clip one end of the metal strap to the connector, arrange the metal strap over the top of the relay and clip the other end of the metal strap to the other side of the connector.
  • WORLD OF CONTROLS can also supply UNUSED and REBUILT DS200TCTGG1AFF backed up with a warranty of 24 months. Our team of experts is available round the clock to support your DS200TCTGG1AFF needs.
  • Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.


FREQUENTLY ASKED QUESTIONS

What is Mark V DS200TCTGG1AFF?

The DS200TCTGG1AFF is a Simplex Trip Board and it functions as a medium trip board.

How long does it take for a WOC DS200TCTGG1AFF to Ship?

WOC maintains a large inventory and can fulfill many orders on the same day. Please contact us for additional information.

Is there a Phone Number for WOC?

Please contact World of Controls FZE for sales at +1 609 385 1231
