DS200TCPSG1AME - DC INPUT POWER SUPPLY

SPECIFICATIONS

Part Number: DS200TCPSG1AME
Manufacturer: General Electric
Series: Mark V
Function: Power Supply Board

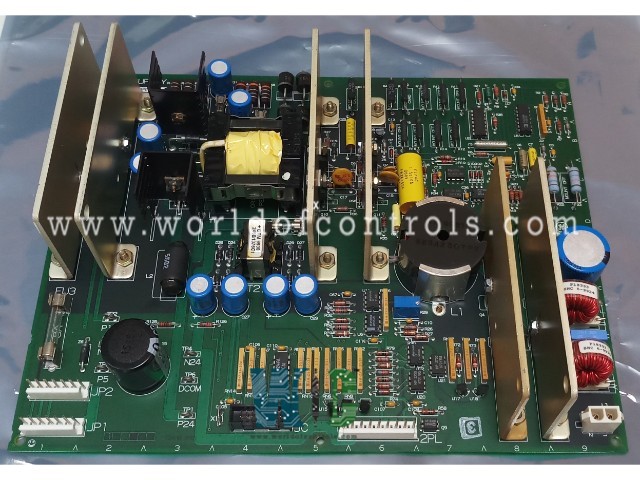

DS200TCPSG1AME is a DC Input Power Supply Circuit Board and is part of the GE Speedtronic Mark V gas turbine control systems. It transforms TCPD 125 VDC power from the PD> core to the voltages required by other Mark V system components and applications. RTD power supply voltages, servo valve current outputs, and microprocessor power supply voltages are all examples of this. The J1 connector supplies 125 VDC power to the TCPS board, as well as the 2PL, JC, JP1, and JP2 connectors that transmit power supply voltages to boards like the TCQC, TCCA, and TCDA. There are no hardware or software configurations for the DS200TCPSG1AME.

• Multiple fuses are included in the DS200TCPSG1AME to safeguard components. Multiple heat sinks, resistor network arrays, TP test points, transformers, inductor coils, and many metal oxide varistors are also included to dissipate heat from the board.

• WOC has the largest stock of Speedtronic Mark V control spares and we can repair your faulty DS200TCPSG1AME with a warranty of 12 months. WORLD OF CONTROLS can also supply UNUSED and REBUILT DS200TCPSG1AME backed up with a warranty of 24 months.

• Our team of experts is available round the clock to support your DS200TCPSG1AME needs. Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is DS200TCPSG1AME?

The DS200TCPSG1AME is a DC Input Power Supply Circuit Board that is used in GE Speedtronic Mark V gas turbine control systems.

How do DS200TCPSG1AME transfer the power systems?

It converts the PD> core's TCPD 125 VDC power to the voltages required by other Mark V system components and applications.

How long does it take for a WOC DS200TCPSG1AME to Ship?

WOC maintains a large inventory and can fulfill many orders on the same day. Please contact us for additional information.
