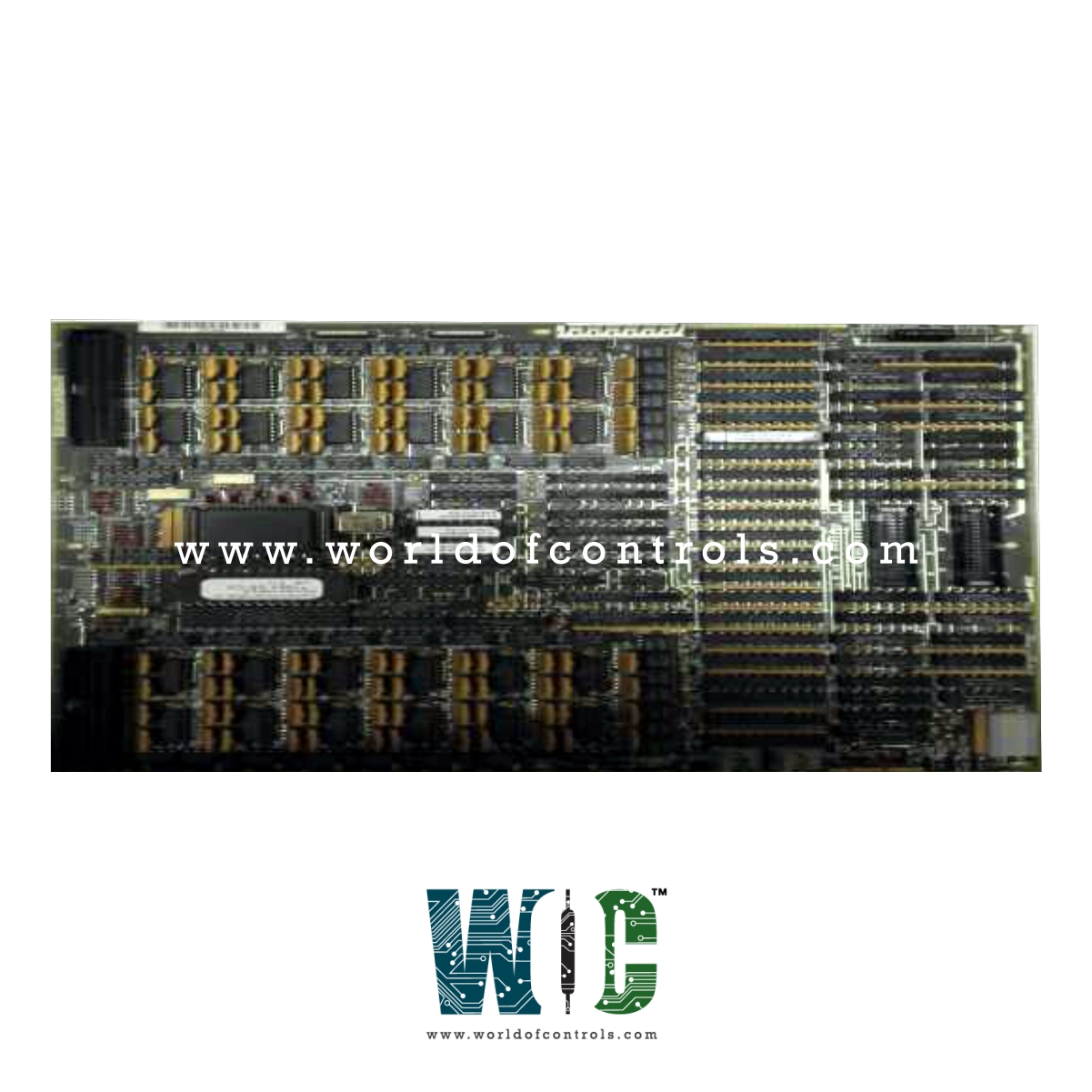

DS200TCDAG1BDB - Digital I/O Board

SPECIFICATIONS:

Part Number: DS200TCDAG1BDB
Manufacturer: General Electric
Series: Mark V LM
Product Type: Digital I/O Board
Power Requirements: +5 V dc, 6 A
Number of relay channels: 12
Power supply voltage: 28 V dc
Mounting: DIN-rail mounting
Technology: Surface mount
Operating temperature: -30 to +65°C
Size: 15.9 cm high x 17.8 cm
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEI-100182B

FUNCTIONAL DESCRIPTION:

DS200TCDAG1BDB is a Digital I/O Board manufactured and designed by General Electric as part of the Mark V LM Series used in GE Speedtronic Control Systems. The Digital IO Board (TCDA) is housed within the digital I/O cores , , and , if applicable. It manages digital contact input signals originating from the DTBA and DTBB terminal boards, as well as contact output signals (relay/solenoid) from the TCRA boards. These signals are relayed via the IONET to the TCQC board in and , or to the CTBA terminal board in when is included.

TCDA CONFIGURATION:

HARDWARE: The TCDA board features eight hardware jumpers with specific functions. J1 and J8 are designated for factory testing, while J2 and J3 handle IONET termination resistors. Jumpers J4, J5, and J6 configure the board's IONET ID, and J7 enables the stall timer. For detailed hardware jumper settings, consult Appendix A and the operator interface's hardware jumper screen.

SOFTWARE: The I/O Configuration Editor on the HMI is used to input constants for contact input inversions, as detailed below.

TCDA CONNECTORS:

• JP: Distributes power from the TCPS board in the R1, R2, and R5 cores to the Q11, Q21, and Q51 cores, respectively.
• JQ: Connects to the JQR socket on the DTBA board, transmitting contact input signals from the DTBA board to the TCDA board.
• JR: Connects to the JRR socket on the DTBB board, conveying contact input signals from the DTBB board to the TCDA board.
• JO1: Transmits contact output (relay/solenoid) signals to the TCRA board in location four. Not utilized in Q11, as the relays in location 4 are directly controlled by TCQE in R1.
• JO2: Transmits contact output (relay/solenoid) signals to the TCRA board in location five.
• JX1: This is a shielded twisted pair cable for IONET signals. The TCDA board in the Q11 core sends signals to the JX2 connection on the TCEA board in location five of the P1 core.
• JX2: Used for the same function as JX1. Either JX1 or JX2 can be employed for this purpose.

WOC has the largest stock of GE Speedtronic control system replacement parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is the primary function of the TCDA board?

The TCDA board processes digital contact input signals from the DTBA and DTBB terminal boards and handles contact output signals, such as relays and solenoids, from the TCRA boards.

How are signals transmitted from the TCDA board?

Signals are transmitted via the IONET to the TCQC board in and or the CTBA terminal board in if is installed.

What happens if is not installed?

If is not installed, signal transmission from the TCDA board will be directed to the TCQC boards in and without routing to .
