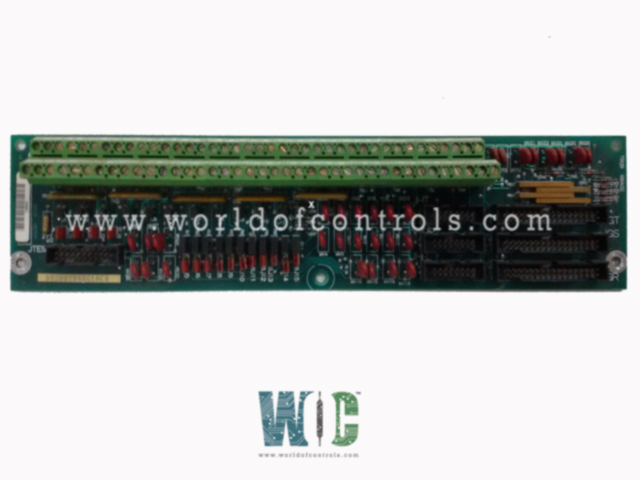

DS200TBQBG1AAA - Input Termination Module

SPECIFICATIONS:

Part Number: DS200TBQBG1AAA
Manufacturer: General Electric
Series: Mark V
Product Type: Input Termination Module
Power Requirements: +5 V dc
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEH-6153

FUNCTIONAL DESCRIPTION:

DS200TBQBG1AAA is an Input Termination Module manufactured and designed by General Electric as part of the Mark V Series used in GE Speedtronic Control Systems. The Input Termination Module (TBQB) is in location seven of the and cores. The TBQB terminal board in the core is connected to the TCQA and TCQC boards in the core. The TBQB terminal board in the core is connected to the TCQA and TCQC boards in the core. The voltage, vibration, and pulse rate input signals are landed on the TBQB terminal board.

FEATURES:

Impedance Matching: An Input Termination Module is designed to match the impedance of the incoming signal to the system's input impedance. This helps prevent signal reflections and ensures efficient signal transfer.

Signal Conditioning: It may include features for conditioning the incoming signal, such as amplification, filtering, or other adjustments to prepare the signal for further processing.

Data Validation and Error Handling: In the context of data processing, the module may incorporate validation checks to ensure the integrity and accuracy of incoming data. Error-handling mechanisms may also be implemented.

Protocol Handling: If dealing with communication systems, the module might be equipped to handle specific communication protocols, ensuring that incoming data adheres to the expected format or standards.

Security Checks: In scenarios where security is crucial, the module may include features for validating the authenticity and integrity of incoming data, protecting the system from potential threats.

Compatibility: The Input Termination Module should be designed to be compatible with the overall system or network architecture, considering factors like voltage levels, communication protocols, and data formats.

WOC has the largest stock of GE Speedtronic Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is an Input Termination Module?

An Input Termination Module is a component or module designed to handle and process incoming signals or data. It often includes features for impedance matching, signal conditioning, and other tasks to ensure proper integration with the overall system.

Why is impedance matching important in an Input Termination Module?

Impedance matching is crucial to prevent signal reflections, ensuring efficient signal transfer and minimizing the risk of signal distortion. Matching the input impedance of the module with the source impedance optimizes the signal path.

What types of signals can an Input Termination Module handle?

Input Termination Modules can handle a wide range of signals, including analog and digital signals. The specific types of signals depend on the module's design and the requirements of the system it is integrated into.
