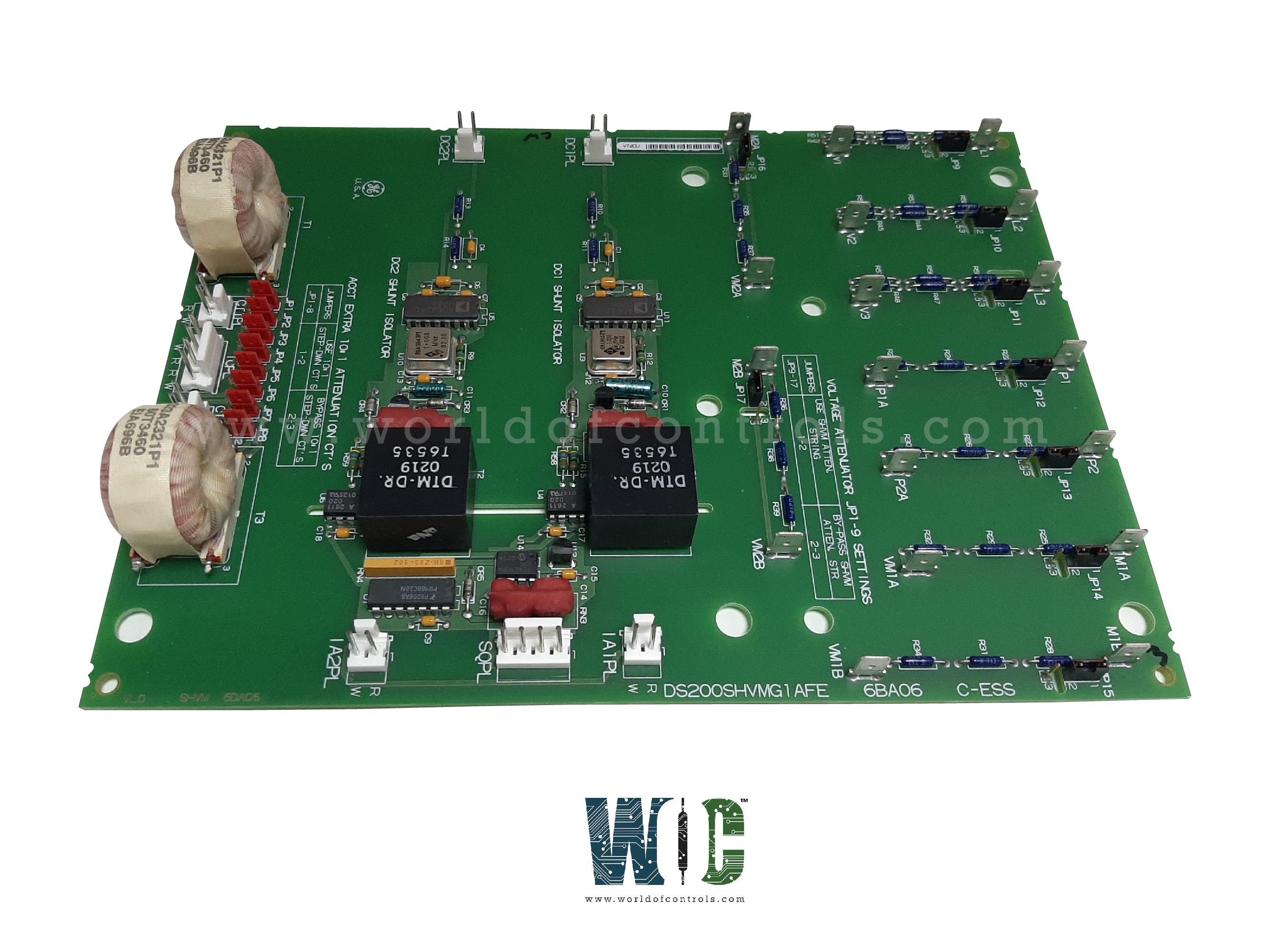

DS200SHVMG1AFE - SCR High Voltage M-Frame Interface Board

SPECIFICATIONS:

Part Number: DS200SHVMG1AFE
Manufacturer: General Electric
Series: EX2000
Product Type: SCR High Voltage M-Frame Interface Board
Input Voltage Range: -500 mV to +500 mV
Number of relay channels: 12
Power supply voltage: 28 V dc
Output Frequency Range: 0 to 500 kHz
Mounting: DIN-rail mounting
Current Attenuation: Jumper-selectable 10:1
AC Line Voltage Attenuation Bypass: 240–600 V
Technology: Surface mount
ACCT Secondary Current Rating: 144 mA maximum
Operating temperature: -30 to +65°C
Size: 15.9 cm high x 17.8 cm
Repair: 3-7 Day
Price: $$$$
Availability: In Stock
Country of Origin: United States
Manual: GEI-100174A

FUNCTIONAL DESCRIPTION:

DS200SHVMG1AFE is a SCR High Voltage M-Frame Interface Board manufactured and designed by General Electric as part of the EX2000 Series used in GE Excitation Control Systems. The SCR High Voltage M-Frame Interface Board provides an interface for signals from an M-frame drive’s SCR bridge to the DCFB or SDCI Power Supply Board and PCCA Power Connect Card. It Converts shunt signals (–500 mV to +500 mV) into differential-frequency outputs (0 to 500 kHz) that are sent to the DCFB or SDCI board. Incorporates hardware jumper-selectable 10:1 current transformers to provide additional current attenuation capability. Provides attenuation of AC line, motor armature, and SCR bridge voltages.

DC BRIDGE SHUNT ISOLATOR CIRCUITS:

The dc positive (+) and dc negative (−) floating shunt isolator voltage-controlled oscillator (VCO) circuits convert shunt signals from the bridge. The circuits range from −500 mV to +500 mV (0 to 500 kHz) and are fed to the DCFB board. The isolator input circuits float to the bridge potential of the dc+ and dc− voltages.

AC CURRENT TRANSFORMERS (ACCTs):

The SHVM board provides 10:1 current transformer (CT) attenuation for the ac line currents (phase A and phase C) if required. This attenuation is jumper selectable. Attenuation is required above 144 mA main line ACCT secondary current (rated DC/ACCT ratio) because the CT burden resistors on the SDCI and DCFB Power Supply Boards are not rated to handle more than 144 mA. Attenuation should be bypassed when the main line ACCT secondary current is less than 144 mA.
