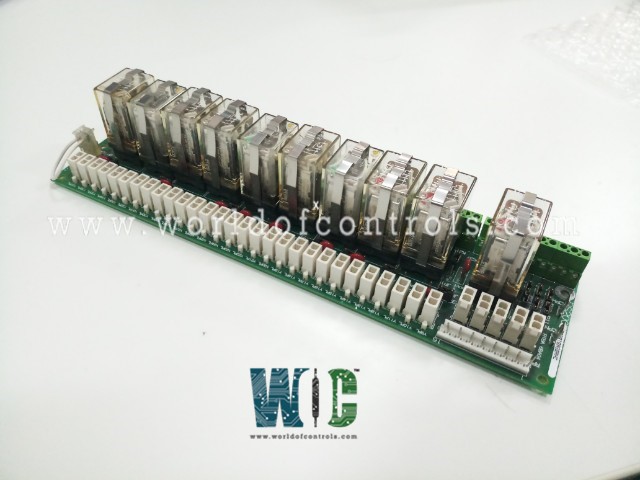

DS200RTBAG2ABB - Relay Terminal Board

SPECIFICATIONS

Part Number: DS200RTBAG2ABB
Manufacturer: General Electric
Series: Drive Control
Product Type: Relay Terminal Board
Temperature 0 to 60oC
Availability: In Stock
Country of Manufacturer: United States (USA)

Functional Description

DS200RTBAG2ABB is a Relay Terminal Board developed by General Electric. It is a part of Drive Control series. This optional board is designed for use in drive or exciter cabinets, providing advanced relay-driven functionalities for industrial systems. It enhances control by allowing both direct relay control and remote user operation, making it a versatile component for diverse applications.

Features

• Relay Configuration: The board features ten relays designated as K20 through K29. Seven relays (K20�K26) are DPDT relays with two Form C contacts. Three relays (K27�K29) are 4PDT relays with four Form C contacts. Each relay includes an LED indicator to display its energized status.
• Protection Mechanisms: The relays are safeguarded by 130 V AC metal oxide varistors (MOVs), protecting the I/O from voltage spikes and surges.
• Replaceable Relays: All relays are individually replaceable. The replacement process is straightforward but requires the power to the drive to be turned off to prevent equipment damage.

Relay Replacement Procedure

• Turn Off Power: Ensure the drive�s power is disconnected to avoid damage or injury.
• Access the RTBA Board: Open the cabinet door and locate the RTBA board, usually positioned below the drive�s board rack.
• Remove the Relay: Release the retaining clip by pressing the top and pulling it from the sides. Gently pull the relay straight out of its socket.
• Install the New Relay: Align the new relay properly (it fits only in one orientation). Press it into the socket until securely seated. Replace the retaining clip by centering it and
• pressing down until it locks into place.

Connections and Power Supply

• Primary Connectors: 16-pin (RPL) and 2-pin (OPTPL) connectors facilitate communication between the RTBA and LTBA boards. The signals from the RPL connector are jumper-selectable, providing flexibility in signal configuration.
• Stab Connectors: CPH (Control Power Hot) and CPN (Control Power Negative) supply control power to pluggable circuits. The use of these connectors is also jumper-selectable.
• Relay Access Points: Relays K27�K29 are accessible via connectors C1PL�C5PL and Y9PL�Y37PL, with jumper-selectable control power sources.
• External Signal Connections: The terminals 1�52 on the RTBA board allow external signals to connect with relays K20�K26. Jumper settings determine the control power source for these relays, ensuring adaptability for specific setups.

Applications

• Flexible relay-based control for drive systems.
• Protection against voltage irregularities with built-in MOVs.
• Simple relay replacement and configuration processes.

WOC has the largest stock of Speedtronic control spares. Please contact our staff by phone or email for pricing and availability on any parts and repairs

FREQUENTLY ASKED QUESTIONS

What is DS200RTBAG2ABB?
It is a Relay Terminal Board developed by General Electrics.

What protection features are included?
The relays are protected by 130 V AC metal oxide varistors (MOVs), which shield them from voltage spikes and surges.

How are external signals connected to the relays?
External signals for relays K20�K26 are connected through terminals 1�52 on the board. The control power source for these connections is jumper-selectable.

What are the jumper configuration options?
The board features several jumper settings that allow customization for signal usage and control power sources. Detailed jumper descriptions are provided in the technical manual.
