DS200LDCCH1ANA

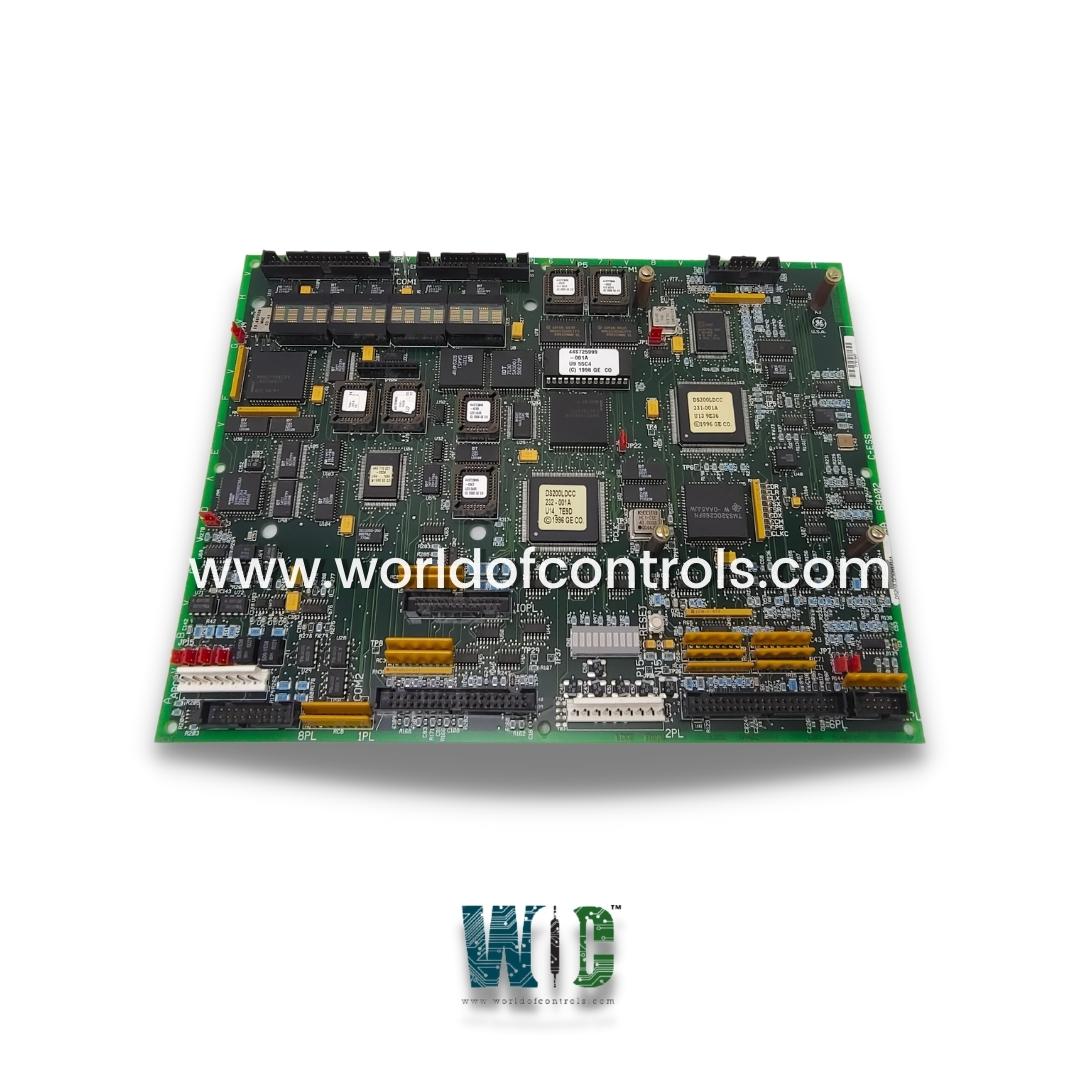

DS200LDCCH1ANA - LAN Communications Board

DS200LDCCH1ANA - LAN Communications Board DS200LDCCH1ANA - LAN Communications Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200LDCCH1ANA - LAN Communications Board is available in stock which ships the same day.

DS200LDCCH1ANA - LAN Communications Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200LDCCH1ANA - LAN Communications Board, contact us and we will get back to you within 24 hours.

Request For Quote
Contact Us

Featured Product

SPECIFICATIONS

Part No.: DS200LDCCH1ANA
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Temperature: 0 to 60 oC
Product Type: LAN Communications Board
Availability: In Stock
Series: Drive Control

Functional Description

DS200LDCCH1ANA is a LAN Communications Board developed by GE. It is a part of Drive Control system. The board is designed to provide precise motor control, while also allowing seamless communication over a Local Area Network (LAN), facilitating centralized monitoring and control of drives and associated equipment. It interacts with sensors, controllers, and actuators to adjust the drive's output based on the real-time needs of the system. This ensures the drive operates efficiently and reliably, controlling machinery like conveyors, pumps, and other automated equipment.

Features

  • Configuration data is stored in six flash PROM components, which are directly attached to the board's base circuit. These PROMs are marked with their own unique hardware reference designators, U7-U21. This storage configuration allows for fast and reliable access to configuration data, ensuring the board can function correctly in various operational scenarios.
  • To enhance the board’s performance in high-noise environments, equipped with an additional stab connector. This feature helps reduce electrical interference, ensuring stable and accurate signal transmission even in environments with significant electrical disturbances.
  • The board plays a crucial role in signal conversion, supporting both analog-to-digital (A/D) and digital-to-analog (D/A) signal transformations. This capability is essential for maintaining the integrity and precision of control signals as they move between different components of the system.
  • The board supports voltage-controlled oscillator (VCO) inputs, allowing it to interface with external devices that require precise control over frequency and voltage parameters.
  • It integrates built-in I/O peripherals and a direct memory access (DMA) controller, which enhances data transfer efficiency and reduces CPU load. The DMA controller allows for high-speed data communication between the board and other system components without placing a heavy burden on the microprocessors.
  • The board features a 16-character digital display, providing real-time status information and system diagnostics. Additionally, the board includes the KPPL connector on its interface, allowing for seamless connection with other components or diagnostic tools.
  • In the event of a malfunction or trip condition that causes the drive to shut down unexpectedly, the board may require a hard reset. This occurs when power is interrupted, and the system must restart. It is important to note that hard resets should be avoided unless absolutely necessary, as they can lead to system instability or data loss.

Multi-Microprocessor Architecture

  • DCP (Drive Control Processor): Handles the drive control functions.
  • MCP (Motor Control Processor): Manages motor-related tasks and operations.
  • CMP (Communications Processor): Oversees communications between the board and connected devices.
  • LCP (LAN Control Processor): Specifically manages the LAN network communication, ensuring smooth data exchange across the system.
  • This multi-microprocessor setup enables parallel processing of different tasks, ensuring the system operates efficiently and reliably.

The WOC team is always available to help you with your Drive Control requirements. For more information, please contact WOC.

Frequently Asked Questions

What is DS200LDCCH1ANA?
It is a LAN Communications Board developed by GE under the Drive Control series.

What is the function of the flash PROMs on the board?
The board stores configuration data in six flash PROM components. These PROMs ensure the board retains critical settings and parameters, allowing for proper operation. Each PROM has a designated reference designator (U7-U21).

What is the stab connector for, and why is it included?
The stab connector is included to protect the board from electrical noise. It improves the board’s performance and signal accuracy in high-noise environments, making it suitable for demanding industrial applications where electromagnetic interference (EMI) is prevalent.
