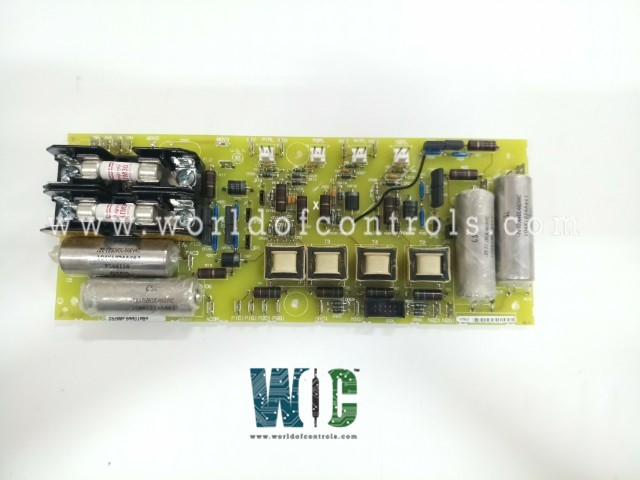

DS200FSAAG1ABA - Field Supply Gate Amplifier Board

SPECIFICATIONS

Part Number: DS200FSAAG1ABA
Manufacturer: General Electric
Series: Drive Control
Product Type: Field Supply Gate Amplifier Board
Temperature 0 to 60oC
Availability: In Stock
Country of Manufacturer: United States (USA)

Functional Description

DS200FSAAG1ABA is a Field Supply Gate Amplifier Board developed by General Electric. It is a part of Drive Control series. The board features phase control to regulate four silicon-controlled rectifiers (SCRs). These SCRs enable the plugging operation, a characteristic feature of the model. Jumpers on the model facilitate the provision of an NRX function in the event of excessive field issues encountered during the non-reversing plugging (NRP) application.

Features

• Compatibility: The model is versatile, capable of operating in both NRP and NRX functions, providing flexibility in various operational scenarios.
• Fuse Protection: Equipped with two Limitron fast-acting fuses, each with a KTK symbol and rated at 30 amps, the model safeguards fields up to 24 A and the alternating current (AC) metal-oxide varistor (MOV). For fields exceeding 24 A, larger external fuses are required to feed the field.
• Terminal Connector: The model features a 10-pin terminal connector labeled FPL, providing a convenient interface for connectivity within the drive system.
• Functionality: Offers control of silicon-controlled rectifiers P2 and N2, enabling them to turn on independently when their anode voltage is positive. The model is specifically designed to function only in NRX mode, lacking the capability to operate in NRP mode like its counterpart.

Attributes

• Field Supply Regulation: As a Field Supply Gate Amplifier Board, the component is tasked with regulating field supplies within drive systems, ensuring consistent and reliable operation of associated machinery and equipment.
• Amplification Capabilities: Leveraging advanced amplification technologies, the boosts control signals to effectively manage field supply voltages, enabling precise control and modulation as per system requirements.
• Compatibility: Designed with versatility in mind, the card is compatible with a wide range of drive systems, offering seamless integration and interoperability across diverse industrial applications.
• Robust Construction: Engineered with high-quality materials and built to stringent quality standards, it boasts robust construction, ensuring durability and reliability in demanding industrial environments.
• Diagnostic Capabilities:Equipped with diagnostic features, it provides valuable insights into the health and status of field supplies and associated components. Comprehensive diagnostics enable the timely identification and resolution of issues, minimizing downtime and optimizing system performance.
• Safety Features:Compliant with industry standards and regulations, it incorporates safety features to protect both personnel and equipment during operation. These features enhance operational safety and mitigate the risk of accidents or malfunctions.

WOC has the largest stock of Speedtronic control spares. Please contact our staff by phone or email for pricing and availability on any parts and repairs

FREQUENTLY ASKED QUESTIONS

What is DS200FSAAG1ABA?
It is a Field Supply Gate Amplifier Board developed by General Electrics.

What are the key features?
It features phase control to regulate four silicon-controlled rectifiers (SCRs), enabling the plugging operation. It also includes jumpers to facilitate the provision of an NRX function in the event of excessive field issues during the NRP application.

How does the card provide protection for fields and the AC metal-oxide varistor (MOV)?
Equipped with two Limitron fast-acting fuses rated at 30 amps, the board safeguards fields up to 24 A and the AC MOV. Larger external fuses are required for fields exceeding 24 A.
