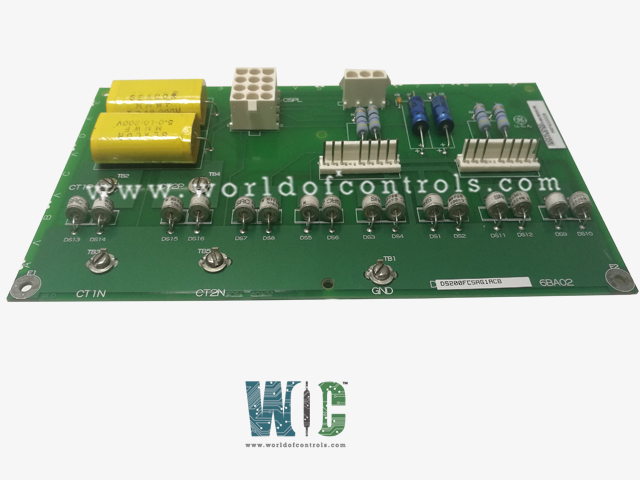

DS200FCSAG1ACB - Current Sensing Feedback Board

SPECIFICATIONS

Part Number: DS200FCSAG1ACB
Manufacturer: General Electric
Series: Drive Control
Product Type: Current Sensing Feedback Board
Temperature 0 to 60oC (32 to 149 oF)
Availability: In Stock
Country of Manufacturer: United States (USA)

Functional Description

DS200FCSAG1ACB is a Current Sensing Feedback Board developed by General Electric. It is a part of Drive Control series. The Board designed for integration within the Static Starter Power Conversion Cabinet. Its primary role is to facilitate current sensing feedback functionality within the system. This board plays a crucial role in ensuring precise monitoring and control of current levels within the associated adjustable speed ac drive systems utilized alongside gas turbine generators.

Features

• The board interfaces seamlessly with other components and subsystems within the Static Starter Power Conversion Cabinet. Its integration within this setup underscores its significance in enabling efficient and reliable operation of the system, as well as the associated gas turbine generator systems.
• Functionally, the board serves to provide accurate feedback on current levels, allowing for real-time monitoring and control of critical parameters. This feedback mechanism enhances the overall performance and operational stability of the adjustable speed ac drive systems, contributing to optimal functionality and efficiency of the gas turbine generator setup.
• Furthermore, the model's compatibility with various adjustable speed ac drive systems highlights its versatility and adaptability to different operational contexts and configurations. This flexibility makes it a valuable component in a wide range of industrial applications where precise current sensing and control are essential for ensuring safe and reliable operation.

Characteristics

• Difference between CPSL and LEMPS Connectors: The primary difference between the CPSL and LEMPS connectors lies in the number of pins. Both connectors are utilized for power control purposes within the system.
• Preventing Power Errors: If there are suspicions of power errors on the board, it is advisable to unplug the LEMPS connector as a precautionary measure.
• Connection and Mounting: Mounted in the static starter power conversion cabinet, it interfaces with various components of the ac drive system designed for gas turbine generator prime movers. The board features two versions of sub-D pin connectors, including a three-pin LEMPS connector and a twelve-pin CPSL connector. When used with a Control Power Supply (CPS), the CPS directly produces voltage outputs for the DS200FCSAG2A, typically ranging from twenty-four to five volts. Disconnecting the LEMPS connector before voltage checks can prevent errors.

WOC has the largest stock of Speedtronic control spares. Please contact our staff by phone or email for pricing and availability on any parts and repairs

FREQUENTLY ASKED QUESTIONS

What is DS200FCSAG1ACB?
It is a Current Sensing Feedback Board developed by General Electrics.

How do I verify the voltage on the board?
Verify the voltages at specific points of the LEMPS plug, including pins N15 (pin 3), P15 (pin 1), and ACOM (pin 2). Once verified, reconnect the LEMPS plug at the FCSA-L (load bridge).

What is the difference between CPSL and LEMPS connectors?
The primary difference lies in the number of pins. Both connectors are used for power control purposes within the system.

Where can I find more detailed technical information?
For detailed technical information, refer to the GEI-100222 manual and the GEH-6678G Installation and Startup Users Guide. Additionally, the GEI-100476 ControlST Manual provides insights into compatibility within the Series.
