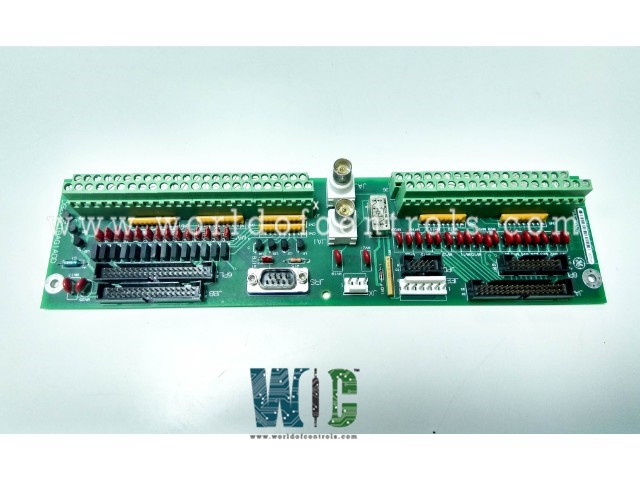

DS200CTBAG1ACB - Termination Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200CTBAG1ACB - Termination Module is available in stock which ships the same day.

DS200CTBAG1ACB - Termination Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200CTBAG1ACB - Termination Module, contact us and we will get back to you within 24 hours.

Request For Quote

SPECIFICATIONS

Part No.: DS200CTBAG1ACB
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Product Type: Termination Module
Availability: In Stock
Series: Mark V

Functional Description

DS200CTBAG1ACB is a Termination Module developed by GE. It is a part of the Mark V control system. The CTBA (Analog Termination Module) is located in the R5 core of the Mark V system. It serves as a termination point for several important signal types and communication pathways 4-20 mA Output and Input Signals, Shaft Voltage and Current Connections, IONET Communication, COREBUS Communication and Power Monitoring Interface

Connectivity

8PL - Carries IONET signals to the STCA board in the R5 core.
JAA - Outputs 4-20 mA signals from the TCCA board in the R5 core.
JAI - Used for COREBUS communication. If unused, a termination resistor should be installed.
JAJ - Another COREBUS connection; like JAI, it requires a termination resistor if not connected.
JBB - Receives 4-20 mA inputs and shaft-related signals (voltage and current) and routes them to the TCCA board in R5.
JEE - Handles COREBUS communication with the STCA board in R5.
JPD - Supplies 24 V DC power from the TCPD board in the PD core.
JX - Routes IONET signals to the TCDA board in the Q51 core.
6PL - Typically unused in standard configurations.

Power Redundancy

The CTBA includes a bypass relay to allow COREBUS communication to continue if power to the board is lost, enhancing system reliability.

Hardware Configuration and Jumpers

BJ1 through BJ14 - These jumper positions connect the negative terminal (NEG) of their respective mA input signals to DCOM (common ground).
BJ15 - Connects the RS232 Monitor Port (TIMN) to DCOM.

The WOC team is always available to help you with your Mark V requirements. For more information, please contact WOC.

Frequently Asked Questions

What is DS200CTBAG1ACB?
It is a Termination Module developed by GE under the Mark V series.

Where is the CTBA module located in the Mark V system?
The CTBA module is located in the R5 core of the Mark V control system.

How does the CTBA receive power?
The CTBA receives 24 V DC power through connector JPD from the TCPD board located in the PD core.
