World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

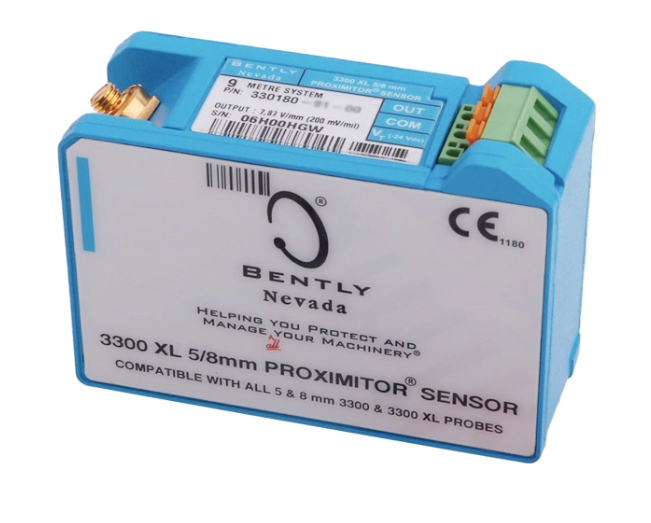

330180-90-05 - 3000 XL 5/8mm Vibration Proximitor Sensor is available in stock which ships the same day.
330180-90-05 - 3000 XL 5/8mm Vibration Proximitor Sensor comes in UNUSED as well as REBUILT condition.
To avail our best deals for 330180-90-05 - 3000 XL 5/8mm Vibration Proximitor Sensor, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part Number: 330180-90-05
Manufacturer: Bently Nevada
Product Type: 3000 XL 5/8mm Vibration Proximitor Sensor
Product Family: 3300 XL, 3300XL, 3300-XL
Condition: New
Availability: In Stock
Payment: Bank Transfer
Country of Origin: USA
Dimension : 100 mm × 50 mm × 60 mm
Weight: 246 g
Warranty: Upto 24 Months
Manual: GEI-10072
FUNCTIONAL DESCRIPTION:
330180-90-05 is a 3000 XL 5/8mm Vibration Proximitor Sensor manufactured and designed by Bently Nevada as a part of the 3300 series used in Machinery Condition Monitoring systems. The Bently Nevada 3300 XL 8mm Proximity Transducer System includes a 3300 XL 8mm probe, a 3300 XL extension cable, and a 3300 XL Proximitor Sensor. It delivers an output voltage proportional to the distance between the probe tip and the observed conductive surface, enabling measurements of both static (position) and dynamic (vibration) values. Designed primarily for vibration and position monitoring on fluid-film bearing machines, it is also suitable for Keyphasor reference and speed measurements. The standard 5-meter system complies with the API 670 Standard (4th Edition), meeting requirements for mechanical configuration, linear range, accuracy, and temperature stability. The system's components—probes, cables, and Proximitor sensors—are fully interchangeable, ensuring consistent performance without requiring individual matching or calibration.
PROXIMITOR SENSOR:
The 3300 XL Proximitor Sensor features several enhancements over earlier models. Its compact design supports high-density DIN-rail installations and traditional panel mounting, maintaining the same 4-hole mounting footprint as older Proximitor Sensor models. The mounting base for both options provides built-in electrical isolation, removing the need for additional isolator plates.
With superior immunity to radio frequency interference, the 3300 XL Proximitor Sensor can be installed in fiberglass housings without performance degradation from nearby RF signals. Its enhanced RFI/EMI resistance meets European CE mark requirements without the need for shielded conduits or metallic housings, simplifying installation and reducing costs. Additionally, the 3300 XL’s SpringLoc terminal strips streamline wiring by eliminating screw-based clamps, enabling quicker and more secure connections without specialized tools.
PROXIMITY PROBE AND EXTENSION CABLE:
The 3300 XL probe and extension cable incorporate advanced design enhancements. The patented TipLoc molding method ensures a stronger bond between the probe tip and body, while the CableLoc design delivers a pull strength of 330 N (75 lb) for secure attachment of the cable and tip. Additionally, 3300 XL 8 mm probes and extension cables are available with an optional FluidLoc feature, which prevents oil and other liquids from escaping through the cable's interior.
WOC has the largest stock of OEM replacement parts for Bently Nevada Machinery Condition Monitoring systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.
What is the primary application of the 3000 XL 5/8mm Vibration Proximitor Sensor?
The sensor is designed for monitoring vibration and position in industrial machinery, particularly fluid-film-bearing machines.
Does the 3000 XL Proximitor Sensor support both dynamic and static measurements?
Yes, it measures both dynamic parameters like vibration and static parameters such as position.
Is the 3000 XL Proximitor Sensor compatible with older systems?
Yes, it is backward-compatible with non-3000 XL series components, ensuring smooth integration with existing setups.
What makes the 3000 XL Proximitor Sensor suitable for high-density installations?
Its compact design supports DIN-rail mounting and traditional panel installations, providing flexibility in high-density environments.
