Specifications
Part Number: 330180-51-05
Manufacturer: Bently Nevada
Country of Manufacture: United States(USA)
Product Type: Proximitor Sensor
Series: Bently Nevada 3300
Operating Temperature : -51 degrees Celsius to +100 degrees Celsius
Storage Temperature : -51 degrees Celsius to +105 degrees Celsius
Weight : 0.246 kg

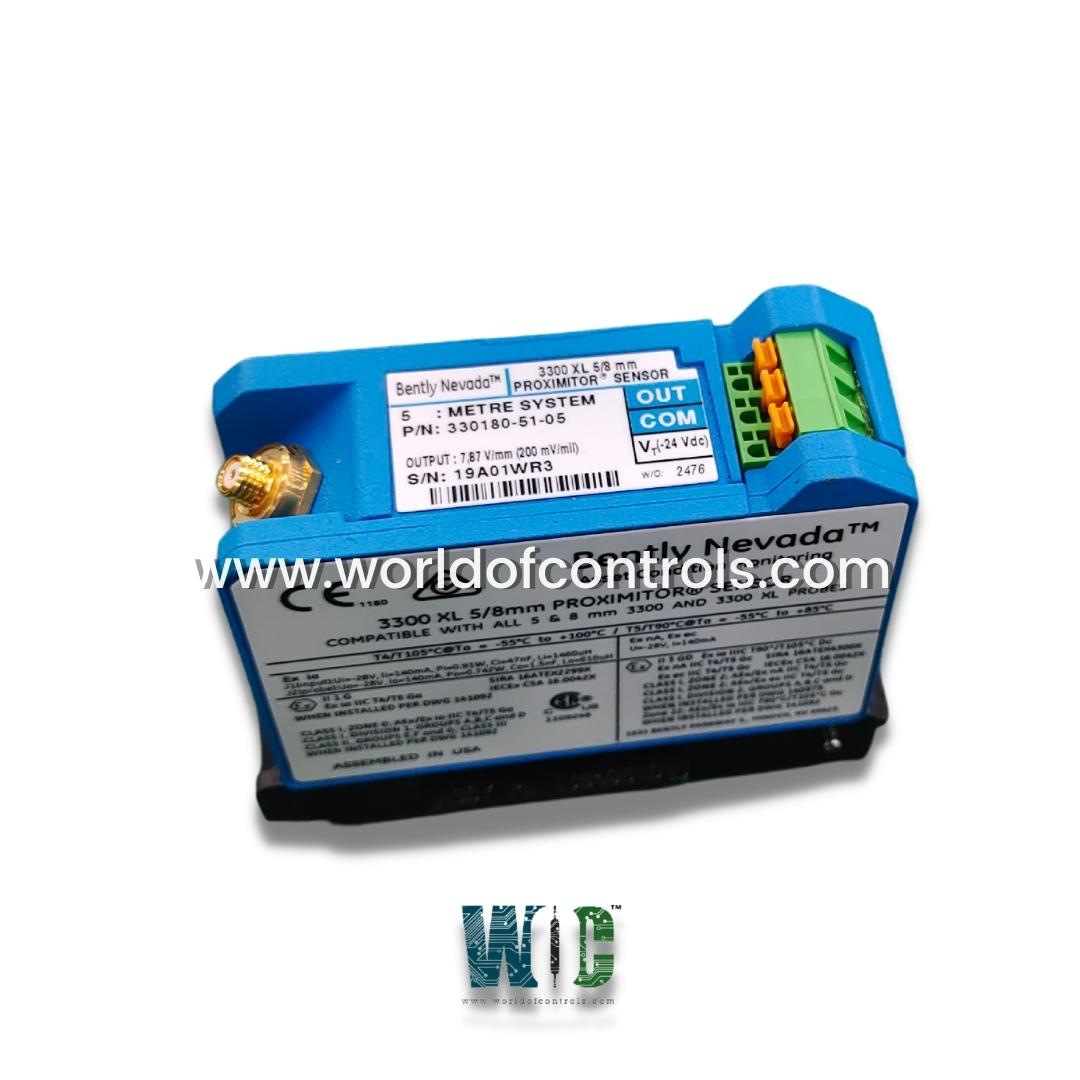

330180-51-05 is a Proximitor Sensor developed by Bently Nevada. It is a part of Bently Nevada 3300 series. The GE / Bently 3300 XL 5/8mm Proximitor Sensor is compatible with all 3300 and 3300 XL probes measuring 5 and 8 mm. The 3300 XL Proximitor Sensor improves on prior designs in a number of ways. Because to its physical packaging, it can be used in high-density DINrail systems. The sensor can also be mounted in a classic panel mount arrangement, where it has the same 4-hole mounting "footprint" as prior Proximitor Sensor designs. Either option's mounting base provides electrical isolation and removes the need for additional isolator plates.
330180-51-05 Functional Description
- The 3300 System is designed to fully meet the requirements of the American Petroleum Institute's API 670 standard for such systems, and it provides continuous, online monitoring suitable for machinery protection applications.
- The system's highly modular design includes an Instrument Rack, an alternating current or direct current power supply, a System Monitor, and one or more monitor modules selected to provide the required monitoring functionality. Because of this modular design, the 3300 System is versatile, expandable, and cost-effective as your monitoring needs evolve.
Features
- The 3300 XL Proximitor Sensor contains significant advancements over earlier types. Its physical packing allows it to be used in high-density DINrail setups. You can alternatively put the sensor in a classic panel mount position, where it has the same 4-hole mounting "footprint" as prior Proximitor Sensor designs. The mounting base for either choice provides electrical isolation and removes the need for separate isolator plates. The 3300 XL Proximitor Sensor is highly resistant to radio frequency interference, allowing you to mount it in fiberglass housings without fear of interference from surrounding radio frequency signals.
- The increased RFI/EMI immunity of the 3300 XL Proximitor Sensor passes European CE mark requirements without requiring specific shielded conduit or metallic housings, resulting in decreased installation costs and complexity.
SpringLoc terminal strips on the 3300 XL require no special installation tools and enable faster, more durable field wiring connections by eliminating screw-type clamping devices that can loosen.
- The Nevada 3300 XL Series of sensor systems from Bently are the best performing and longest lasting sensors available today. Our 3300XL line, which features outstanding performance in a variety of challenging conditions, is the culmination of over 50 years of transducer system engineering, which is why the Bently Nevada name is synonymous with best-in-class proximity sensor systems.
System Applications
The 3300 System is designed for continuous, permanent monitoring of rotating and reciprocating machinery in a wide range of industries, as well as auto-shutdown machinery protection applications. The 3300 System supports the following machine types, among others:
- Power generation and mechanical drive service using industrial gas and steam turbines
- Power generation and mechanical drive service using aero-derivative gas turbines
- Hydraulic (Hydro) turbines used in power generation
- Air/process gas compressors (radial/axial, centrifugal/positive displacement)
- Turbo Expansion
- Generators and electric motors
- Thrill seekers
- Transmissions
- Pumps (centrifugal and positive displacement)
- Fans
- Air blowers
- Compressors that reciprocate
- Pelletizers and extruders
Configuration
- 5-meter total length and mounting option DIN Mount, System Length
- Option for Agency Approval: Multiple Approvals
Features and Advantages
The Bently Nevada 3300 XL Series Proximitor Sensors include the following features:
- Rugged, dependable design
- Superior performance in tough settings
- The best performing and longest-lasting proximity sensors on the market currently
Characteristics
- Output: 7.87 V/mm(200mv/mil)
- Compatibility: Compatible with all 5&8mm 3300&3300 XL probes
Product Attributes
- A 3300 XL Proximitor Sensor is available, which offers numerous advantages over the non-XL version. The non-XL sensor and the XL sensor are electrically and mechanically interchangeable. Although the packaging of the 3300 XL Proximitor Sensor differs from that of its predecessor, its design allows you to use the same 4-hole mounting base and fit it within the same mounting space specifications (when the application observes the minimum permissible cable bend radius).
- 3300 5mm XL Probes will limit system performance to the non-XL 3300 system specifications.
World of Controls is available 24/7 to assist you related to Bently Nevada needs, contact us.
Frequently Asked Questions
What is Bently Nevada 330180-51-05?
It is a Proximitor Sensor developed by Bently Nevada under Bently Nevada 3300 series.
Is the component Compatible with 5 and 8mm 3300, 3300 XL probes?
Yes. The component is Compatible with 5 and 8mm 3300, 3300 XL probes
Is non-XL sensor and XL sensor electrically and mechanically interchangeable?
Yes, there are interchangeable.
What is the electric field strength?
7.87 V per mm is the electric field strength of the component.
How to obtain this Proximitor Sensor?
Contact World of Controls for Bently Nevada spare parts. Contact sales at +1 609 385 1231 or Request a Quote.
