SPECIFICATIONS
Part Number: 30000-00-10-18-02
Manufacturer: Bently Nevada
Product Type: Proximity Probe
Country of Manufacture: USA (United States)
Functional Description

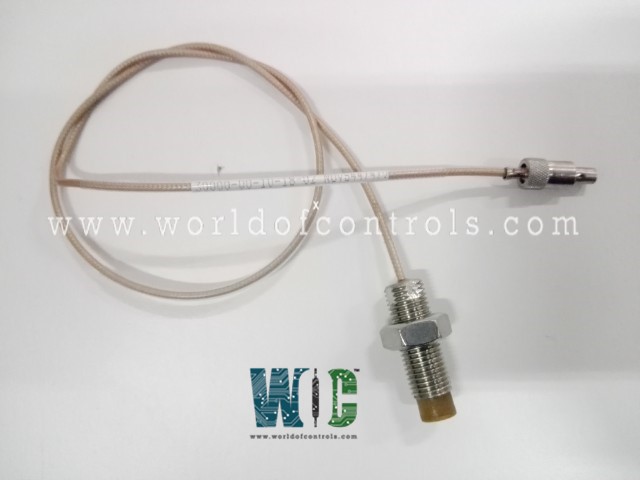

30000-00-10-18-02 is a Proximity Probe manufactured by Bently Nevada. It is a part of Bently Nevada Transducer System. The 3300 XL 25 mm proximity probe is engineered for maximum durability and performance in the demanding conditions of steam turbine drive-end (DE) environments. It operates reliably in high-temperature conditions of up to 200°C (392°F) and can withstand intermittent extreme temperatures reaching 250°C (482°F). This resilience ensures consistent accuracy and long-term reliability in critical industrial applications.
Routing the Extension Cable and Field Wiring
- Proper routing and installation of the extension cable and field wiring are essential to ensure optimal performance of the Proximitor® sensor system. Begin by checking that the combined length of the extension cable and probe lead matches the total system length. For example, a 9-meter Proximitor® sensor requires an 8-meter extension cable and a 1-meter probe. Ensuring the correct length avoids system misalignment or signal issues.
- Secure the extension cable to supporting surfaces using mounting clips or similar devices. This not only prevents accidental damage but also maintains proper cable routing. Additionally, label the probe and both ends of the extension cable clearly. Insert the labels under the clear Teflon sleeves and shrink them with heat for a durable and readable marking system.
- When connecting the coax connectors between the Proximitor® sensor, extension cable, and probe lead, follow the specific tightening instructions. For 3300 XL gold “click” connectors, finger-tightening is sufficient. For non-XL connectors or mixed connectors, tighten them finger-tight, then add a 1/8 turn using pliers for extra security. Properly secured connectors ensure stable and uninterrupted signal transmission.
- To insulate the connection between the probe lead and the extension cable, use a connector protector or self-fusing silicone tape. However, avoid using silicone tape for connections inside a machine. If the probe is situated in a machine section under pressure or vacuum, seal the exit point of the extension cable with appropriate cable seals and terminal boxes. This prevents leaks and protects the connection from environmental factors.
Versatile Probe Case Styles
- Threaded Cases: Includes 1 1/4-12 or 1 1/2-12 English threads and M30x2 or M39x1.5 metric threads.
- Smooth Cases: Side or rear exit probes are offered with a 1.06 inch or 1.50 inch diameter smooth case for non-threaded installations.
- Locknut Feature: Threaded cases are equipped with a locknut featuring pre-drilled safety wire holes, providing additional security and preventing unintentional loosening.
Enhanced Reliability for Critical Applications
- With its robust construction, high-temperature resistance, moisture protection, and versatile installation options, the 3300 XL 25 mm probe is designed to deliver unmatched reliability in industrial settings. Its adaptability to various configurations and rigorous conditions makes it an ideal choice for maintaining precision and safety in steam turbine environments.
World of Controls has the most comprehensive catalog of Bently Nevada Replacement parts. Our professionals are standing by to help you with your needs. If you require any additional information, please contact WOC.
FREQUENTLY ASKED QUESTIONS
What is 30000-00-10-18-02?
It is a 3300 XL Standard Proximity Probe manufactured by Bently Nevada.
How does the probe prevent moisture intrusion?
The probe features front and rear seals, along with a FluidLoc cable that prevents moisture from entering the probe tip, ensuring durability and consistent functionality even in humid environments.
What is the purpose of the ClickLoc connectors?
The ClickLoc connectors provide a secure, high-temperature-resistant connection for the probe and extension cable. They also include a removable collar for easy routing in tight spaces and come with protectors to keep the connectors clean and contamination-free.
