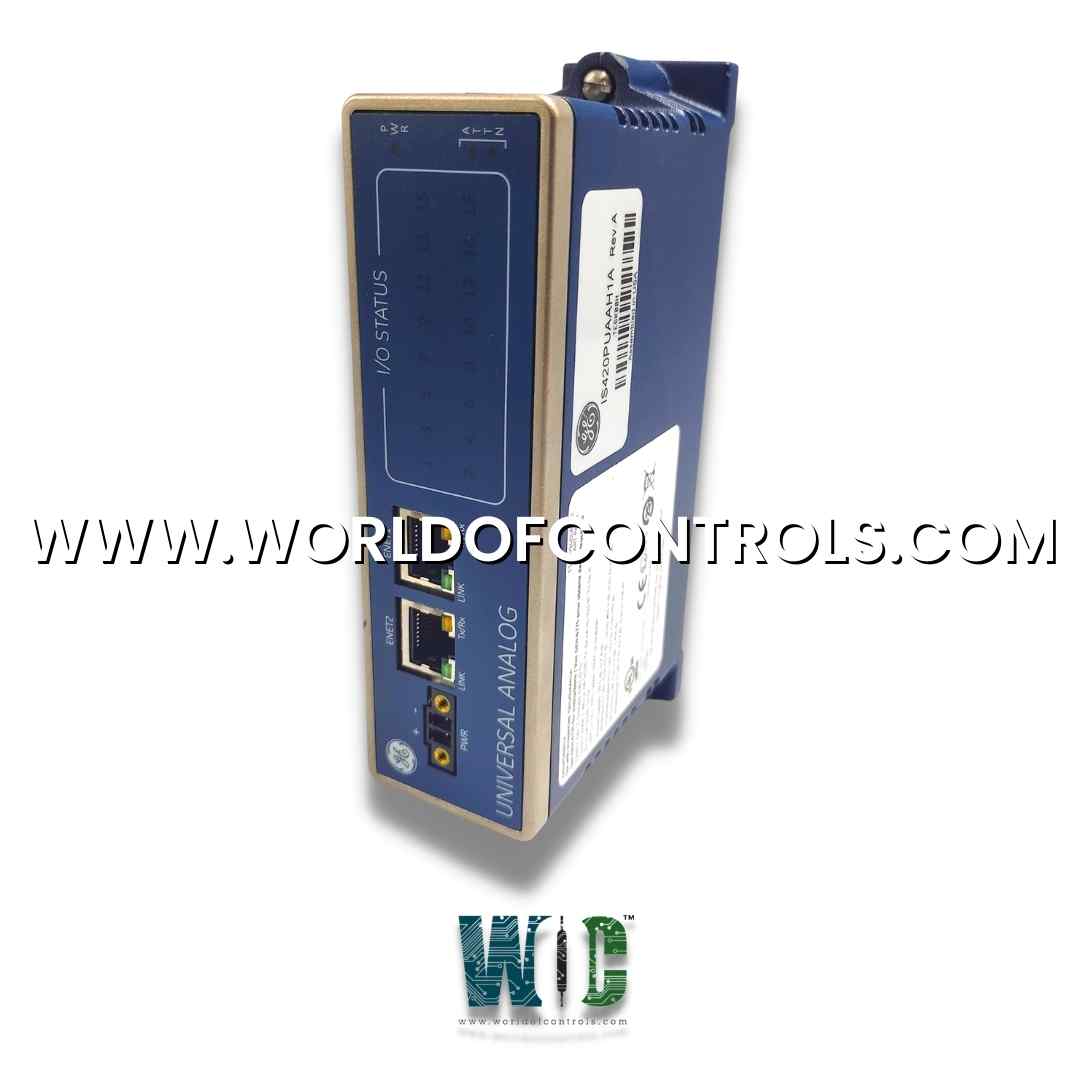

IS420PUAAH1A - Universal I/O Pack

SPECIFICATIONS

Part Number: IS420PUAAH1A
Manufacturer: General Electric
Series: Mark VIe
Country of Manufacture: United States (USA)
Function: Universal I/O Pack

IS420PUAAH1A is an universal I/O pack designed and developed by GE. It is a part of GE Mark VIe control system. The module maintains the same high level of reliability and availability as other Mark VIe control system products. Customer savings include fewer panels/footprint and variations for replacement parts.

Features

• It is compatible with ControlST versions 7.02.00C and later.
• The PUAA enables users to use fewer panels and have a smaller system footprint by providing black sections that can be independently wired, enabling channel-by-channel commissioning. The module has sixteen analog Simplex channels.
• The frame rate is 10ms. Auto-reconfiguration is possible. The unit can be hot-swapped for a replacement. It is intended to operate in temperatures ranging from -40 to 158 degrees Fahrenheit with relative humidity ranging from 5% to 95%. Within the specified temperature range, the normal scan time is 5 ms and the measurement accuracy is better than 0.1%.

Supported I/O Types

• Thermocouple
• RTD
• 4-20 mA current input with HART option
• � 5 V or � 10 V input
• 0-20 mA current output with HART option
• Digital inputs and outputs
• Pulse accumulators

Incoming Power Consumption

The following power consumption modes are based on 8.1 watts quiescent plus power per channel:

• 0.02 W per channel for TC, 5V, 10V, externally wetted discrete inputs, pulse accumulator inputs, or RTD modes
• 0.04 watts per channel for externally fed mA input and internally wetted discrete inputs
• Internally fed mA input or mA output = 0.68 watts or less per channel, depending on external loop resistance

Product Attributes

• Number of Channels: 16 channels, with groups of three terminals per channel
• Supported Redundancy: Simplex
• Shared IONet: Supported
• Required ControlST and PUAA Versions: ControlST V07.00.00C or later, PUAA firmware V05.03.00C or later
• Auto-Reconfiguration: Supported
• RJ-45 Ethernet Port:s Supports dual Ethernet (IONet) networks
• Fastest Frame Rate Supported: 10 ms

WOC has the largest stock of Speedtronic control spares. Please contact our staff by phone or email for pricing and availability on any parts and repairs

FREQUENTLY ASKED QUESTIONS

What is IS420PUAAH1A?
It is an universal I/O pack designed and developed by GE.

What is the specified temperature range for the module?
The module is intended to operate in temperatures ranging from -40 to 158 degrees Fahrenheit with relative humidity ranging from 5% to 95%.

What is the normal scan time within the specified temperature range?
Within the specified temperature range, the normal scan time is 5 ms.

What is the measurement accuracy within the specified temperature range?
Within the specified temperature range, the measurement accuracy is better than 0.1%.
