World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
IS215VCMIH2B - VME Communication Interface Card is available in stock which ships the same day.
IS215VCMIH2B - VME Communication Interface Card comes in UNUSED as well as REBUILT condition.
To avail our best deals for IS215VCMIH2B - VME Communication Interface Card, contact us and we will get back to you within 24 hours.
SPECIFICATIONS
Part No.: IS215VCMIH2B
Manufacturer: General Electric
Country of Manufacture: United States
Product Type: VME Bus Master Controller
Series: Mark VI
Availability: In Stock

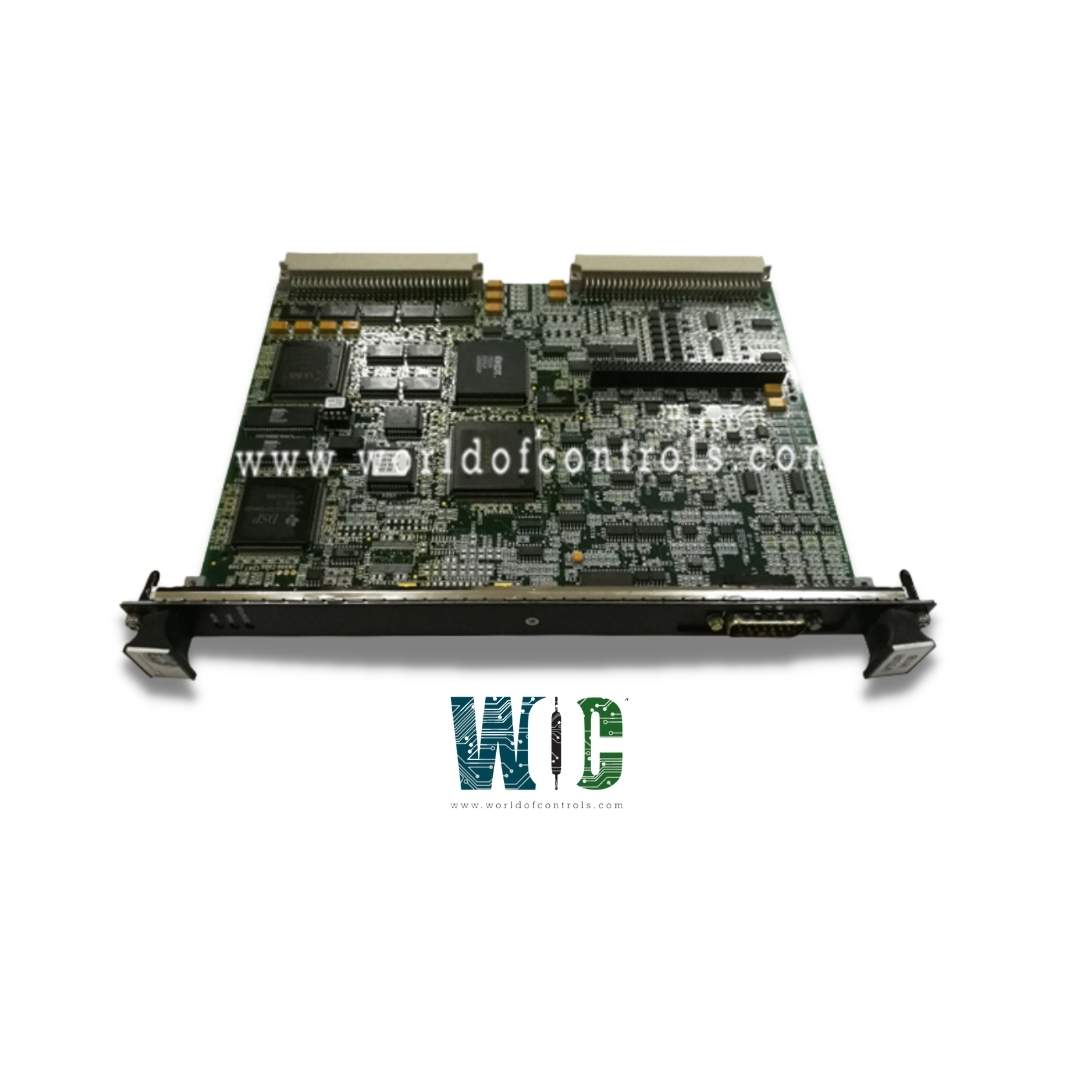

IS215VCMIH2B is a VME Communication Interface Card manufactured by General Electric as part of the Mark VI Series used in gas turbine control systems. The VME Bus Master Controller (VCMI) board serves as the communication interface between the controller and the I/O boards as well as the communication interface to the IONet system control network. The VCMI also serves as the VME bus master in the control and I/O racks, managing the IDs for all of the boards in the rack and their related terminal boards. Through the J301 backplane connector, the VCMI card receives analog and digital feedback on power status.
The VCMI board is available in two versions: VCMIH1 and VCMIH2. The board has four-port connections on the front faceplate. Three IONet connectors and one serial port are included. Three LED indicators are located above each IONet connector. "TX," "RX," and "CD" are the labels on them. The board also contains four LEDs labeled 1,2,4, and 8 as well as LED indications labeled Run/Fail/Status (positioned above a push-button reset switch). The faceplate is connected to the main board using screws.
FEATURES OF IS215VCMIH2B
BOARD TYPE: 6U high VME board with 0.787-inch width
PROCESSOR: TMS320C32 is a 32-bit digital signal processor by Texas Instruments.
MEMORY
H1 version - 10 Mbits/sec, one IONet 10Base2 Ethernet port, BNC connector
H2 version - Three IONet 10Base2 Ethernet ports, BNC connections, 10 Mbits/sec
Fig 1: VCMI Boards Single and Triple Network Versions
TRANSFERS OF VME BUS BLOCKS: 1 RS-232C serial port with a D-style plug connector and a 9600 baud rate (only)
FRAME RATE (FR): TMR 20 ms, 80 ms application dependent 10 ms (100 Hz) for simplex 40 ms (25 Hz) for TMR 20 ms, 80 ms
DIAGNOSTICS: Internal power supply buses of +5 V, 12 V, 15 V, and 28 V are monitored and alarmed. Except for the 28 V supplies, which are set at 5.5 percent, the alarm settings are customizable and commonly set at 3.5 percent.
Three simplex system setups using the VCMI with local and distant I/O are shown in the accompanying figure. Each I/O rack has its own VCMI board, and many I/O racks can be connected to IONet. As seen in the lower half of the accompanying picture, a second IONet port on the VCMI can be used as a parallel IONet to boost data throughput for applications that demand low latency.
Fig 2: Simplex System Configurations with Local and Remote I/O
Two sizes of TMR systems are depicted in the accompanying figure. In the first illustration, a tiny system, all of the I/O is put in the VME control rack, eliminating the need for any remote I/O racks. The VCMI features three IONet ports, with one for each of the three channels (R, S, and T). The larger system with distant I/O racks in the second scenario. Although many I/O racks are supported by one IONet, only one rack is displayed here. Regarding I/O boards and points, all I/O channels (R, S, and T) are the same.
Fig 3: TMR Systems Configurations with Local and Remote I/O
There are three standard heights for VMEbus cards: 3U, 6U, and 9U. Transition modules may be put on the back side of the backplane in 6U and 9U systems. Transition modules only communicate with the VMEbus module on the side of the backplane opposite of them using the user-defined pins of the J0, J2, and J3 connectors, not with VMEbus.
World of Controls has the most comprehensive catalog of GE Speedtronic Mark VI control components. Our professionals are standing by to help you with your Mark II needs. If you require any additional information, please contact WOC immediately.
FREQUENTLY ASKED QUESTIONS
What is Mark VI IS215VCMIH2B?
The IS215VCMIH2B is a VME Bus Master Controller developed by General Electric for the Mark VI system.
What is the function of VCMI?
VCMI serves as the communication interface between the controller and the I/O boards as well as the communication interface to the IONet system control network.
How does the board receive analog and digital power status feedback?
VCMI card receives analog and digital feedback on power status through the J301 backplane connector.
