IC3606SPCC1H - 6 Pulse Width Modulation Controller Board

SPECIFICATIONS:

Part No: IC3606SPCC1H
Manufacturer: General Electric
Product Type: 6 Pulse Width Modulation Controller Board
Series: Mark I & II
Input Voltage: 5V to 24V
Output Current: 0.15 A AMP
Frequency Range: 1Hz to 100kHz
Output Channels: 6
PWM Resolution: 8-bit
Operating Temperature: -40°C to +85°C
Output Current/Channel: 2A to 5A
Operating Temperature: 0°C to 40°C
Resolution: 10mV/10mA
Availability: In Stock
Weight: 2.5 kg
Dimensions: 6.00 x 6.00 x 5.00
Country of Origin: USA

FUNCTIONAL DESCRIPTION:

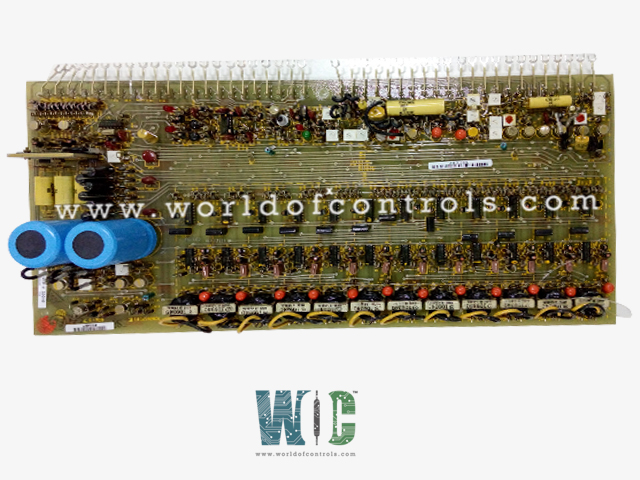

IC3606SPCC1H is a 6 Pulse Width Modulation Controller Board manufactured and designed by General Electric and is part of the Mark II Series used in Static Starter Control systems. A Pulse Width Modulation (PWM) controller board is essential in various electronic applications, including motor control, power supply regulation, and signal processing. A 6-channel PWM controller board can manage multiple devices or processes simultaneously, making it ideal for complex control systems such as those found in gas turbines.

FEATURES:

• Microcontroller: Core Processor: The heart of the PWM controller, responsible for generating PWM signals based on input parameters and control algorithms. Allows for firmware updates and custom configurations.
• PWM Channels: Capable of generating six separate PWM signals, each with adjustable duty cycles and frequencies. Channels can be synchronized or operated independently, depending on the application.
• Control Inputs: Accepts control signals from various sources, such as sensors, potentiometers, or digital controllers. Includes interfaces like I2C, SPI, UART, or CAN for integration with other control systems.
• Power Supply: Ensures stable operation by regulating input voltage to the required levels for the microcontroller and output stages. Includes overvoltage, undervoltage, overcurrent, and thermal protection to safeguard the board and connected devices.
• Output Drivers: High-power drivers to handle the output load, such as motors or actuators. Galvanic isolation between control circuitry and power stages to protect sensitive components.

WOC has the largest stock of replacement parts for GE Speedtronic Gas turbine control systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is a 6 Pulse Width Modulation (PWM) controller board?

A 6 PWM controller board is an electronic component that generates and manages six independent PWM signals. It is used in motor control, power supply regulation, and signal processing to control the power delivered to devices or processes.

What is the maximum current and voltage rating for the PWM outputs?

The maximum current and voltage ratings depend on the specific design of the board. Check the technical datasheet for details on the maximum ratings for output channels to ensure compatibility with your application.

What is the role of feedback in PWM control systems?

Feedback provides real-time data about the system’s performance, allowing the controller to adjust PWM signals dynamically to achieve desired outcomes. It helps maintain accuracy and stability in the control process.
