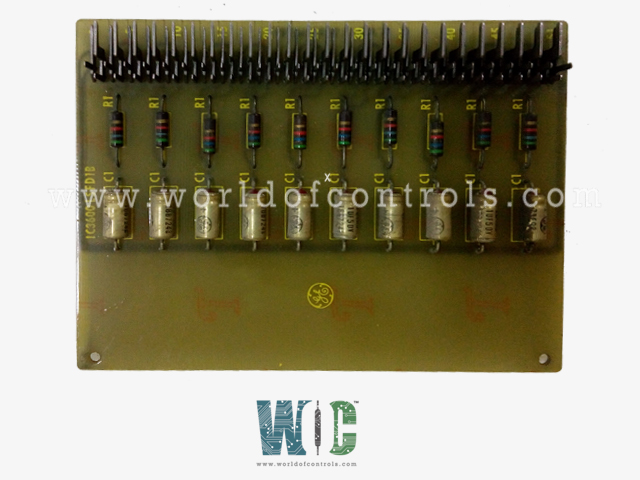

IC3600LSFD1 - Input Filter Control Card

SPECIFICATIONS

Part No: IC3600LSFD1
Manufacturer: General Electric
Function: Input Filter Control Card
Series: Mark I and II
Repair: 3-7 Day
Availability: In Stock
Country of Manufacturer: United States (USA)

Functional Description

IC3600LSFD1 is an Input Filter Control Card developed by GE. It is a part of the Mark I and II control system. An Input Filter Card is a component used in industrial control systems to filter noise and unwanted signals from input power or data lines. It helps ensure stable operation by removing electrical interference, harmonics, and transient voltage spikes.

Features

• Filter incoming signals to remove electrical noise and interference.
• Improve signal accuracy and reliability in turbine control systems.
• Condition analog and digital inputs before they are processed by the control system.
• This ensures that only accurate and stable signals reach the Mark I and II control processors, enhancing the efficiency and performance of the overall system.
• Designed for plug-in installation into a Mark I or Mark II control system rack, making it easy to replace or upgrade without extensive system downtime. The card is fully compatible with other control modules in the Mark I and II series and integrates seamlessly with the turbine control framework.

Product Attributes

• Noise Suppression - Reduces electromagnetic interference (EMI) and radio frequency interference (RFI) from the power supply or signal lines.
• Voltage Regulation - Stabilizes input voltage by filtering fluctuations and transients.
• Signal Conditioning - Improves signal integrity by eliminating distortions and harmonics.
• Protection - Shields sensitive electronic components from sudden voltage spikes or electrical disturbances.

WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is IC3600LSFD1?
It is an Input Filter Control Card developed by GE.

Why is an Input Filter Card necessary?
It helps reduce electromagnetic interference (EMI), radio frequency interference (RFI), and transient voltage spikes, ensuring stable and reliable operation of electronic systems.

How does an Input Filter Card work?
It uses passive (resistors, capacitors, inductors) or active (op-amps) filtering techniques to remove unwanted electrical noise and regulate voltage fluctuations.
