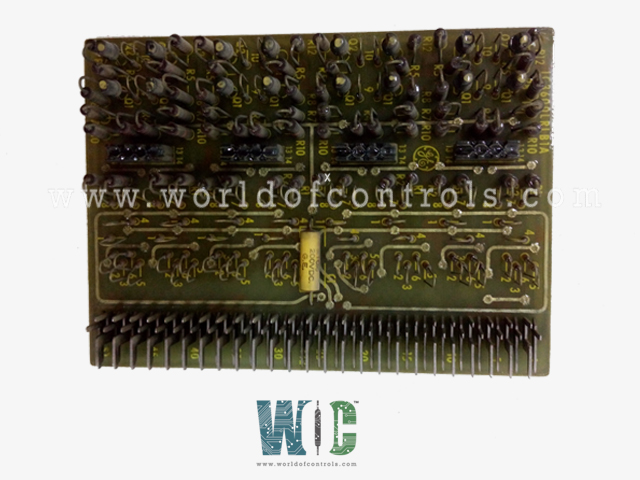

IC3600LRLB1 - Logic Binary Card

SPECIFICATIONS:

Part No: IC3600LRLB1
Manufacturer: General Electric
Product Type: Logic Binary Card
Series: Mark II
Operating temperature: -40 to 70 ºC
Input DC voltage: +24V
Power Consumption: 10-30W
Input Signals: 0-24V
Power Supply Voltage: 24 V dc
Board Size: 2.8 cm high x 8.6 cm
Weight: 0.45 kg
Availability: In Stock
Country of Origin: USA

FUNCTIONAL DESCRIPTION:

IC3600LRLB1 is a Logic Binary Card manufactured and designed by General Electric as part of the Mark II Series used in GE Speedtronic Control Systems. These cards convert analog signals from various sensors, such as temperature and pressure, into binary digital signals, enabling the control system to interpret and respond to the turbine's conditions. They implement control logic necessary for functions like startup, shutdown, and operational adjustments, ensuring safe and efficient turbine operation. By interfacing with actuators, valves, and other control modules, Logic Binary Cards execute commands based on the programmed logic, enhancing system responsiveness.

FUNCTIONS:

• Signal Processing: Logic Binary Cards convert analog signals from various sensors—such as temperature, pressure, and flow—into digital binary signals (0s and 1s). This conversion allows the control system to effectively monitor and interpret real-time data about the turbine's operational state. By facilitating this transition from analog to digital, the cards enable precise measurement and analysis, which are essential for maintaining optimal turbine performance.

• Control Logic Implementation: These cards execute complex control logic that governs the operational phases of the gas turbine. This includes managing the startup sequence, maintaining stable operation during load changes, and safely shutting down the turbine when necessary. By following predefined algorithms, Logic Binary Cards can adapt the turbine’s performance based on varying conditions, ensuring that it operates within safe and efficient parameters.

• Interfacing with System Components: Logic Binary Cards serve as an interface between the control system and various turbine components, including actuators, valves, and fuel management systems. They send commands to these devices based on the processed signals, allowing for precise adjustments in fuel flow, airflow, and cooling systems. This interfacing capability ensures that the turbine responds promptly and accurately to control inputs, contributing to overall operational efficiency.

• Safety Monitoring: Safety is paramount in gas turbine operations, and Logic Binary Cards play a crucial role in implementing safety protocols. They continuously monitor critical parameters such as exhaust temperature and pressure levels, comparing them against predefined thresholds. If any parameter exceeds its safe limit, the cards can trigger protective measures, including activating alarms or executing an emergency shutdown to prevent potential damage or hazards.

• Diagnostic and Monitoring Functions: These cards are equipped with diagnostic capabilities that enable them to monitor the turbine's health and performance continuously. They log operational data, which can be analyzed to identify trends, detect anomalies, and pinpoint faults in the system. This diagnostic functionality not only facilitates proactive maintenance but also enhances the reliability of the gas turbine by ensuring timely interventions.

• Redundancy and Reliability: To enhance system reliability, Logic Binary Cards are often designed with redundancy features. This means that multiple cards can be employed in parallel so that if one card fails, others can take over its functions without interrupting the turbine’s operation. This redundancy is critical in maintaining continuous and safe operation, particularly in high-stakes applications like power generation and aviation.

• Programmability: Logic Binary Cards are typically programmable, allowing operators to customize control strategies based on specific operational needs. This programmability enables the implementation of new algorithms or adjustments to existing logic in response to changes in operational requirements or improvements in technology. As a result, the cards can be adapted over time, ensuring that the gas turbine system remains efficient and up-to-date with industry standards.

WOC has the largest stock of OEM replacement parts for GE Speedtronic Gas Turbine Control Systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

How does a Logic Binary Card improve gas turbine performance?

By processing real-time data from sensors and implementing control logic, Logic Binary Cards enable precise adjustments to turbine operations, optimizing efficiency and performance. They help maintain operational stability and adapt to changing conditions, ensuring the turbine operates within safe parameters.

What safety features are integrated into Logic Binary Cards?

Logic Binary Cards include safety monitoring functions that continuously check critical operational parameters, such as temperature and pressure. If any parameter exceeds predetermined thresholds, the card can trigger alarms or initiate emergency shutdowns to prevent unsafe conditions.

How do Logic Binary Cards interface with other components in a gas turbine system?

Logic Binary Cards interface with actuators, valves, and fuel management systems by sending and receiving control signals. This allows for coordinated adjustments in fuel flow, airflow, and other operational factors, enabling seamless communication between different components of the turbine.
