IC3600LRDD1 - GE Fanuc Relay Driver Board IC 3600

IC3600LRDD1 - GE Fanuc Relay Driver Board IC 3600 IC3600LRDD1 - GE Fanuc Relay Driver Board IC 3600

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IC3600LRDD1 - GE Fanuc Relay Driver Board IC 3600 is available in stock which ships the same day.

IC3600LRDD1 - GE Fanuc Relay Driver Board IC 3600 comes in UNUSED as well as REBUILT condition.

To avail our best deals for IC3600LRDD1 - GE Fanuc Relay Driver Board IC 3600, contact us and we will get back to you within 24 hours.

Request For Quote
Contact Us

Featured Product

SPECIFICATIONS

Part Number: IC3600LRDD1
Manufacturer: GE Fanuc
Series: Mark I & II
Function: Relay Driver Board

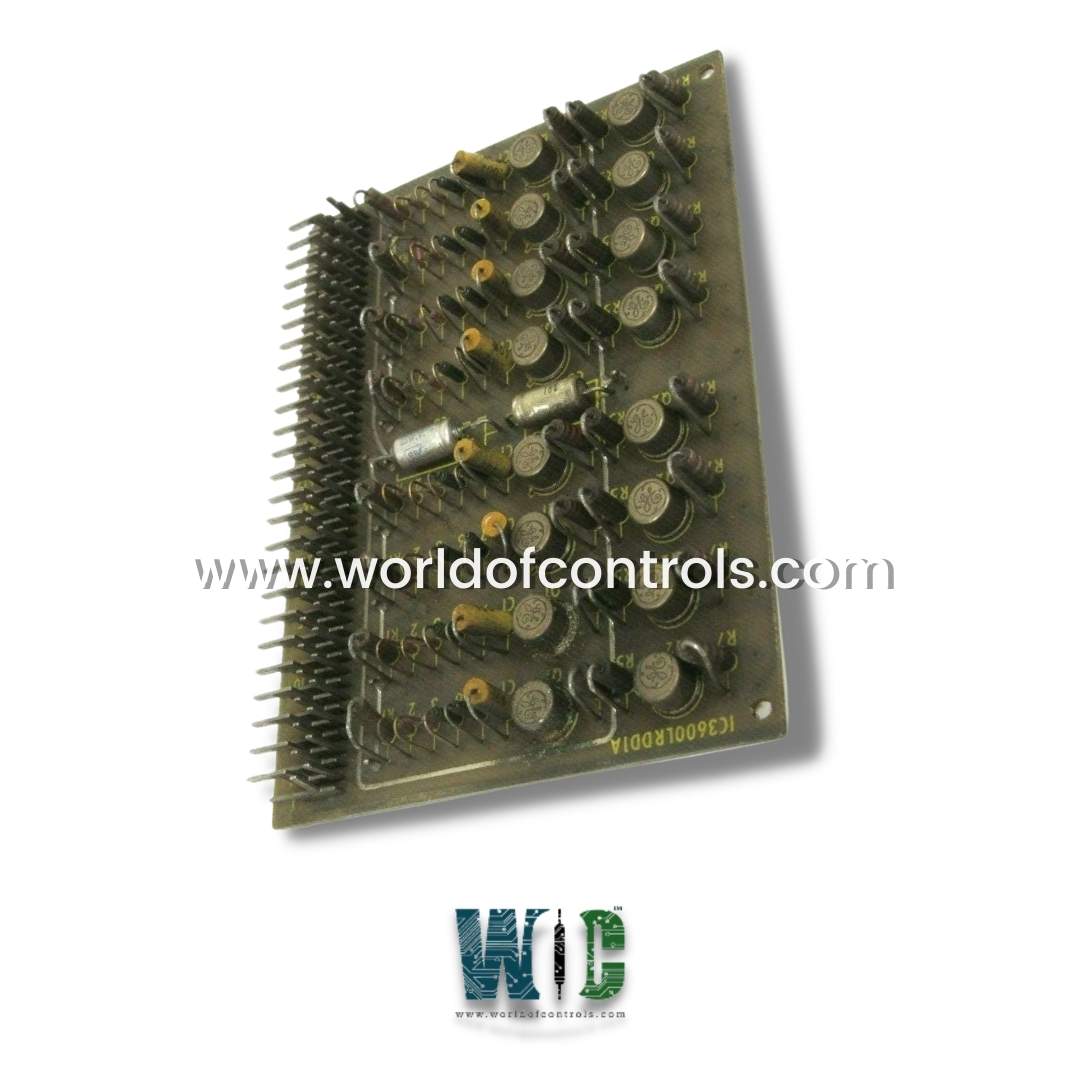

IC3600LRDD1 is a Relay Driver Board manufactured by GE Fanuc in the series of Mark I & II used in gas turbine control systems. These two Mark I & II series was the first of GE Speedtronic steam and gas turbine management systems to be released. Both systems were created by GE to be adaptable and scalable, and they've been used all over the world for decades to power everything from single-unit remote field stations to marine drives, compressor drives in chemical and industrial processes, and full power plant configurations with 400 Mw combined cycle ratings. There are 16 transistors in the IC3600LRDD1 Relay driver board.

  • Two parallel lines, each with eight transistors, link these components to the circuit board. Each transistor line is identified as a distinct component, with one designated Q1 and Q2. A similar indicator can be found on the board's line of eight polyester vinyl capacitors, all labeled "C1."
  • Two (2)aluminum electrolytic capacitors designated C1 and C2 are also found on the board. There are multiple lines of carbon composite resistors on the board, each with eight resistors. Each line is identified as a separate component. Only R1, R3, R5, and R7 are visible on the board.

WOC has the largest stock of GE Mark I & II spare parts and we can repair your faulty spares with a warranty. WORLD OF CONTROLS can also supply UNUSED and REBUILT components backed up with a warranty. Our team of experts is available round the clock to support your urgent needs related to critical spares, contact us.


FREQUENTLY ASKED QUESTIONS

What is GE Fanuc IC3600LRDD1?

The IC3600LRDD1 is a Relay Driver Board designed by GE Fanuc used in the Mark I & II series.

How to Check Price and Availability For IC3600LRDD1?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

How long does it take WOC to repair my boards?

Your boards will be repaired by WOC in 3 to 5 business days. WOC also offers up to 24 months customer satisfaction warranty on all repairs.
