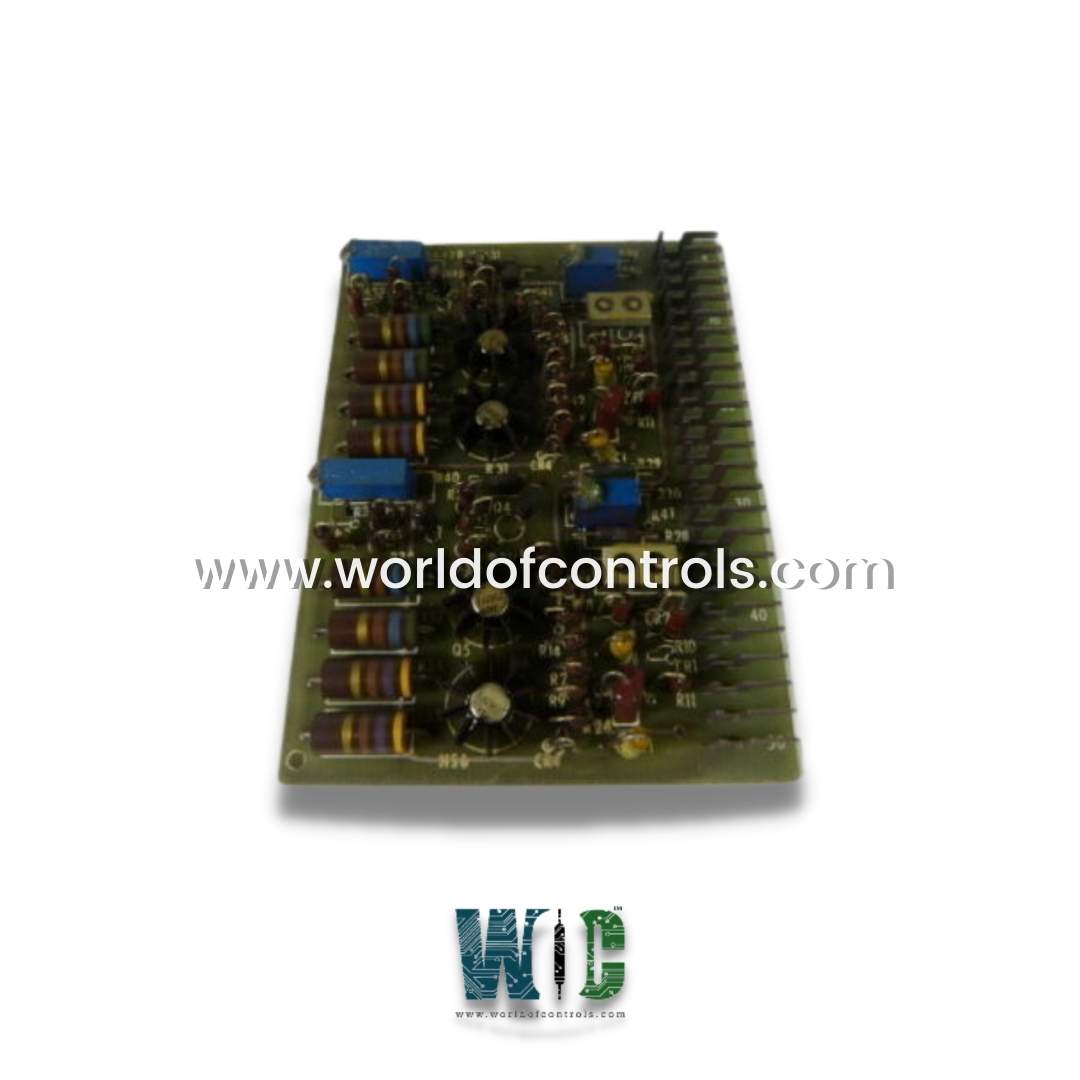

IC3600AOAA2 - Dual Operational Amplifier Circuit Board

SPECIFICATIONS:

Part No: IC3600AOAA2
Manufacturer: General Electric
Series: Mark II
Coil Voltage: 251-300 V
Product Type: Dual Operational Amplifier Circuit Board
Operating temperature: -30 to 55 ºC
Power Supply Voltage: 24 V dc
Board Size: 2.8 cm high x 8.6 cm
Weight: 0.45 kgs
Condition: New
Availability: In Stock
Country of Origin: USA

FUNCTIONAL DESCRIPTION:

IC3600AOAA2 is a Dual Operational Amplifier Circuit Board manufactured and designed by General Electric as part of the Mark II Series used in GE Speedtronic Control Systems. A dual operational amplifier board, often referred to as a "dual op-amp board," is an electronic circuit board designed to accommodate two operational amplifiers (op-amps) for various analog signal processing applications. Op-amps are versatile integrated circuits used in electronics to amplify, filter, or process analog signals. Here are some key points about a dual-operational amplifier board:

• Dual Op-Amp Configuration: This type of circuit board is specifically designed to host two individual operational amplifiers. These op-amps are typically placed side by side or nearby on the board, allowing for efficient circuit design.

• Signal Processing: Dual op-amp boards are commonly employed in signal processing tasks such as audio amplification, filtering, waveform shaping, and instrumentation amplification. They offer flexibility in designing circuits that require multiple amplification stages or signal conditioning functions.

• Component Layout: The layout of components on the PCB is critical to ensure proper functionality and performance. Each op-amp has its own set of input and output pins, and the board's design should facilitate easy connections for external components like resistors, capacitors, and feedback networks.

• Power Supply: Operational amplifiers require a stable power supply voltage to function correctly. The PCB should include connections for the power supply pins (typically labeled as V+ and V-) and may include decoupling capacitors to filter out noise from the power source.

• Ground Plane: The presence of a ground plane on the PCB can help reduce noise and interference by providing a low-impedance path for common ground connections.

• Signal Traces: Careful routing of signal traces is essential to minimize interference, crosstalk, and impedance mismatches. Proper signal routing helps maintain signal integrity and ensures that signals reach their destinations accurately.

PRODUCT ATTRIBUTES:

• It is an Operational Amplifier Board engineered and developed by GE. This particular board is designed as a dual-operational amplifier board, meaning it houses two operational amplifiers within its construction. Operational amplifiers, commonly known as op-amps, are fundamental components in electronic circuits used for amplification, signal conditioning, and various other applications.

• The primary function is to provide operational amplification capabilities, leveraging two distinct amplifiers on a single board. Operational amplifiers are versatile and widely used in diverse electronic systems, ranging from audio equipment and instrumentation to control systems and signal processing.

• The dual-operational amplifier configuration within this board expands its utility, allowing it to cater to applications requiring multiple amplification channels or functions within a single board. This feature enhances versatility and efficiency in various electronic setups where space, component count, or specific performance criteria are crucial considerations.

WOC has the largest stock of OEM Replacement Parts for GE Speedtronic Gas Turbine Control Systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is the maximum supply voltage for a Dual Op-Amp circuit board?

The maximum supply voltage depends on the specific op-amp used on the board. For common dual op-amps like the LM358, the maximum supply voltage is 32V (single supply) or ±16V (dual supply). High-performance op-amps may have different voltage ratings, so it is essential to check the datasheet for exact specifications to avoid exceeding the maximum voltage limits.

What is the typical gain bandwidth product of a Dual Op-Amp?

The gain bandwidth product (GBP) varies depending on the op-amp model. For example, the LM358 has a GBP of around 1 MHz, while high-speed op-amps like the TL072 have a GBP of approximately 3 MHz. Precision op-amps such as the OPA2134 may have an even higher bandwidth. The GBP determines the frequency range over which the op-amp can provide stable gain.

What is the typical output impedance of a Dual Op-Amp?

Most general-purpose dual op-amps have a low output impedance, typically in the range of a few ohms to tens of ohms. This low output impedance ensures better signal drive capability and minimizes signal loss when driving loads.
