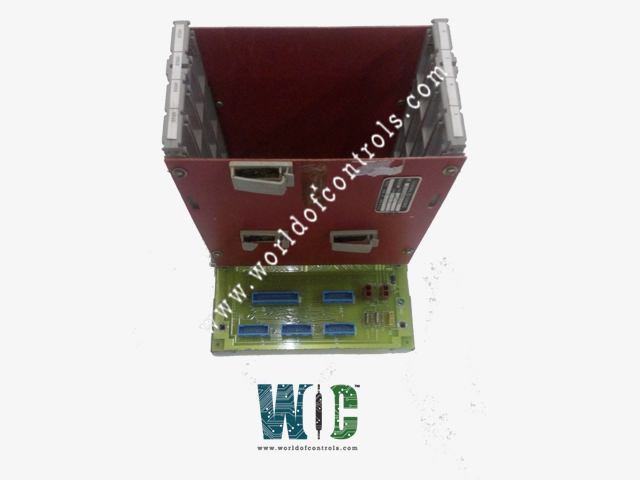

DS3820RDMA1 - Circuit Board

SPECIFICATIONS

Part No.: DS3820RDMA1
Manufacturer: General Electric
Series: Mark IV
Product type: Circuit Board
Repair: 3-5 Days
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

DS3820RDMA1 is a Circuit Board developed by GE. It is a part of the Mark IV control system. Features a redundant control architecture to enhance system reliability and availability. Includes multiple controllers that can take over in case of a failure, minimizing downtime.

Display Keypad Switches

• The Display Keypad switches are essential tools used by an operator to interact with the system. These switches allow the operator to select Data List displays or parameters that appear on the CRT (Cathode Ray Tube) screen. Located directly below the CRT, these switches include a comprehensive set of alpha-numeric characters and various auxiliary switches to facilitate different functions. Here's an expanded explanation of each switch:
• Alpha-Numeric Characters: These include all letters (A-Z) and numbers (0-9), allowing for the entry of data and commands.
• Auxiliary Switches:
  • Space: This switch creates a blank character space in the input field, allowing for proper formatting and separation of data.
  • Delete: This switch deletes a single character that is currently highlighted or located to the immediate left of the cursor, aiding in quick corrections.
  • Clear: This switch deletes an entire character string or entry, making it easy to reset the input field or correct major errors quickly.
  • Shift: This switch is used to access alternate characters printed at the top of the Display Keypad switch. When pressed in conjunction with another switch, it allows the operator to input characters not available on the primary layout.
  • Enter: This switch loads the typed characters into the computer to initiate a command. It finalizes the input and signals the system to process the entered data or command.

World of Controls has the most comprehensive collection of GE Mark IV components. Please contact WOC as soon as possible if you require any extra information.

Frequently Asked Questions

What is DS3820RDMA1?
It is a Circuit Board developed by GE

What are Display Keypad switches?
The Display Keypad switches are essential tools used by an operator to interact with the system, allowing the selection of Data List displays or parameters that appear on the CRT (Cathode Ray Tube) screen. Located directly below the CRT, these switches include a comprehensive set of alpha-numeric characters and various auxiliary switches to facilitate different functions.

What characters can I enter using the Display Keypad switches?
You can enter all letters (A-Z) and numbers (0-9) using the alpha-numeric characters available on the Display Keypad switches. These characters allow for the entry of data and commands.
