DS3820MAUD - Media Access Module

SPECIFICATIONS

Part Number: DS3820MAUD
Manufacturer: General Electric
Series: Mark IV
Function: Media Access Module
Operating temperature: -35 to +55oC
Product Type: PCB
Country of Manufacture: United States (USA)

Functional Description

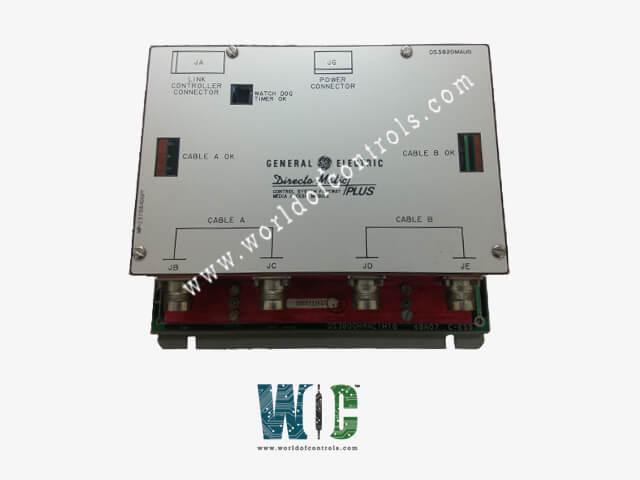

DS3820MAUD is a Media Access Module manufactured and designed by General Electrics. It is a part of the Mark IV Control System. A Media Access Module is an component in control system, facilitating communication between devices and system controllers. It features an interface panel with multiple labeled ports, such as Cable A, Cable B, and power connections, ensuring seamless connectivity. The module also integrates diagnostic tools, including LEDs and test points, to monitor system performance and enable quick troubleshooting. Its robust design supports secure mounting and compatibility with various communication cables.

Features and Components

• Interface Panel: The module features a well-structured interface panel that connects directly to the PCB (Printed Circuit Board). The panel includes three cutouts, each serving a specific monitoring purpose Cable A OK, Cable B OK, Watch Dog Timer OK.
• Labeling and Connectivity: Clear labels and directional lines connect these indicators to corresponding ports on the panel’s edges.

  • Cable A: Marked with endpoints JB and JC.
  • Cable B: Marked with endpoints JD and JE.
• Two labeled boxes appear at the top of the panel: JA/Link Controller Connector, JG/Power Connector.
• Connection Ports: Four ports on the panel's side provide cable connections for JB, JC, JD, and JE. Below these ports are six screw connections, which secure the interface panel firmly to the PCB.
• Back Panel Design: The backside of the interface panel is connected using two pins, which slide over two vertical nylon spacers mounted on the board, ensuring stability and easy assembly.
• Indicators and Test Points: The PCB is equipped with six red LEDs, perfectly aligned with the cutouts on the interface panel for real-time status monitoring. These LEDs provide visual feedback for cable and timer statuses.
• Connectors and Headers: Includes one PCB mating connector (218A4837-P12). A six-pin header facilitates secure and flexible connections. Six TP test points are provided for troubleshooting and diagnostics.

WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is DS3820MAUD?
It is a Media Access Module manufactured and designed by General Electrics.

What is the role of the LEDs on the Module?
The six red LEDs provide real-time operational feedback, such as connectivity status (Cable A, Cable B) and system health indicators (e.g., Watchdog Timer). These LEDs align with the cutouts on the interface panel for easy monitoring.

How is the module mounted?
The module is mounted to the PCB using six screws and secured by nylon spacers. The pins on the interface panel slide over vertical nylon spacers to connect with the board.

What diagnostic tools does the Module include?
The module includes six TP test points and status LEDs to assist with diagnostics. These tools enable efficient troubleshooting and ensure the system operates reliably.
