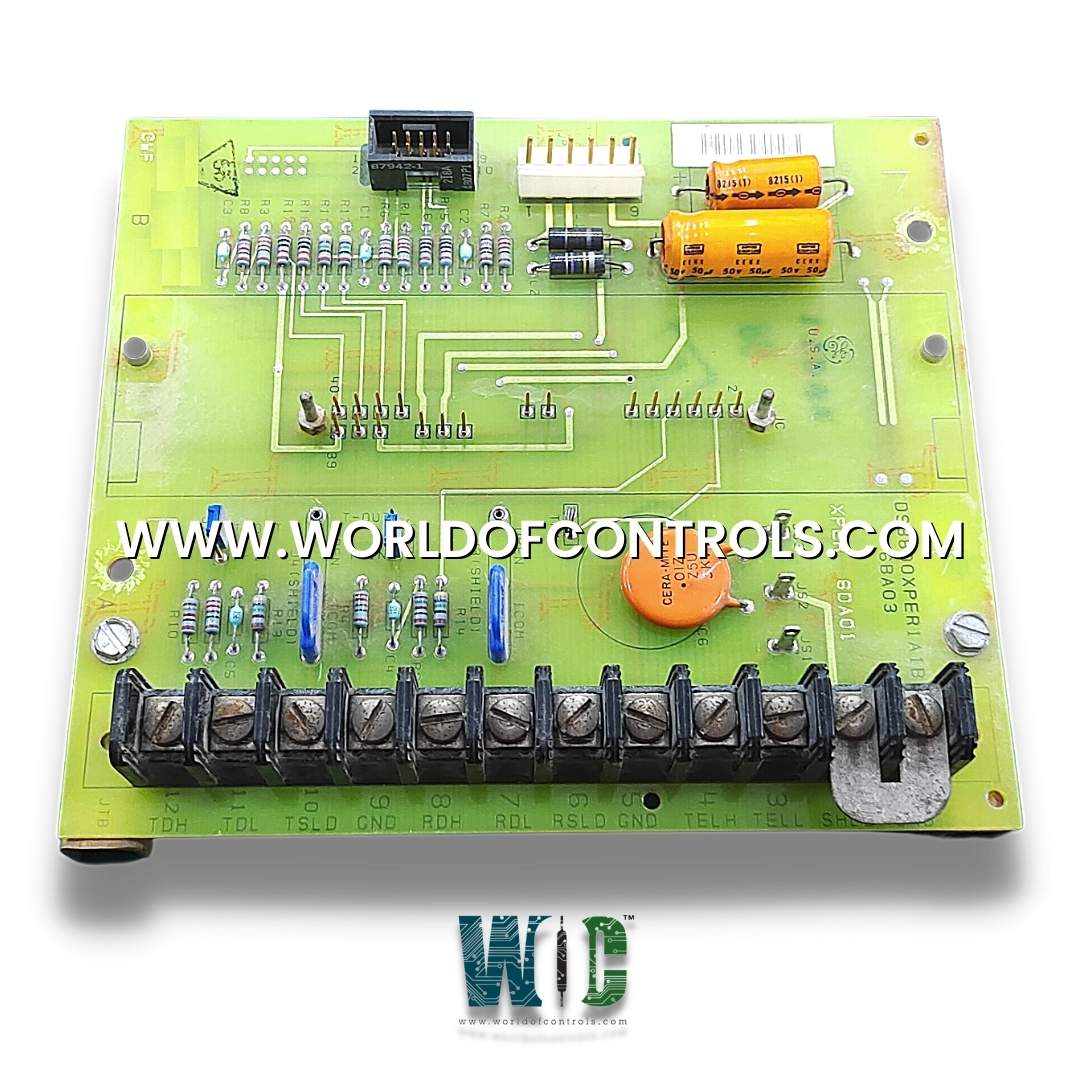

DS3800XPER - Data Link Isolation Board

SPECIFICATIONS:

Part Number: DS3800XPER
Manufacturer: General Electric
Series: Mark IV
Product Type: Data Link Isolation Board
Power Requirements: +5 V dc
Power supply voltage: 28 V dc
Operating temperature: -40 to +65°C
Size: 15.7 cm high x 17.5 cm
Weight: 0.8kg
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States

FUNCTIONAL DESCRIPTION:

DS3800XPER is a Data Link Isolation Board manufactured and designed by General Electric as part of the Mark IV Series used in GE Speedtronic Gas Turbine Control Systems. In a turbine control system, a Data Link Isolation Board is a device used to isolate the communication link between the control system and the turbine's digital governor. This board provides protection to the control system by preventing any electrical noise or interference from entering the control system via the communication link. The Data Link Isolation Board is typically placed between the digital governor and the control system's input/output (I/O) module, and it uses optoisolators to electrically isolate the two systems. Opto-isolators use light to transmit signals between the two systems, which provides a high degree of isolation and protection against electrical noise.

The use of a Data Link Isolation Board in a turbine control system helps to improve system reliability and performance by reducing the risk of electrical interference, which can cause errors and system failures. Here are some of the features of a typical Data Link Isolation Board used in turbine control systems:

Opto-Isolation: The board uses optoisolators to provide electrical isolation between the digital governor and the control system's input/output module.

Low Noise Design: The board is designed to have low noise, which helps to prevent electrical noise from interfering with the communication link.

High-speed Communication: The board supports high-speed communication between the digital governor and the control system, typically using a serial communication protocol.

Compact Size: The board is usually compact in size, which makes it easy to install in a control system cabinet.

Easy to Install: The board is designed to be easy to install and configure in a turbine control system.

LED Indicators: The board may include LED indicators to provide status information, such as power and communication status.

Surge Protection: The board may include surge protection features to protect against voltage spikes and other electrical transients.

WOC has the largest stock of GE Speedtronic Gas Turbine Control System Replacement Parts. We can also repair your faulty boards. We can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is a Data Link Isolation Board?

A Data Link Isolation Board is a device used to isolate and protect sensitive data communication channels from potential electrical interference, such as electromagnetic interference and radio frequency interference.

What are the benefits of using a Data Link Isolation Board?

The benefits of using a Data Link Isolation Board include improved data transmission reliability and security, reduced electromagnetic interference, and protection against potential data breaches or hacking attempts.

What types of applications are Data Link Isolation Boards used in?

Data Link Isolation Boards are commonly used in industrial automation systems, process control systems, power distribution systems, and other applications where sensitive data communication channels must be protected from potential interference.
