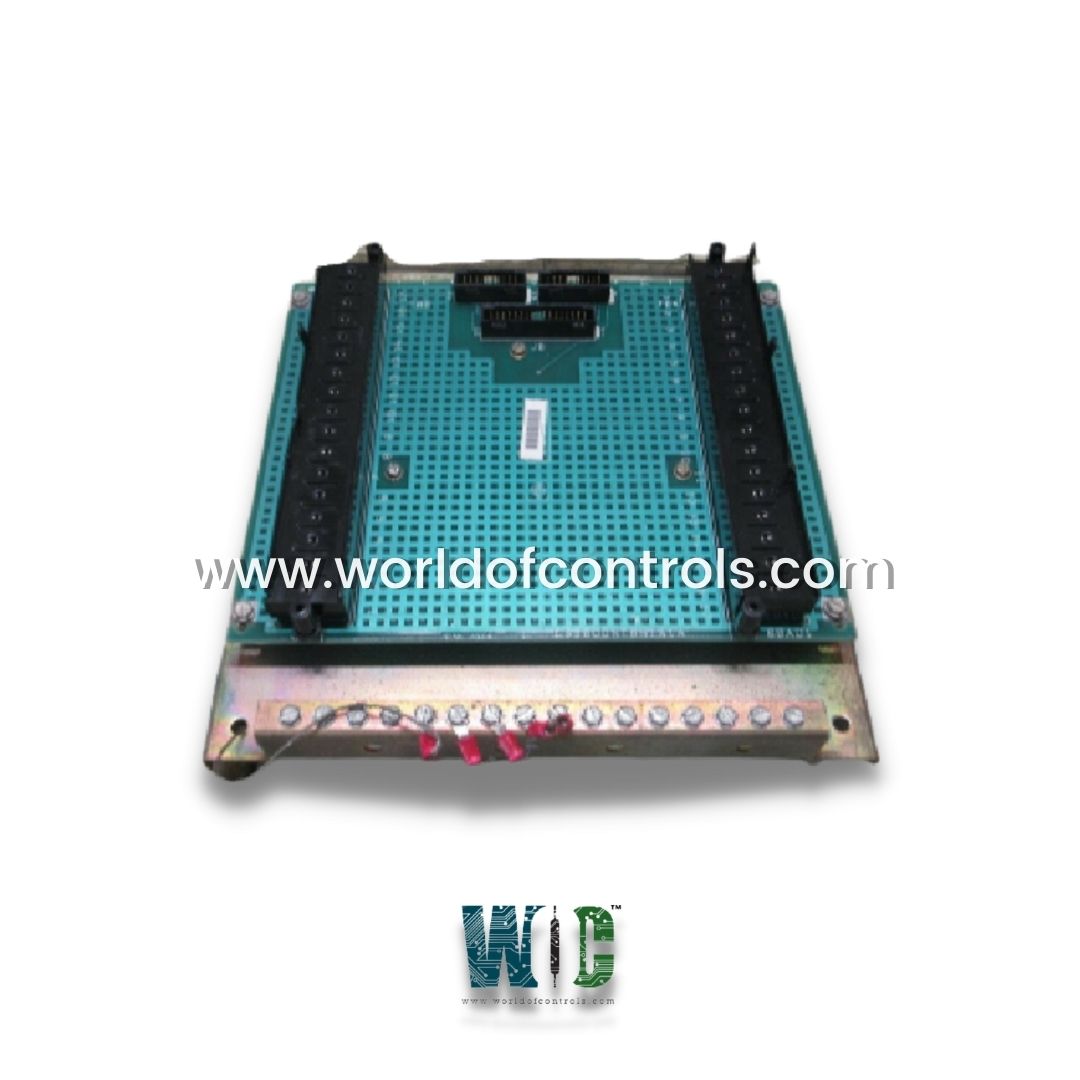

DS3800NTBH - Monitoring Control Analog I/O Module

SPECIFICATIONS:

Part No: DS3800NTBH
Manufacturer: General Electric
Product Type: Monitoring Control Analog I/O Module
Voltage Ranges: +/-25mV, +/-50mV, +/-100mV, +/-1V, +/-5V, +/-10V
Operating Mode: Simplex
Series: Mark IV
Availability: In Stock
Current Range: +/-20mA
Dimensions: 7.14 × 4 × 1.5 in
Operating Temperature: 0 to 50°C
Country of Origin: USA

FUNCTIONAL DESCRIPTION:

DS3800NTBH is a Monitoring Control Analog I/O Module manufactured and designed by General Electric and is part of the Mark IV Series used in GE Speedtronic gas turbine control systems. A Monitoring Control Analog I/O Module is a vital component in industrial control systems, particularly within environments that require precise monitoring and control of analog signals. These modules are used to interface between analog signals from physical sensors and digital control systems, providing crucial data acquisition, processing, and control functionalities. Below is a comprehensive overview of the Monitoring Control Analog I/O Module:

FEATURES:

Analog Inputs:

• Voltage/Current Inputs: Can handle various ranges such as 0-10V, ±10V, and 4-20mA, accommodating different types of sensors and transducers.
• High Resolution: Typically offers high-resolution analog-to-digital conversion (ADC) for accurate signal representation.
• Signal Conditioning: Includes features like filtering, isolation, and amplification to ensure signal integrity, even in noisy environments.

Analog Outputs:

• Voltage/Current Outputs: Generates precise analog signals (e.g., 0-10V, 4-20mA) to drive actuators, valves, and other output devices.
• Digital-to-Analog Conversion (DAC): Converts digital signals from the control system into analog signals for output.

Connectivity:

• Communication Protocols: Supports various industrial communication protocols such as Modbus, Profibus, and Ethernet/IP, allowing integration with PLCs (Programmable Logic Controllers), SCADA (Supervisory Control and Data Acquisition) systems, or DCS (Distributed Control Systems).
• Multiple I/O Channels: Provides numerous input and output channels to handle a wide range of sensors and actuators.

Configuration and Diagnostics:

• User-Friendly Software: Comes with software tools for easy configuration, calibration, and real-time monitoring.
• Diagnostic Capabilities: Offers real-time diagnostics to detect faults and ensure reliable operation.

FUNCTIONS:

Data Acquisition:

• Sensor Data Collection: Collects analog signals from various sensors (e.g., temperature, pressure, flow) and converts them into digital data for processing.

Signal Processing:

• Filtering and Scaling: Processes raw analog signals by filtering out noise, linearizing, and scaling the data to make it useful for control and monitoring purposes.

Control and Actuation:

• Actuator Control: Generates analog signals to control actuators based on digital commands from the control system, ensuring precise operation of industrial processes.

Monitoring and Feedback:

• Continuous Monitoring: Monitors system performance continuously and provides feedback to the control system for maintaining optimal operation.

Specific Use in Gas Turbine Control Systems:

• Data Acquisition from Sensors: Collects critical data such as turbine speed, exhaust temperature, and fuel flow.
• Control and Actuation: Sends precise control signals to actuators managing fuel valves, guide vanes, and other components, ensuring optimal turbine operation.
• Safety and Protection: Monitors parameters and triggers alarms or shutdowns in case of abnormal conditions, protecting the turbine from damage.
• Performance Optimization: Tracks performance metrics to optimize fuel efficiency and power output, and adjusts operating parameters dynamically.

WOC has the largest stock of GE Speedtronic Gas turbine control systems replacement parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

How does an Analog I/O Module improve system accuracy?

The module improves system accuracy through high-resolution analog-to-digital conversion (ADC) and digital-to-analog conversion (DAC), ensuring precise representation and control of analog signals. Signal conditioning features like filtering and isolation also help maintain signal integrity.

How can I configure and diagnose an Analog I/O Module?

Most Analog I/O Modules come with user-friendly software tools for configuration and calibration. These tools also provide real-time diagnostics to monitor the module's performance and detect any issues, making it easy to maintain optimal operation.

Are Analog I/O Modules scalable?

Yes, these modules are designed to be scalable. Their modular design allows for easy expansion to accommodate growing system requirements, making them suitable for various applications and industries.
