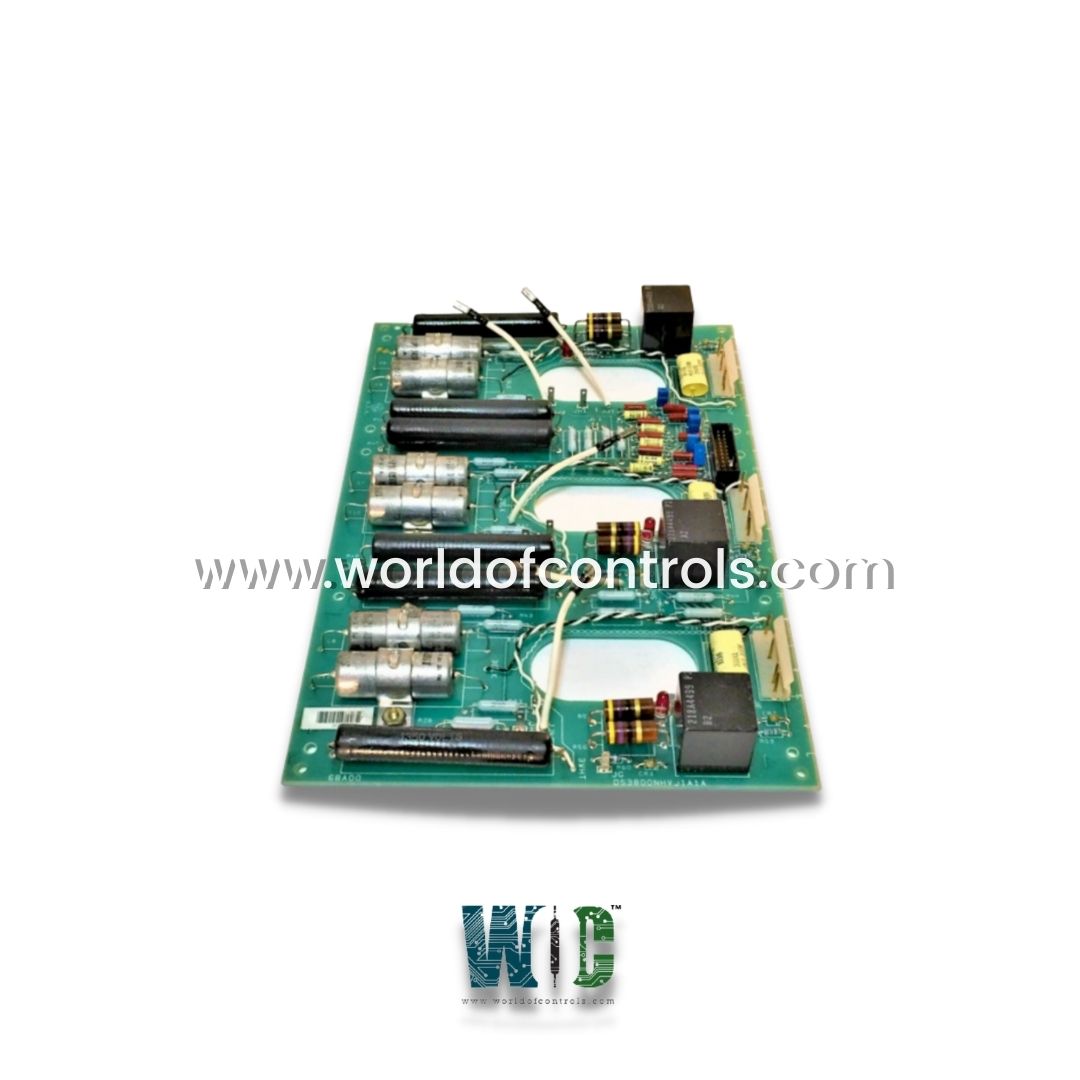

DS3800NHVJ - High Voltage Card

SPECIFICATIONS

Part Number: DS3800NHVJ
Manufacturer: General Electric
Series: Mark IV
Product Type: High Voltage Card
Power Requirements: +5 V dc, 8 A
Number of relay channels: 16
Power supply voltage: 24 V dc
Operating temperature: -40 to +65 degrees Celsius
Size: 15.9 cm high x 17.8 cm
Weight: 0.9kg
Repair: 3-7 Day
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

DS3800NHVJ is a High Voltage Card developed by GE. It is a part of Mark IV control system. The module was developed for compatibility with automated manufacturing and testing. Although it includes an increased number of electronic functions, analysis suggests a lower failure rate compared to earlier control systems. Due to its fault-tolerant architecture, fewer than one in ten failures are expected to lead to a forced outage.

Components and Features

• High Voltage Handling: This module is specifically engineered to manage high voltage signals, making it suitable for applications where electrical isolation, voltage control, or conversion is required. It ensures safe and efficient high-voltage interfacing within the turbine control framework.
• Relays: The board includes electromechanical relays, which act as critical switching devices. These relays help control various high voltage circuits, providing both automation and safety within the system.
• LED Indicators: Equipped with LED indicators, provide visual status feedback during operation. These LEDs aid in monitoring the board's functionality and help technicians quickly identify fault conditions or verify normal operation.

WOC is happy to assist you with any of your automation requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is DS3800NHVJ?
It is a high-voltage card developed by General Electrics.

What is the main function of the module?
It is designed to handle and manage high-voltage signals, ensuring electrical isolation, voltage control, and safe integration within the turbine control system.

How do the relays function on this board?
The onboard relays serve as switching devices to control high-voltage circuits, supporting automation and safety within the system.

What is the purpose of the LED indicators?
LED indicators provide visual status updates during operation, helping technicians monitor performance and quickly identify any fault conditions.
