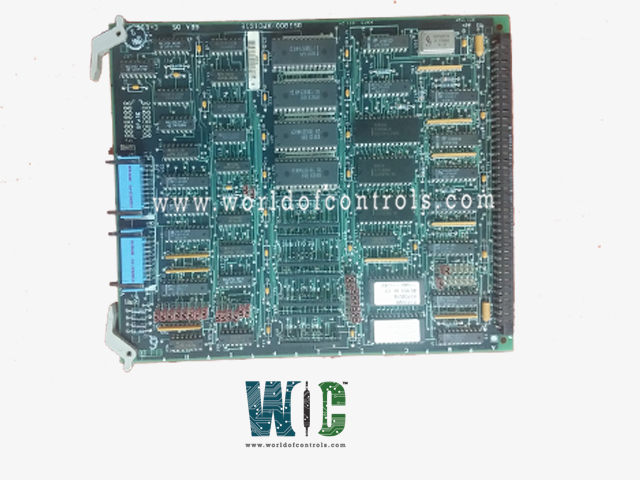

DS3800HXPD - Microprocessor Expander Board

SPECIFICATIONS

Part Number: DS3800HXPD
Manufacturer: General Electric
Series: Mark IV
Product Type: Microprocessor Expander Board
Operating temperature: -35 to 65 degrees Celsius
Size: 8.25 cm high x 4.15 cm
Repair: 3-7 Day
Weight: 2 lbs
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

DS3800HXPD is a Microprocessor Expander Board manufactured and designed by General Electrics. It is a part of the Mark IV Control System. A microprocessor expander board is a device that is used to expand the functionality of a microprocessor-based system. In the context of turbine control systems, a microprocessor expander board can be used to add additional input/output (I/O) capabilities to the control system. Turbine control systems typically use microprocessors to control the operation of the turbine. These microprocessors have a limited number of I/O pins, which can limit the number of sensors and actuators that can be connected to the control system. A microprocessor expander board can be used to add additional I/O capabilities to the system, allowing for more sensors and actuators to be connected.

For example, a microprocessor expander board could be used to add additional temperature sensors to the turbine control system. This would allow the control system to monitor the temperature at multiple points in the turbine, providing more accurate temperature readings and allowing for better control of the turbine. Microprocessor expander boards can also be used to add additional processing power to the control system. This can be useful in situations where the control system needs to perform complex calculations or algorithms. By adding additional processing power, the control system can perform these calculations more quickly and efficiently.

Features

• I/O Expansion: The primary feature of a microprocessor expander board is the ability to expand the number of input/output pins available to the microprocessor. This allows for more sensors and actuators to be connected to the control system, providing greater flexibility in the design of the control system.
• Processing Power: Some microprocessor expander boards also include additional processing power to the control system. This can be in the form of a co-processor or a more powerful microcontroller. This additional processing power can be used to perform complex calculations or algorithms, improving the overall performance of the control system.
• Communication Interfaces: Microprocessor expander boards often include additional communication interfaces to allow for easy integration with other devices in the control system. This can include interfaces such as SPI, I2C, UART, and Ethernet.
• Analog and Digital I/O: Microprocessor expander boards may also include both analog and digital I/O capabilities. This allows for a wider range of sensors and actuators to be connected to the control system, including those that require analog inputs or outputs.
• Compatibility: Microprocessor expander boards are often designed to be compatible with a range of microprocessors and development platforms, making it easy to integrate them into existing control systems.

WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is DS3800HXPD?
It is a Microprocessor Expander Board manufactured and designed by General Electric.

What is a microprocessor expander board used for?
It is used to expand the functionality of a microprocessor-based system. In the context of turbine control systems, it can add additional input/output (I/O) capabilities to the control system.

How can a microprocessor expander board improve turbine control systems?
It can improve turbine control systems by enabling the connection of more sensors and actuators, which leads to better monitoring, control, and accuracy. It can also enhance processing capabilities for performing complex calculations or algorithms more efficiently.

What communication interfaces are typically included?
Common communication interfaces found in microprocessor expander boards include SPI (Serial Peripheral Interface), I2C (Inter-Integrated Circuit), UART (Universal Asynchronous Receiver-Transmitter), and Ethernet.
